Reliable Total Chlorine Monitoring for Disinfection Processes

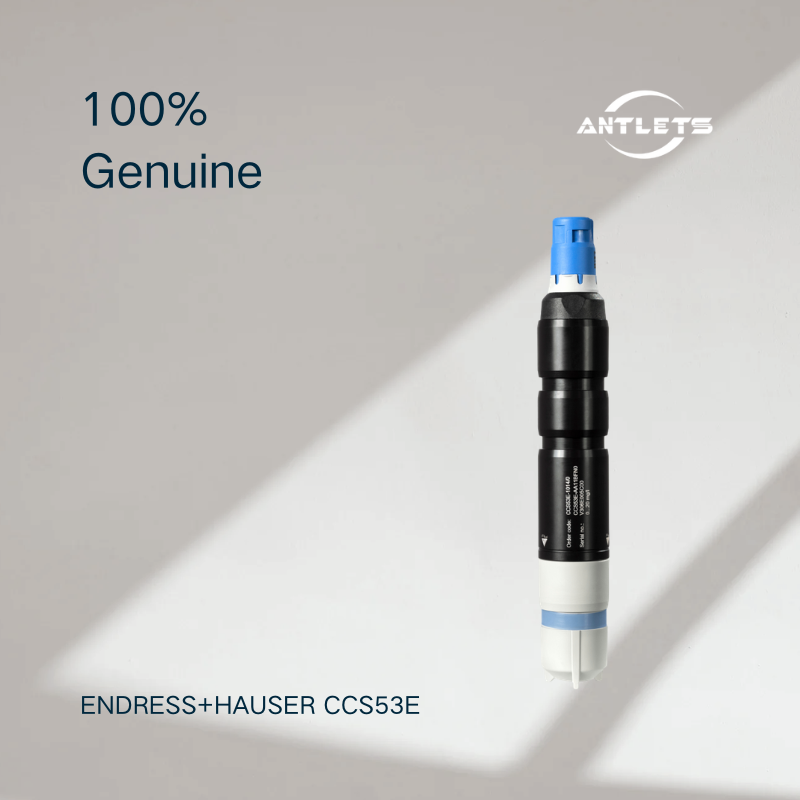

The Memosens CCS53E is designed for applications where monitoring total chlorine levels is important for maintaining effective disinfection and protecting water quality.
Total chlorine includes both free chlorine and bound chlorine components, making it a useful indicator of residual disinfectant concentration in process water and discharge applications.
Digital Memosens Technology for Easier Maintenance
The CCS53E uses Memosens 2.0 technology, which stores sensor data and calibration information digitally inside the sensor.
This allows easier sensor replacement, simplified commissioning and improved measurement data management during operation.
Stable Amperometric Measurement Principle
The sensor uses a closed membrane-covered amperometric two-electrode measuring cell.
All chlorine components are reduced at the working electrode, generating a measurement signal related to total chlorine concentration. The measurement is almost independent of pH changes, helping maintain stable performance in different water conditions.
Designed for Water Treatment and Industrial Applications
The CCS53E is suitable for applications where continuous chlorine monitoring supports safe and efficient operation.
Typical applications include:
Wastewater treatment plants
Drinking water disinfection
Industrial process water
Cooling tower water monitoring
Food and beverage production water
Reverse osmosis systems
Pool water treatment
Flexible Integration with Liquiline Systems
Combined with compatible Liquiline transmitters, the CCS53E can be integrated with other liquid analysis parameters such as pH and ORP.
This helps users build complete monitoring solutions according to different water treatment requirements.
Key Features
Total chlorine sensor for continuous disinfection monitoring
Measures free chlorine + bound chlorine (chloramines)
Memosens 2.0 digital technology
Amperometric measurement principle
Measuring range:
0–5 mg/l total chlorine
0–20 mg/l total chlorine
Process temperature: 0–55°C
Maximum pressure:
1 bar relative
Max. 2 bar
Closed membrane-covered two-electrode measuring cell
Integrated temperature sensor
Almost pH-independent measurement
Compatible with Liquiline transmitters
Suitable for water treatment and industrial utility applications
Typical Applications
Wastewater Treatment
Monitoring chlorine concentration at wastewater outlets and reuse water systems to support disinfection control.
Drinking Water Treatment
Maintaining suitable disinfectant levels while avoiding excessive chlorine dosing.
Industrial Utility Water
Monitoring chlorine levels in cooling systems and process water to prevent microbial growth and protect equipment.
Food and Beverage Industry
Supporting hygienic water management, cleaning processes and reverse osmosis applications.
Frequently Asked Questions
What is the Endress+Hauser Memosens CCS53E used for?
The CCS53E is a digital sensor used for measuring total chlorine in water and process applications.
What is the difference between CCS53E and CCS51E?
The main difference is the measured parameter:
CCS51E → Free Chlorine Sensor
Measures free chlorine (HOCl)
CCS53E → Total Chlorine Sensor
Measures free chlorine + bound chlorine (chloramines)
What measurement principle does CCS53E use?
The CCS53E uses an amperometric measurement principle with a membrane-covered measuring cell.
What is the measuring range of CCS53E?
The available measuring ranges are:
0–5 mg/l total chlorine
0–20 mg/l total chlorine
Which industries use CCS53E?
Typical applications include wastewater treatment, drinking water, industrial utilities, food and beverage production and pool water monitoring.
Does CCS53E require a Liquiline transmitter?
Yes. The sensor is designed to work with compatible Endress+Hauser Liquiline transmitters using Memosens communication.
