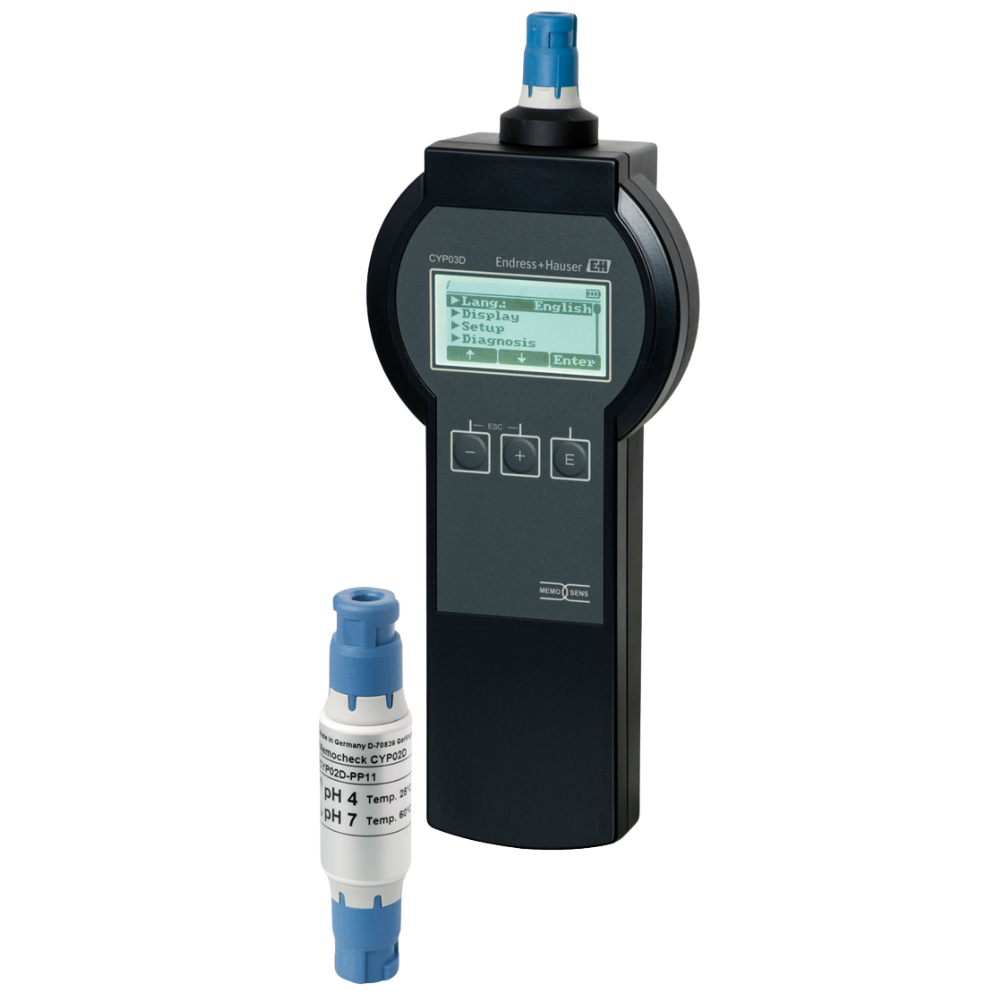

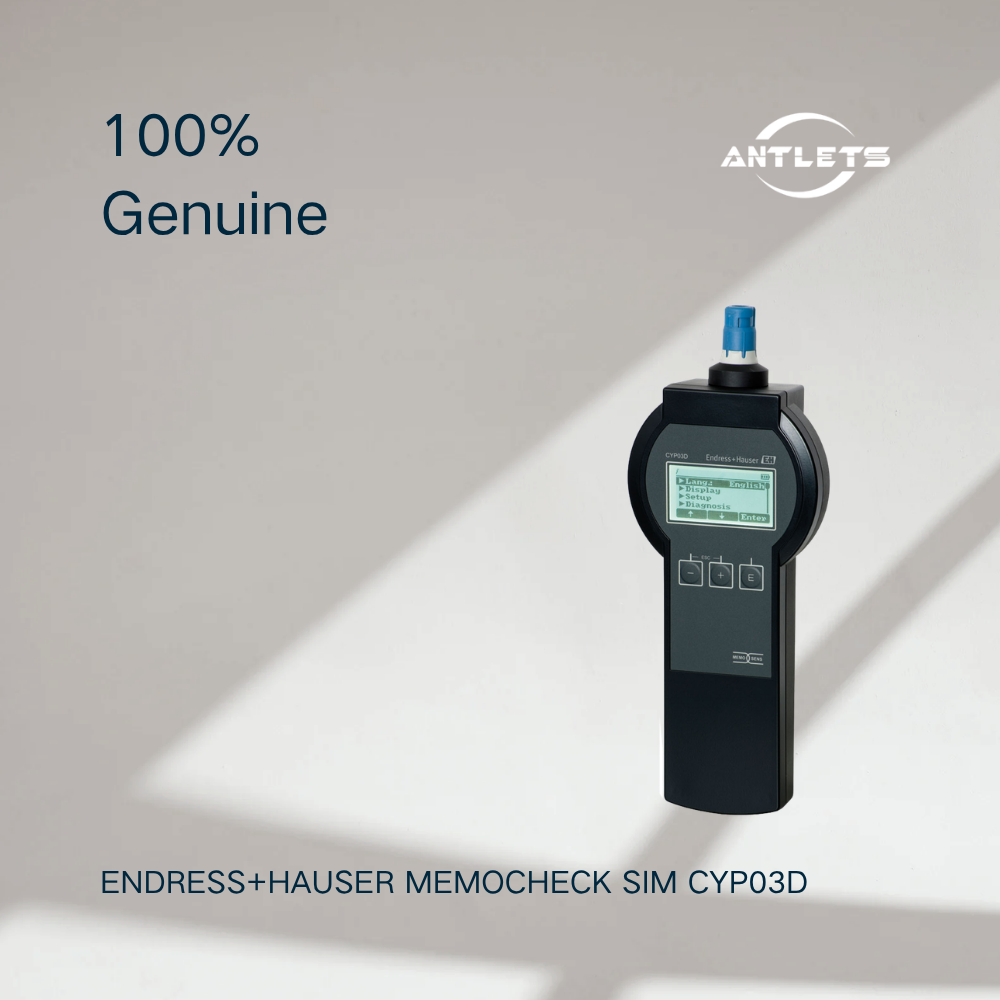

The Memocheck Sim CYP03D is a digital service and qualification tool for Memosens measuring points. Instead of connecting a real sensor, the tool is temporarily connected through a Memosens cable with inductive coupling and simulates configurable measurement values.
This allows the complete digital signal path to be checked, from the cable coupling through the transmitter and onward to the process control system. The tool can simulate values corresponding to the range of the selected sensor and can also generate configurable value ramps for functional testing.
The CYP03D is intended for plant qualification, installation and commissioning, and troubleshooting. Endress+Hauser also states that an optional quality certificate and traceable calibration certificate are available for controlled environments and measurement-point qualification.
Key Features
- Freely configurable measured values and value ramps for flexible functional testing
- Complete Memosens measuring-chain verification from cable coupling to process control system
- Supports multiple parameters including pH, ORP, conductivity, dissolved oxygen, chlorine, turbidity, nitrate and SAC
- Temporary connection through a Memosens cable with inductive coupling
- Battery-powered handheld design for field service and commissioning work
- Measuring ranges correspond to the simulated sensor
- IP65 ingress protection
- Ambient operating temperature of -20 to 50 °C
- Handheld dimensions of approximately 94 × 236 × 25–40 mm, depending on configuration
- Hazardous-area approvals are available depending on the measuring principle/configuration, including ATEX, IECEx and CSA options
- Optional quality and traceable calibration certificates are available for qualification applications
Suitable Applications
Installation and Commissioning
Use the CYP03D to verify that a newly installed Memosens measuring chain is transmitting digital measurement data correctly before putting the system into operation.
Troubleshooting
The tool can help determine whether a problem is associated with the sensor, cable connection, transmitter or downstream signal transmission by providing a known simulated measurement signal.
Plant Qualification
For applications requiring documented verification, the CYP03D can be used as part of measurement-point qualification. Optional quality and traceable calibration certificates are available on request.
Liquid Analysis Systems
The multi-parameter capability makes the tool suitable for Memosens systems used for pH, ORP, conductivity, oxygen, disinfection, turbidity and other liquid analysis measurements.
Selection Notes
The CYP03D should be selected when the requirement is to test or qualify the digital Memosens measurement chain, rather than to perform actual process measurement.
It is particularly useful when commissioning or troubleshooting systems where the signal path needs to be checked independently of the process sensor.
For qualification applications, confirm whether the project requires the optional quality certificate or traceable calibration certificate.
Because the available simulated parameters and hazardous-area approvals can depend on the configured version, the exact CYP03D configuration should be confirmed against the required measurement parameter and site classification before ordering.
FAQ
What is the Endress+Hauser Memocheck Sim CYP03D?
It is a digital service and qualification tool used to simulate measurement values and check Memosens measuring points. It can verify digital signal transmission through the complete measurement chain.
What parameters can the CYP03D simulate?
The official product information lists pH, ORP, conductivity, dissolved oxygen, chlorine, turbidity, nitrate and SAC among the supported parameters.
Does the CYP03D replace a Memosens sensor?
No. It is a testing and qualification tool, not a process sensor. It is temporarily connected in place of the sensor to verify the measuring chain.
Can the CYP03D be used for troubleshooting?
Yes. Endress+Hauser specifically lists troubleshooting as one of its intended applications, together with installation, commissioning and plant qualification.
Can it be used for hazardous-area applications?
The official specifications list hazardous-area approvals including ATEX, IECEx and CSA, with the exact approval depending on the configuration and measuring principle.
Is a calibration certificate available?
Yes. Endress+Hauser states that quality certificates and traceable calibration certificates are available on request, which is relevant when the tool is used for controlled environments or measurement-point qualification.
What is the operating temperature of the CYP03D?
The official product specifications give an ambient temperature range of -20 to 50 °C (-4 to 120 °F).
