Product Overview

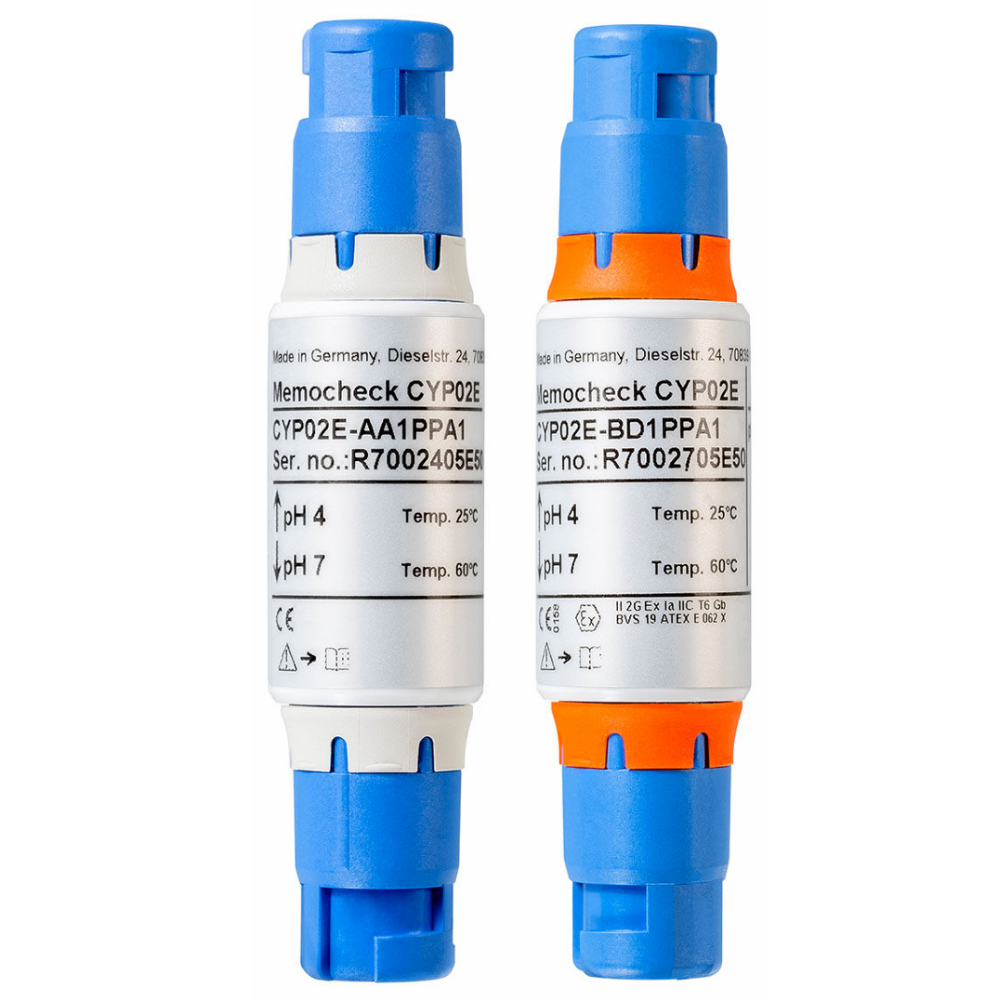

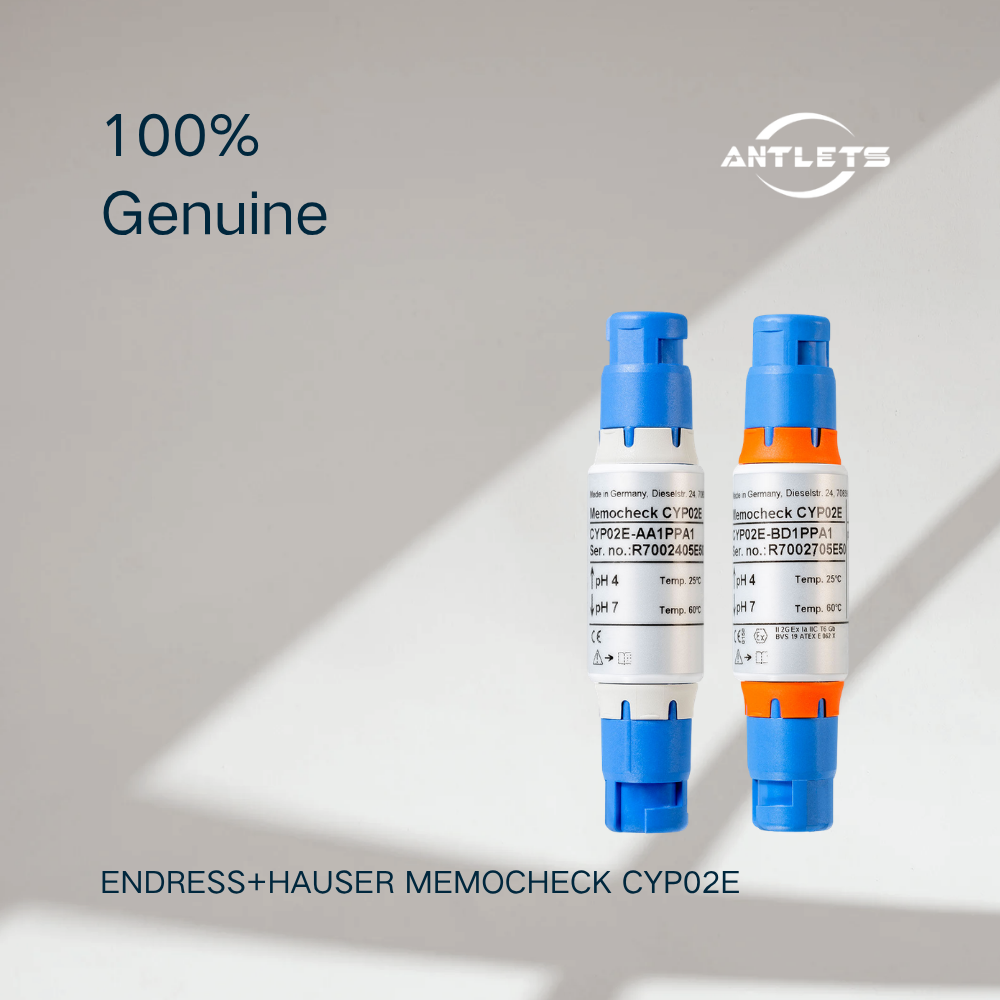

Endress+Hauser Memocheck CYP02E is a service tool for fast and easy on-site verification of measuring systems based on Memosens technology. Instead of connecting the actual sensor, the Memocheck is connected to the sensor cable and simulates predefined sensor statuses. This allows technicians to check the complete signal path from the cable coupling through the transmitter and onward to the process control system.
The CYP02E is particularly useful when commissioning new measuring points or troubleshooting existing installations. Because the simulated data cannot be overwritten, it provides a controlled reference for checking signal transmission and installation correctness.
Key Features
• Digital service tool for Memosens measuring systems
• Measured value simulator for Memosens measuring points
• Double plug-in head with two predefined sensor statuses
• Checks the complete measuring chain
• Simulates pH measurement values
• Simulates a second parameter such as ORP, dissolved oxygen, conductivity or chlorine
• Suitable for installation checks
• Suitable for commissioning checks
• Suitable for troubleshooting
• Simulated data cannot be overwritten
• Supports quick on-site verification
• Available for non-hazardous and hazardous-area applications depending on version
• Suitable for all industries
Suitable Applications
• Memosens measuring point installation
• Measuring system commissioning
• Troubleshooting of Memosens measurement chains
• Verification of signal transmission
• Checking sensor cable and transmitter connections
• pH measuring systems
• ORP / redox measuring systems
• Dissolved oxygen measuring systems
• Conductivity measuring systems
• Chlorine measurement systems
• On-site service and maintenance
The CYP02E is designed for quick checks rather than continuous measurement. It is connected in place of the sensor to verify that the measuring chain and signal transmission are functioning correctly.
Selection Notes
CYP02E should be selected when the requirement is to verify a Memosens measuring chain, rather than to perform normal process measurement. It is a service and diagnostic tool that simulates sensor behavior for system checks.
Before ordering, confirm the required CYP02E version and hazardous-area approval if the device will be used in an explosion-hazardous area. Endress+Hauser currently lists separate Ex safety documentation for CYP02E, including versions for specific hazardous-area applications.
For troubleshooting, the tool can help determine whether an issue is located in the sensor itself or elsewhere in the measurement chain, such as the cable connection, transmitter or process control system. It should therefore be considered a commissioning and diagnostic accessory for Memosens installations.
FAQ
What is the Endress+Hauser CYP02E used for?
CYP02E is used to quickly check the correct functioning of Memosens measuring systems during installation, commissioning and troubleshooting.
Is CYP02E a sensor?
No. It is a digital service tool and measured value simulator that is connected instead of the actual Memosens sensor.
What parameters can CYP02E simulate?
It can simulate pH and a second parameter such as ORP, dissolved oxygen, conductivity or chlorine, depending on the selected configuration.
How does CYP02E check the measuring chain?
The tool replaces the sensor and simulates predefined sensor statuses. This allows the signal path from the cable coupling through the measuring system to the process control system to be checked.
When should CYP02E be used?
It can be used during installation, commissioning and troubleshooting of Memosens measuring systems.
Can CYP02E be used in hazardous areas?
Hazardous-area versions and Ex safety documentation are available, but the exact approval depends on the selected version. The current Endress+Hauser documentation includes Ex safety instructions for CYP02E.
Can the simulated data be changed?
No. Endress+Hauser describes the simulated data as manipulation-proof, meaning the simulated values cannot be overwritten.
Is CYP02E suitable for all industries?
Endress+Hauser states that Memocheck CYP02E is suitable for all industries.
