Product Overview

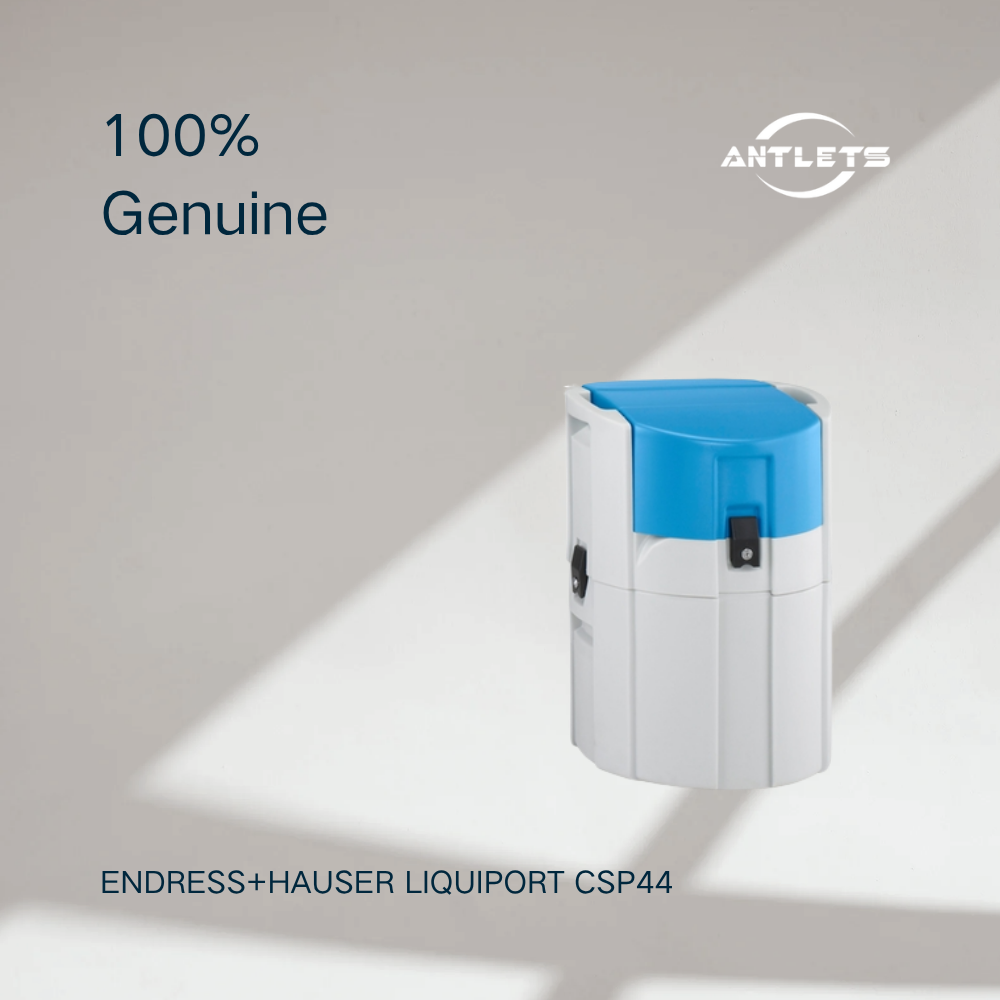

Endress+Hauser Liquiport CSP44 is a portable automatic sampler for liquid media. It is designed to automatically collect samples from wastewater treatment plants, sewage networks, surface water and industrial processes. Its portable design allows sampling at locations where a permanent sampling station may not be practical.

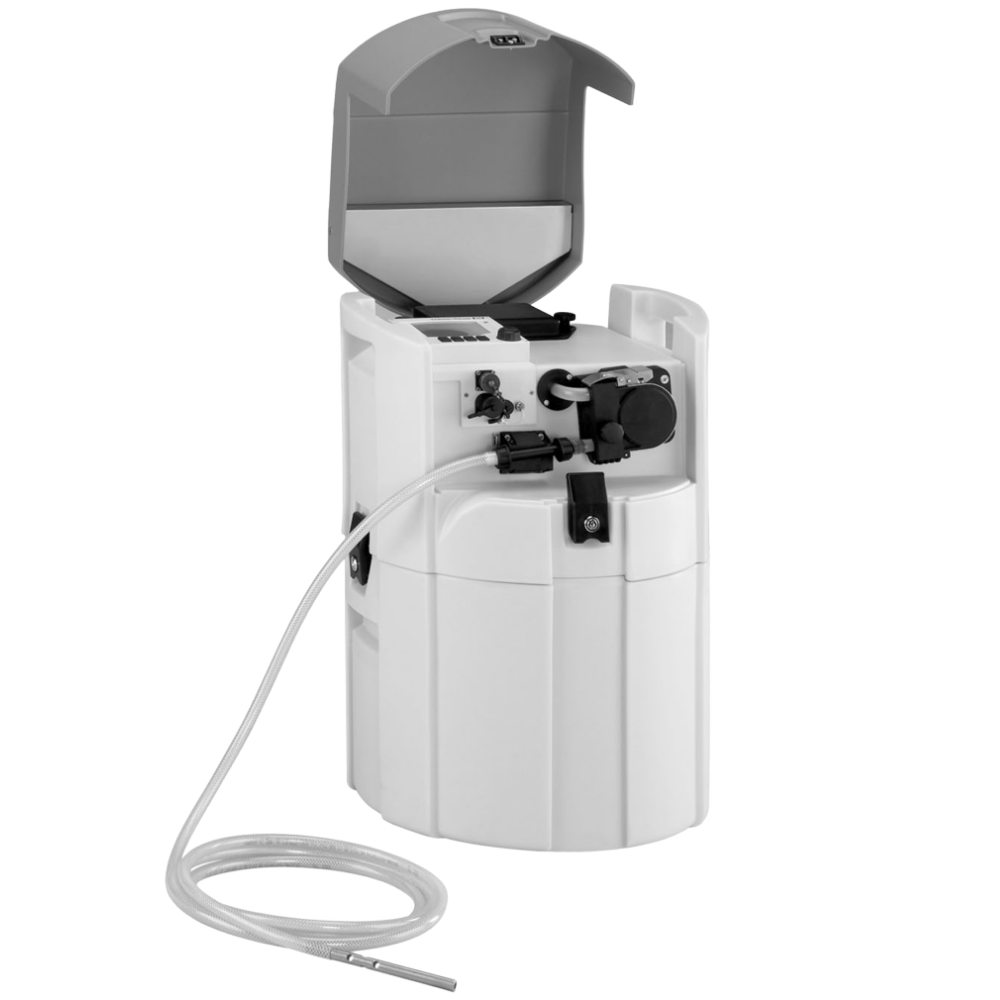

The CSP44 uses a peristaltic pump for sample collection and provides menu-guided sample programming. Its two-part construction facilitates transport, while the battery option allows operation without a permanent electrical supply. The sampler can also be upgraded with digital Memosens sensors to create a more comprehensive measuring station.
Key Features
• Portable automatic sampler for liquid media
• Automatic sampling for water, wastewater and industrial processes
• Peristaltic pump dosing system
• Maximum suction height: 8 m
• Plastic LLDPE cabinet
• Menu-guided sample programming
• Two-part design for easier transportation
• Battery-powered operation available
• 90 to 260 VAC charging/operation
• 24 VDC battery power supply
• Integrated Liquiline transmitter
• Two analog galvanically isolated inputs
• Two binary galvanically isolated inputs
• Two binary galvanically isolated outputs
• Integrated data logger with logbook and sampling statistics
• Passive cooling with crushed ice or freezer cartridge
• Sample distribution option available
• Optional Memosens digital sensor connection
• Weight: 19 kg with battery
• Dimensions: 480 × 675 mm (W × H)
Suitable Applications
• Municipal wastewater treatment plants
• Industrial wastewater treatment
• Wastewater self-monitoring
• Wastewater process monitoring
• Monitoring of indirect dischargers
• Sewage system monitoring
• Surface water monitoring
• Water protection and water quality monitoring
• Monitoring of direct and indirect dischargers
• Laboratories and hydrological institutions
• Industrial process monitoring
Selection Notes
CSP44 should be selected when automatic and portable liquid sampling is required. The sampling location, required suction height, power supply, cooling method and sample distribution arrangement should be considered when configuring the system.
The maximum suction height is 8 m, while the system can operate from 90 to 260 VAC or from a 24 VDC battery. For applications requiring simultaneous liquid analysis, the optional Memosens connection allows compatible digital sensors to be integrated into the system.
For replacement orders, check the complete configuration rather than ordering only by the CSP44 product name. Important configuration points include the sampling arrangement, bottle/distribution configuration, cooling method, power supply, sensor options and required accessories.
FAQ
What is the Endress+Hauser CSP44 used for?
CSP44 is used for automatic sampling of water, wastewater and industrial process liquids.
Is CSP44 portable?
Yes. It is designed as a portable automatic sampler, and its two-part construction facilitates transportation.
What is the maximum suction height of CSP44?
The specified maximum suction height is 8 m (26.25 ft).
Does CSP44 require a permanent power supply?
No. CSP44 can operate from 90 to 260 VAC or a 24 VDC battery, allowing sampling at locations without a permanent electrical supply.
What type of pump does CSP44 use?
The sampling system uses a peristaltic pump.
Can CSP44 perform liquid analysis as well as sampling?
Yes. The system can be configured with an optional connection for digital Memosens sensors, allowing it to be upgraded into a more comprehensive measuring station.
What is the weight of CSP44?
The official specification lists 19 kg including the battery.
What are the dimensions of CSP44?
The listed dimensions are 480 × 675 mm (W × H).
