Product Overview

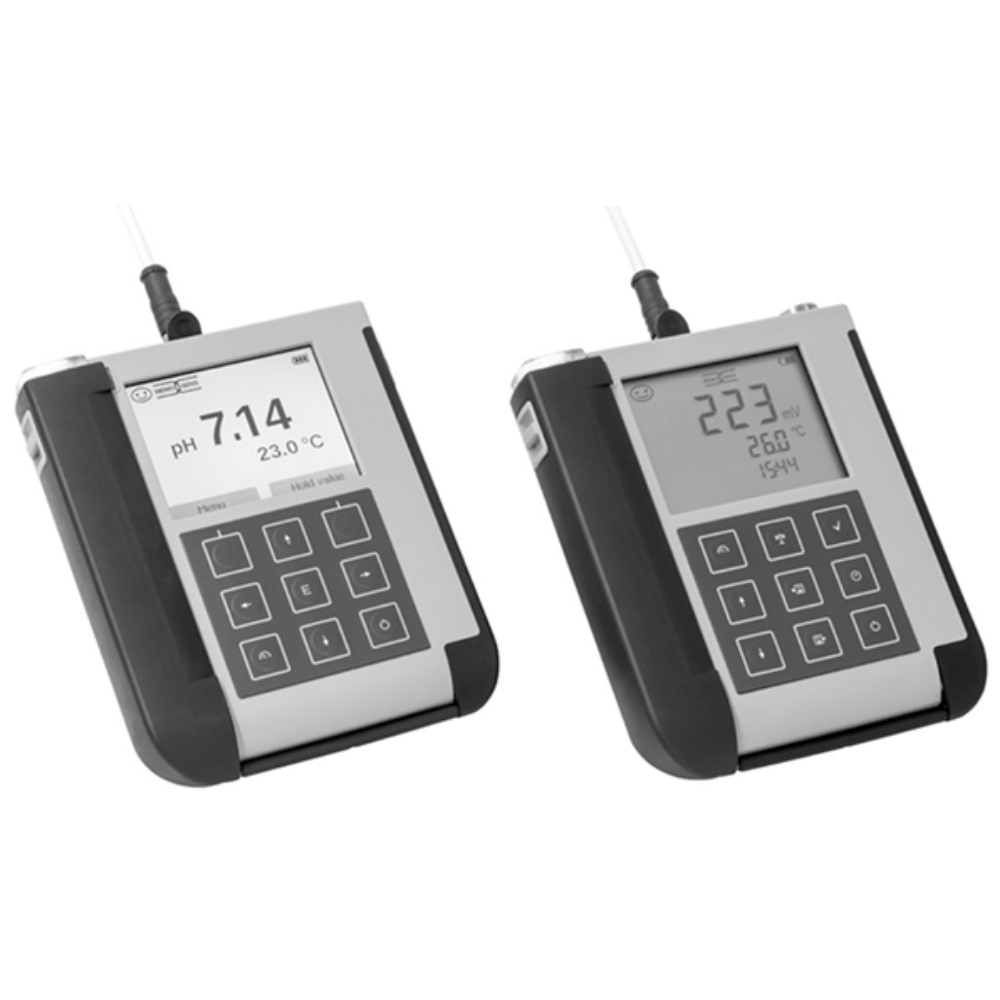

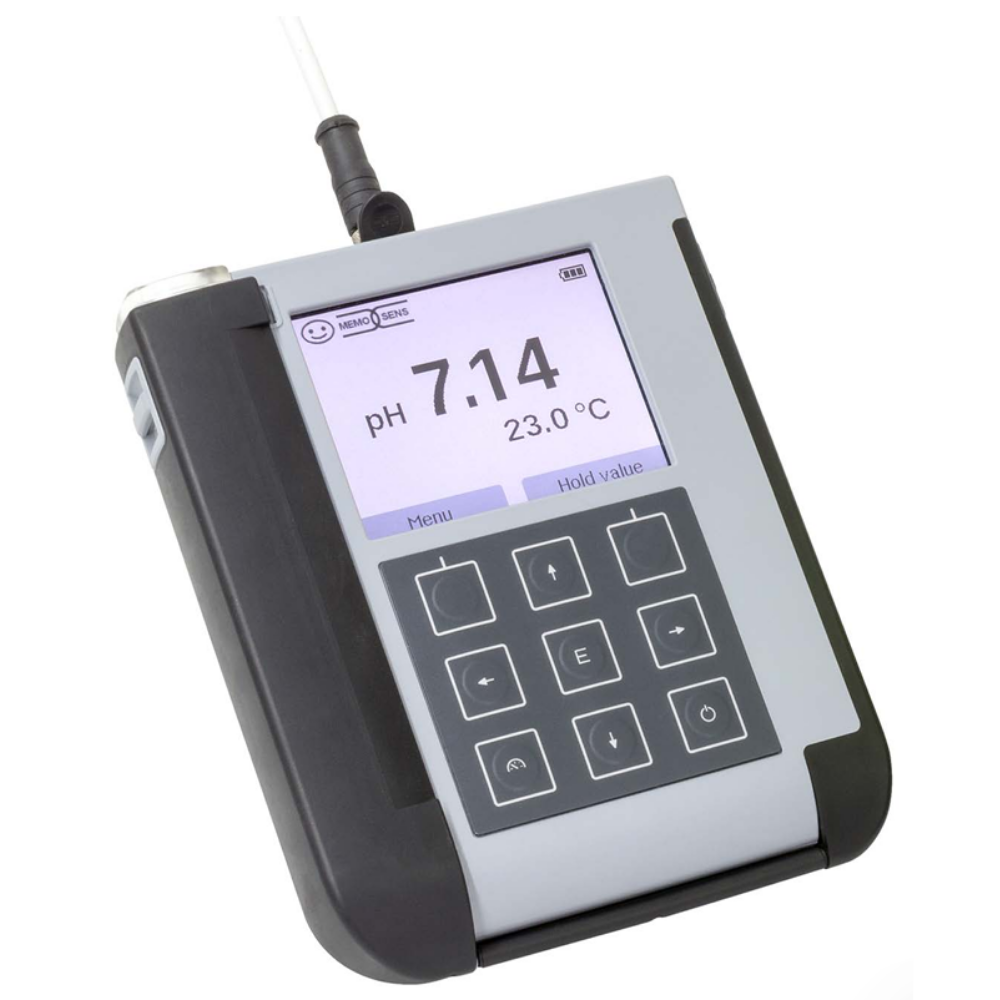

Endress+Hauser Liquiline To Go CYM290 is a portable multiparameter handheld for liquid analysis in field and laboratory applications. It uses the same Memosens sensor technology as compatible process measurement systems, allowing measurements from process points, grab samples and locations without permanently installed online measurement.
The instrument supports pH/ORP, conductivity and conductivity trace, oxygen and oxygen trace, and temperature measurements. Its robust shock-proof housing with IP66/67 protection is designed for mobile process control, while pre-calibrated Memosens sensors enable quick parameter changes through hot plug and play operation.
Key Features
• Multiparameter handheld for liquid analysis
• Measurement of pH/ORP
• Conductivity and conductivity trace measurement
• Oxygen and oxygen trace measurement
• Temperature measurement
• M8 contact for Memosens lowpower protocol
• One-channel instrument
• Compatible with Memosens sensors
• Hot plug and play with pre-calibrated Memosens sensors
• IP66/67 ingress protection
• Shock-proof housing
• Housing material: PA 12, GF30 + TP
• Approximate dimensions: 132 × 156 × 30 mm
• Portable design for field and laboratory use
• No Ex certification according to the current product specification
Suitable Applications
• Process measuring loop checks
• Grab sample measurement
• On-site liquid analysis
• Laboratory sample measurement
• Process points without permanent online measurement
• pH/ORP measurement
• Conductivity measurement
• Dissolved oxygen measurement
• Temperature measurement
• Routine liquid analysis across industrial applications
Selection Notes
CYM290 is suitable when you need portable measurements using Memosens sensors that are also used in the process. This allows grab sample and field measurements to use the same sensor technology as the process installation, helping maintain consistency between different measurement locations.
When ordering, confirm the required Memosens sensor type and accessories for the parameter you need to measure. CYM290 itself is the one-channel handheld instrument, while the appropriate pH/ORP, conductivity or oxygen sensor is selected separately according to the application.
For hazardous-area applications, pay particular attention to the instrument version. The current CYM290 product specification lists no Ex certification.
FAQ
What can the Endress+Hauser CYM290 measure?
CYM290 can be used for pH/ORP, conductivity, conductivity trace, oxygen, oxygen trace and temperature measurement with compatible Memosens sensors.
Is CYM290 a portable instrument?
Yes. It is designed as a portable handheld instrument for field and laboratory use.
What type of sensors does CYM290 use?
CYM290 uses compatible Memosens sensors through an M8 contact for the Memosens lowpower protocol.
Can CYM290 be used for grab samples?
Yes. Endress+Hauser specifically lists grab sample measurements both on-site and in the laboratory as applications.
Can CYM290 measure different parameters?
Yes. It is a multiparameter handheld and can be used for pH/ORP, conductivity, oxygen and temperature by connecting the corresponding Memosens sensor.
What is the ingress protection rating of CYM290?
The current specification lists IP66/67.
What are the dimensions of CYM290?
The approximate dimensions are 132 × 156 × 30 mm.
Is CYM290 suitable for hazardous areas?
The current product specification lists no Ex certification for CYM290.
