Reliable Ammonium Monitoring for Wastewater Processes

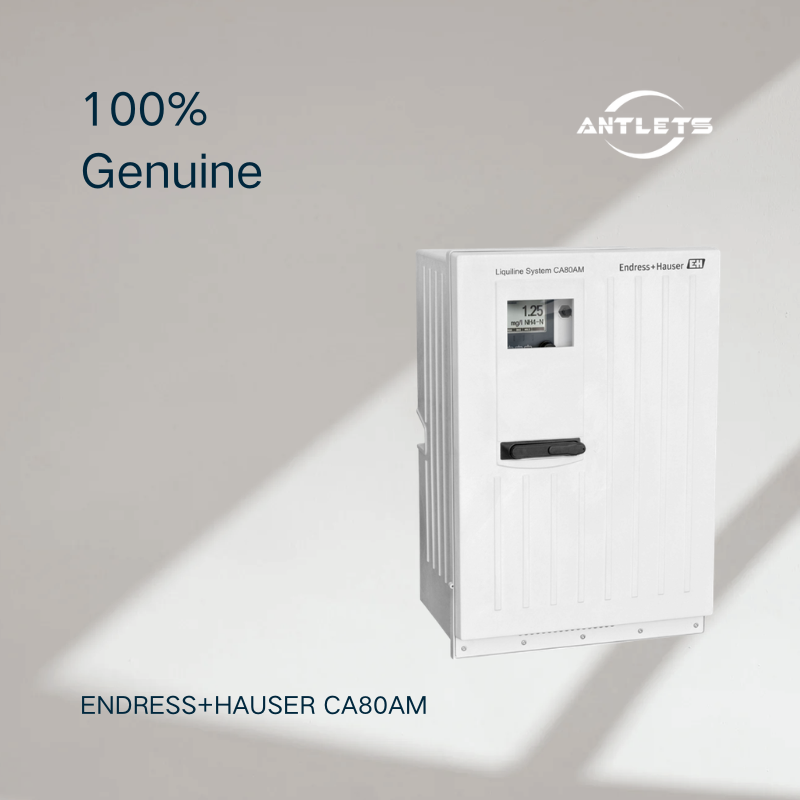

The Liquiline System CA80AM is designed for applications where continuous ammonium monitoring is important for maintaining stable wastewater treatment performance.

Instead of relying only on laboratory sampling, the analyzer provides regular online measurement data, helping operators understand process conditions and optimize treatment performance.

High-Precision Colorimetric Measurement

The CA80AM uses the standardized indophenol blue colorimetric method according to recognized standards including ISO 7150-1, DIN 38406-5 and GB 7481-87.

This proven measurement principle provides reliable ammonium analysis for demanding wastewater monitoring applications.

Designed for Municipal and Industrial Wastewater

The analyzer is mainly used in wastewater treatment processes where ammonium levels directly influence biological treatment efficiency.

Typical monitoring points include:

•
  Wastewater plant inlet

•
  Biological aeration basins

•
  Treatment plant outlet

•
  Industrial wastewater treatment processes


Reduce Maintenance with Automatic Functions

The CA80AM includes automatic calibration and cleaning functions, helping reduce manual maintenance work and improve measurement availability.

Optional cooling modules can extend reagent lifetime, while configurable measuring, cleaning and calibration intervals allow adaptation to different process requirements.

Flexible Integration with Liquiline Platform

As part of the Liquiline analysis platform, the CA80AM can be integrated into complete measuring stations and combined with additional digital sensors using Memosens technology.

This modular approach allows users to expand measurement capabilities according to future process needs.

Support Process Optimization and Compliance

Continuous ammonium monitoring helps operators optimize biological treatment processes and provides measurement records for wastewater quality documentation.

The analyzer also supports remote access options through digital communication interfaces depending on configuration.

Key Features

•
  Online ammonium analyzer for water and wastewater applications

•
  High-precision colorimetric measurement

•
  Measurement principle based on indophenol blue method

•
  Measuring range:


  0.05–20 mg/l NH4-N


  0.5–50 mg/l NH4-N


  1–100 mg/l NH4-N


  Up to 10–1000 mg/l NH4-N with dilution option



•
  Process temperature 4–40°C

•
  Automatic calibration and cleaning

•
  Low reagent consumption

•
  Optional cooling module for longer reagent lifetime

•
  Compatible with Liquiline platform

•
  Optional digital communication:


  Webserver


  Modbus


  Ethernet/IP


  PROFIBUS DP



•
  Suitable for municipal and industrial wastewater treatment


Typical Applications

Municipal Wastewater Treatment

Monitoring ammonium concentration at critical points such as plant inlet, biological treatment stages and final outlet.

Industrial Wastewater Treatment

Supporting process control where ammonium removal efficiency needs continuous monitoring.

Aeration Basin Optimization

Providing real-time ammonium information to help optimize biological treatment processes.

Regulatory Monitoring

Generating measurement data for wastewater discharge documentation and compliance requirements.

Frequently Asked Questions

What is the Endress+Hauser Liquiline System CA80AM?

The CA80AM is an online ammonium analyzer designed for continuous NH4-N measurement in water and wastewater treatment applications.

Is CA80AM a sensor?

No. The CA80AM is a complete analyzer system, not a standalone sensor. It uses a colorimetric measuring principle with reagents for ammonium analysis.

What does CA80AM measure?

It measures ammonium nitrogen (NH4-N) concentration in water samples.

What measurement method does CA80AM use?

The analyzer uses the indophenol blue colorimetric method according to ISO 7150-1, DIN 38406-5 and GB 7481-87.

What is the measuring range of CA80AM?

Depending on configuration, the range includes:

•
  0.05–20 mg/l NH4-N

•
  0.5–50 mg/l NH4-N

•
  1–100 mg/l NH4-N


With dilution function, it can measure up to 10–1000 mg/l NH4-N.

Where is CA80AM commonly installed?

Typical installation points include wastewater plant inlets, outlets, aeration basins and industrial wastewater treatment processes.

Does CA80AM require manual calibration?

The system supports automatic calibration and cleaning functions to reduce manual maintenance requirements.

Can CA80AM connect with other Liquiline sensors?

Yes. As part of the Liquiline platform, it can be expanded with compatible Memosens digital sensors depending on the system configuration.
