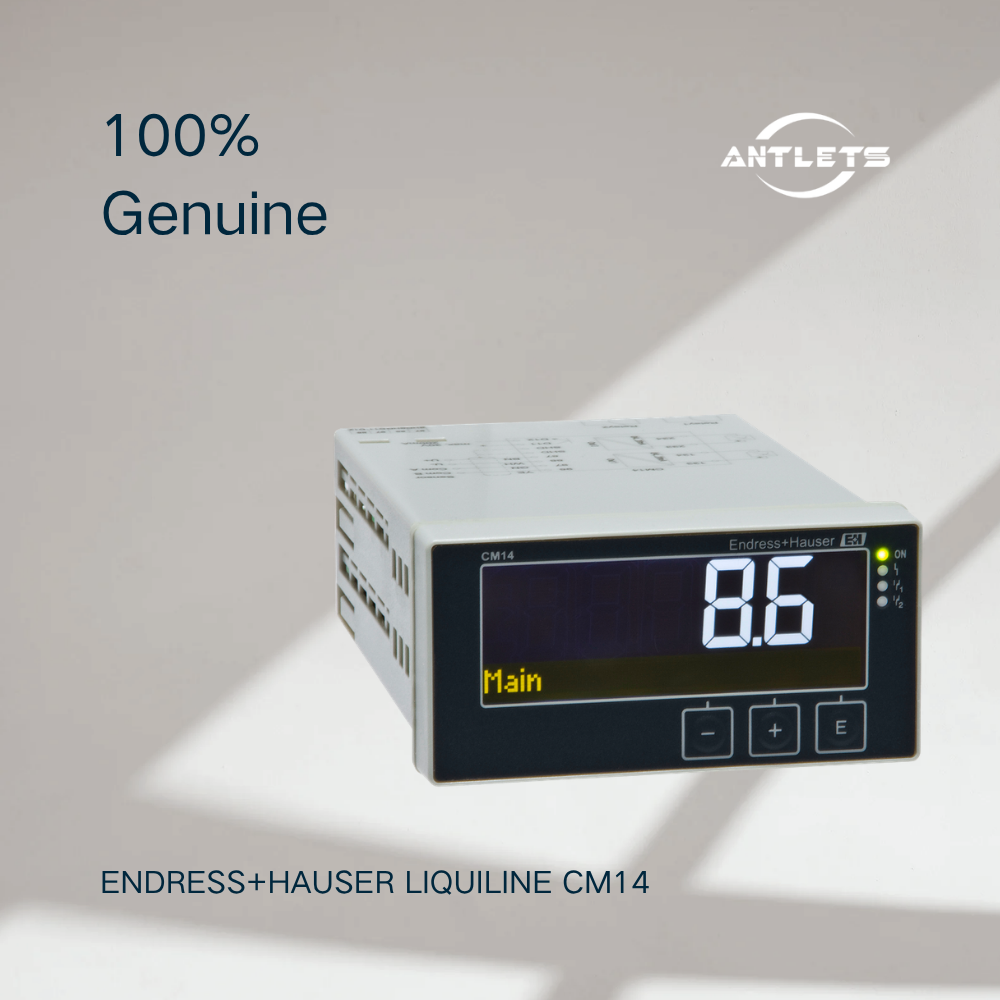

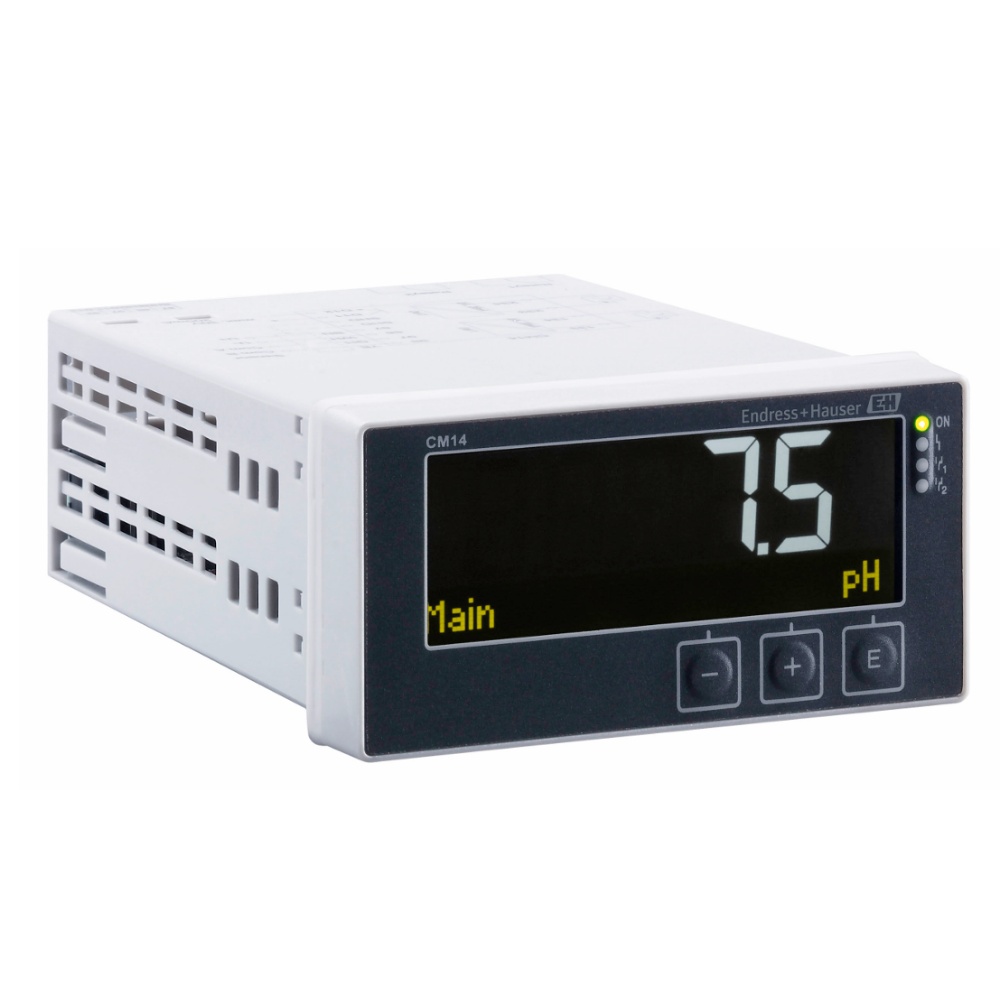

Compact Panel Transmitter for Liquid Analysis

The Liquiline CM14 is designed as a basic one-channel transmitter for standard liquid-analysis measuring points. Instead of requiring a larger multiparameter transmitter, the CM14 provides a compact panel-mounted solution for applications where one measurement point needs to be monitored and integrated into the plant control system.

Its compact design allows installation in common control cabinet panel cut-outs, making it suitable for both new installations and equipment upgrades.

One Transmitter for Multiple Measurement Parameters

The CM14 can be configured for different types of Memosens digital sensors, including sensors for:

•
  pH

•
  ORP

•
  Conductivity

•
  Dissolved oxygen


This makes the transmitter suitable for different liquid-analysis applications while keeping the basic panel architecture consistent.

Memosens Digital Sensor Technology

The CM14 uses Memosens digital technology to connect with compatible sensors.

The Memosens hot-plug-and-play concept allows compatible sensors to be installed and configured quickly. Sensor data is transferred digitally to the transmitter, providing a practical interface between the sensor and the plant measurement system.

Simple Commissioning

The CM14 is intended for applications where straightforward commissioning is important.

Its combination of a single sensor input, compact panel construction and Memosens technology provides a relatively simple setup for standard measurement points without the additional complexity of a larger multi-channel transmitter.

Analog Outputs for Process Integration

The transmitter provides two 0/4–20 mA outputs, allowing measurement information to be transmitted to a PLC, DCS, recorder or other control-system equipment.

This provides a conventional analog interface for integrating the CM14 into existing industrial automation systems.

Relay Outputs for Monitoring Functions

The CM14 also provides two relay outputs.

These can be used for switching and monitoring functions associated with the measurement point, such as limit or alarm functions, depending on the configured application and control requirements.

Designed for Standard Industrial Applications

Endress+Hauser positions the CM14 for standard applications in Food & Beverage, Power & Energy, and Water, Wastewater & Waste industries and their utilities.

This makes the transmitter particularly suitable where a compact and uncomplicated liquid-analysis interface is required.

Panel-Mounted Installation

The CM14 is designed specifically for panel installation rather than field mounting.

The front of the transmitter has IP65 / NEMA 4X protection, while the body is rated IP20. This arrangement is suited to installation in a protected control cabinet or panel environment.

Compact Alternative for Standard Measuring Points

For applications that require only one measurement channel, the CM14 provides a more focused solution than larger multi-channel liquid-analysis transmitters.

It is particularly appropriate when the project requires one Memosens measurement point, standard signal outputs and a compact panel-mounted interface.

Key Features

•
  One-channel panel transmitter

•
  Endress+Hauser Liquiline CM14

•
  Based on Memosens digital technology

•
  Supports digital pH/ORP sensors

•
  Supports digital conductivity sensors

•
  Supports digital dissolved oxygen sensors

•
  Memosens hot-plug-and-play sensor connection

•
  2 × 0/4–20 mA outputs

•
  2 × relay outputs

•
  Compact panel-mounted design

•
  Front protection IP65 / NEMA 4X

•
  Body protection IP20

•
  Designed for common cabinet cut-outs

•
  Simple commissioning and operation

•
  Suitable for standard measuring points

•
  Suitable for non-hazardous areas

•
  Applications in Food & Beverage, Power & Energy, Water and Wastewater


Typical Applications

Water and Wastewater Treatment

The CM14 can be used as the panel transmitter for compatible Memosens pH, conductivity or dissolved oxygen measuring points in water and wastewater treatment systems.

Food & Beverage Processing

For standard liquid-analysis points in food and beverage utilities and processes, the CM14 provides a compact interface for compatible Memosens sensors.

Power & Energy

The transmitter can be used for liquid-analysis monitoring in power and energy applications where a compact one-channel panel device is appropriate.

pH and ORP Monitoring

With a compatible Memosens pH or ORP sensor, the CM14 can provide a panel-mounted interface for monitoring pH or redox conditions.

Conductivity Monitoring

The CM14 can be paired with compatible Memosens conductivity sensors for conductivity measurement and process monitoring.

Dissolved Oxygen Monitoring

With an appropriate Memosens oxygen sensor, the CM14 can be used for dissolved oxygen measurement in suitable liquid-analysis applications.

Control Cabinet Integration

The compact panel format and 0/4–20 mA outputs make the CM14 suitable for integration into control cabinets and existing automation systems.

FAQ

What is the Endress+Hauser CM14?

The Liquiline CM14 is a one-channel panel transmitter for digital Memosens liquid-analysis sensors. It can be used with compatible pH/ORP, conductivity and dissolved oxygen sensors.

What sensors can be connected to the CM14?

The CM14 supports compatible Memosens digital sensors for pH/ORP, conductivity and dissolved oxygen.

Is the CM14 a sensor?

No. The CM14 is a transmitter. The actual measurement is performed by the connected Memosens sensor.

Is the CM14 a one-channel transmitter?

Yes. Endress+Hauser specifies the CM14 as a one-channel transmitter.

Does the CM14 use Memosens technology?

Yes. The CM14 is based on digital Memosens technology, including the Memosens hot-plug-and-play concept.

What outputs does the CM14 provide?

The CM14 provides 2 × 0/4–20 mA outputs and 2 relay outputs.

Is the CM14 designed for panel mounting?

Yes. It is a panel transmitter designed to fit common cabinet cut-outs.

What is the protection rating of the CM14?

The front is rated IP65 / NEMA 4X, while the transmitter body is rated IP20.

Can the CM14 be used for conductivity measurement?

Yes. The CM14 can be connected to compatible Memosens digital conductivity sensors.

Can the CM14 measure pH and ORP?

Yes. Compatible Memosens pH and ORP sensors can be connected to the CM14.

Can the CM14 measure dissolved oxygen?

Yes. The CM14 supports compatible Memosens dissolved oxygen sensors.

What industries is the CM14 intended for?

Endress+Hauser lists Food & Beverage, Power & Energy, and Water, Wastewater & Waste among its application industries.
