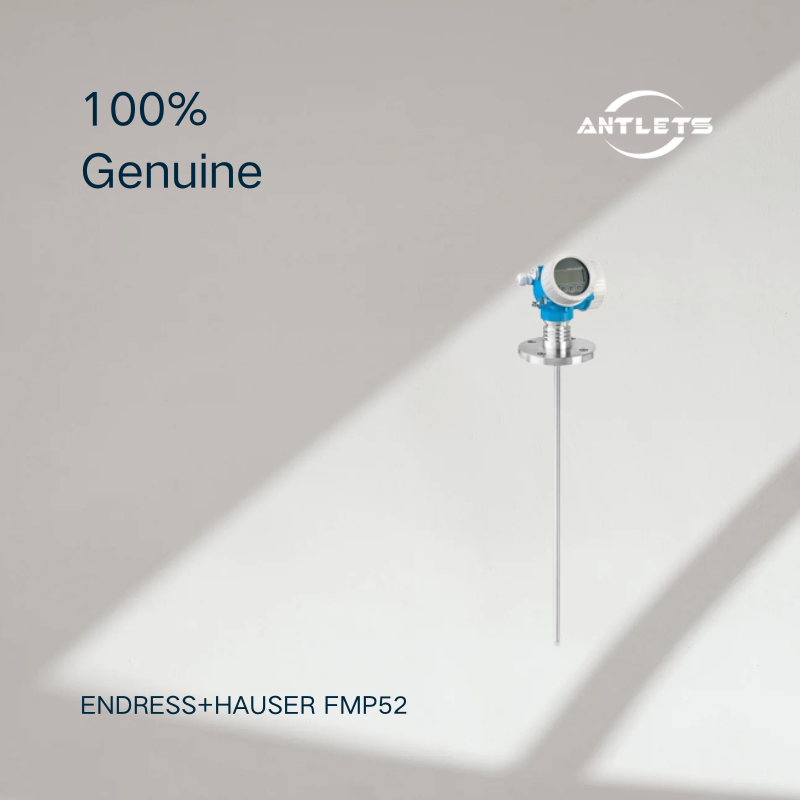

Endress+Hauser Levelflex FMP52 – Guided Radar Level Transmitter for Aggressive Liquids
The Levelflex FMP52 is a premium guided radar level transmitter specially designed for continuous level measurement and interface measurement in aggressive liquids. Featuring a chemically resistant PFA-coated probe, the FMP52 provides reliable measurement performance in applications where conventional level instruments may be limited by corrosion, chemical attack or demanding process conditions.
Based on the proven time-of-flight guided radar principle, the FMP52 delivers stable measurement even when process conditions change, including variations in media properties, temperature, gas blankets, vapors or moving surfaces.
Reliable Guided Radar Measurement Without Process Interruption
The Levelflex FMP52 sends high-frequency electromagnetic pulses along the probe. When the signal reaches the medium surface or interface layer, part of the energy is reflected back. The transmitter calculates the level based on the measured travel time.
Because the measurement is guided along the probe, the FMP52 provides excellent signal reliability even in tanks with challenging conditions such as foam, vapor or turbulent surfaces.
Key performance:
Measuring principle: Guided radar (Time-of-Flight)
Applications:
Continuous level measurement
Liquid-liquid interface measurement
Aggressive liquids, pastes and slurries
Accuracy:
Rod probe: ±2 mm
Rope probe ≤15 m: ±2 mm
Rope probe >15 m: ±10 mm
Maximum measuring range:
Rod probe: up to 4 m
Rope probe: up to 45 m
Process temperature: –50 to +200 °C
Process pressure: Vacuum to +40 bar
Probe materials: 316L / PTFE / PFA coated design
Communication: HART, PROFIBUS PA, FOUNDATION Fieldbus, Bluetooth
Safety: SIL, WHG overfill prevention available
Specially Designed for Corrosive and Aggressive Media
Many industrial processes involve liquids that are difficult to measure due to their chemical properties.
The FMP52 uses a gap-free PFA-coated probe, protecting the measuring components from aggressive process media while maintaining reliable radar signal transmission.
Typical applications include:
Chemical storage tanks
Acid and alkali tanks
Solvent vessels
Process reactors
Pharmaceutical production
Specialty chemical systems
For industries where measurement reliability directly affects production safety and efficiency, the FMP52 provides a durable and dependable solution.
Stable Measurement Under Changing Process Conditions
Process environments are rarely constant. Media characteristics, temperatures and surface conditions can change during operation.
The Levelflex FMP52 maintains reliable measurement performance despite:
Changing dielectric properties
Temperature fluctuations
Gas layers above the liquid
Vapor formation
Moving product surfaces
Foam conditions
Advanced Multi-Echo Tracking technology helps distinguish the actual level signal from interfering echoes, improving measurement confidence in demanding applications.
Continuous Level and Interface Measurement in One Device
The FMP52 is capable of measuring both total level and liquid interface levels.
It is suitable for applications such as:
Oil / water separation
Chemical phase separation
Settling tanks
Separation vessels
For clean liquid interfaces, the instrument can simultaneously detect the overall level and the interface position, helping reduce additional measurement equipment requirements.
Flexible Probe Options for Different Installation Requirements
The Levelflex FMP52 offers different probe configurations to meet various tank designs.
Rod Probe
Suitable for:
Small tanks
Short measuring distances
Compact installations
Maximum measuring range:
Rope Probe
Suitable for:
Tall tanks
Large storage vessels
Long measuring distances
Maximum measuring range:
Hygienic Design for Clean Process Applications
The FMP52 is available with process connections suitable for hygienic applications, and wetted materials are available with FDA-listed options.
It can be used in industries requiring high cleanliness standards, including:
Pharmaceutical
Food & beverage
Biotechnology
Intelligent Diagnostics and Easy Maintenance
The FMP52 integrates Endress+Hauser digital technologies to simplify commissioning and lifecycle management.
Features include:
Heartbeat Technology
Bluetooth commissioning
SmartBlue App operation
HistoROM data management
RFID TAG identification
These functions help reduce commissioning time and support predictive maintenance strategies.
Safety-Oriented Solution for Critical Processes
For applications where measurement reliability is essential, the FMP52 supports advanced safety functions:
SIL safety approvals
WHG overfill prevention
Explosion protection certifications
Marine approvals
This makes it suitable for critical process industries requiring dependable level monitoring.
Frequently Asked Questions
What is Endress+Hauser Levelflex FMP52 used for?
The FMP52 is designed for continuous level and interface measurement of aggressive liquids, pastes and slurries, especially in chemical and demanding process applications.
What makes FMP52 different from FMP51?
The FMP52 is optimized for corrosive media with a chemically resistant PFA-coated probe, while FMP51 focuses more on high-temperature and high-pressure general process applications.
Can the FMP52 measure aggressive chemicals?
Yes. The PFA-coated probe design provides excellent chemical resistance for aggressive liquid applications.
What is the maximum measuring range of FMP52?
The maximum measuring range is up to 4 m with rod probe and 45 m with rope probe.
Can FMP52 measure interface levels?
Yes. The FMP52 supports liquid-liquid interface measurement, such as oil/water separation applications.
Is FMP52 suitable for hygienic applications?
Yes. Versions with hygienic process connections and FDA-listed wetted materials are available.
