iTHERM ModuLine TM112 is an easy-to-use imperial direct contact modular thermometer, featuring outstanding RTD or TC sensor technology. It is suitable for every application, from basic functionality to high-end performance in the chemical, oil & gas and power & energy industries.

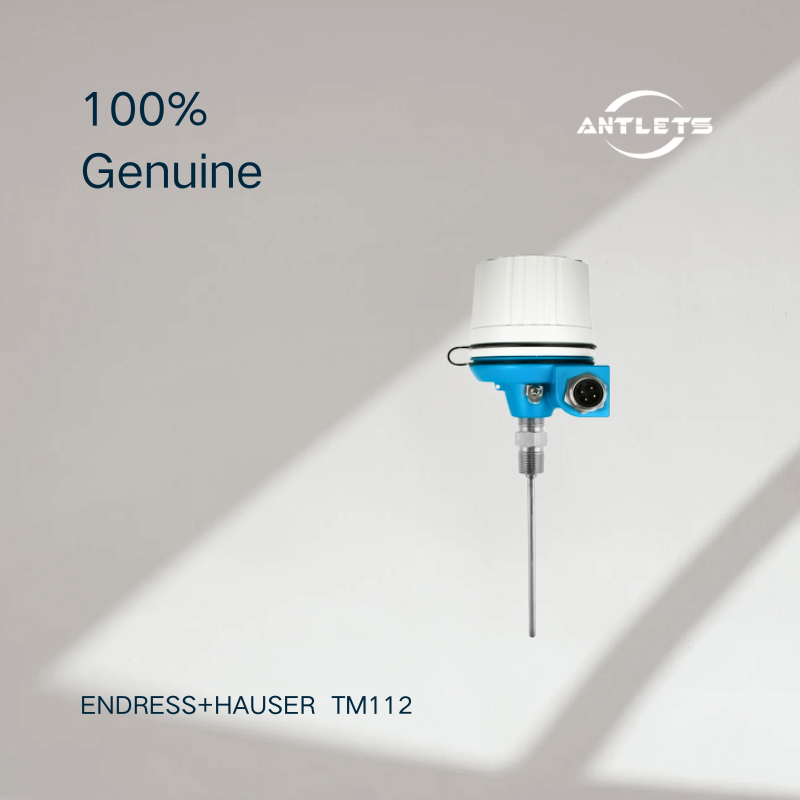

iTHERM ModuLine TM112 Industrial modular thermometer

Imperial RTD/TC direct contact thermometer for a wide range of industrial applications

Specs at a glance

  • Accuracy

    Class AA acc. to IEC 60751
    Class A acc. to IEC 60751
    Class B acc. to IEC 60751
    Class special or standard acc. to ASTM E230
    Class 1 or 2 acc. to IEC 60584-2

  • Response time

    t90 starting at < 1,5 s iTHERM QuickSens
    depending on configuration

  • Max. process pressure (static)

    depending on the configuration

  • Operating temperature range

    PT100 TF iTHERM StrongSens:
    -50 °C ...500 °C
    (-58 °F ...932 °F)
    PT100 TF iTHERM QuickSens:
    -50 °C …200 °C
    (-58 °F …392 °F)
    PT100 WW:
    -200 °C ...600 °C
    (-328 °F ...1.112 °F)
    PT100 basic TF:
    -50 °C ...200 °C
    (-58 °F ...392 °F)
    Typ K:
    max. 1.100 °C
    (max. 2.012 °F)
    Typ J:
    max. 800 °C
    (max. 1.472 °F)
    Typ N:
    max. 1.100 °C
    (max. 2.012 °F)

  • Max. immersion length on request

    up to 180"

Field of application

iTHERM ModuLine TM112 is an easy-to-use imperial direct contact modular thermometer, featuring outstanding RTD or TC sensor technology. It is suitable for every application, from basic functionality to high-end performance in the chemical, oil & gas and power & energy industries.



  • For universal use

  • Measuring range: –200 to +1 100 °C (–328 to +2 012 °F)

  • Pressure range: up to 75 bar (1 088 psi)

Benefits

  • User-friendly and reliable from product selection to maintenance

  • iTHERM inserts: full traceability and consistently high product quality for reliable measured values

  • iTHERM QuickSens: fastest response times of 1.5 s for optimum process control

  • iTHERM StrongSens: unsurpassed vibration resistance (> 60g) for ultimate plant safety

  • International certification: e.g. explosion protection according to ATEX, IECEx, CSA and INMETRO; functional safety (SIL)

  • iTEMP temperature transmitter with all common communication protocols and optional Bluetooth® connectivity

Vendor Endress+Hauser
Type Thermometer
