Basic thermometers offer reliable temperature measurement performance with basic sensor technology, a standard extension neck and a fixed, non-replaceable insert for use in non-hazardous areas. The devices are available with optional Bluetooth®-enabled head transmitters with 4 to 20 mA output or HART® communication, providing enhanced measurement accuracy and reliability compared to directly wired sensors.

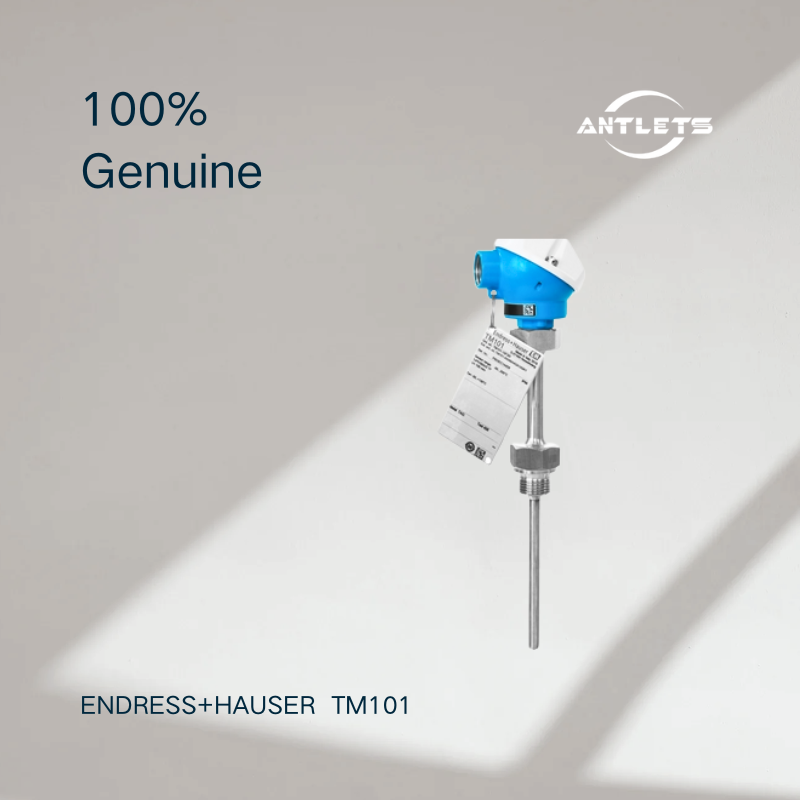

iTHERM ModuLine TM101 Industrial modular thermometer

Fundamental metric RTD/TC direct contact thermometer for a wide range of industrial applications

Specs at a glance

• Accuracy

  Class A acc. to IEC 60751
  Class B acc. to IEC 60751
  Class standard acc. to ASTM E230
  Class 2 acc. to IEC 60584-2

• Response time

  t90 around 17 s
  depending on configuration

• Max. process pressure (static)

  depending on the configuration

• Operating temperature range

  Basic PT100 TF:
  -50 °C …200 °C
  (-58 °F …392 °F)
  Typ K:
  max. 1.100 °C
  (max. 2.012 °F)

• Max. immersion length on request

  up to 1.000,0 mm (39'')

Field of application

Basic thermometers offer reliable temperature measurement performance with basic sensor technology, a standard extension neck and a fixed, non-replaceable insert for use in non-hazardous areas. The devices are available with optional Bluetooth®-enabled head transmitters with 4 to 20 mA output or HART® communication, providing enhanced measurement accuracy and reliability compared to directly wired sensors.

Benefits

• Excellent value for money and fast global delivery

• User-friendly product selection, smart design for easy maintenance

• Wide range of process connections

• Bluetooth® connectivity (optional)
