The iTEMP TMT82 is a highly reliable, accurate and long-term stable temperature transmitter for industrial processes requiring high availability.
The versatile 2-channel device converts universal sensor inputs such as thermocouples or RTD into stable, scalable 4 to 20 mA output signals and HART® communication. With its built-in smart sensor monitoring capability and diagnostic status information according to NAMUR NE 107, the SIL 2, SC3 certified transmitter increases process safety and uptime.

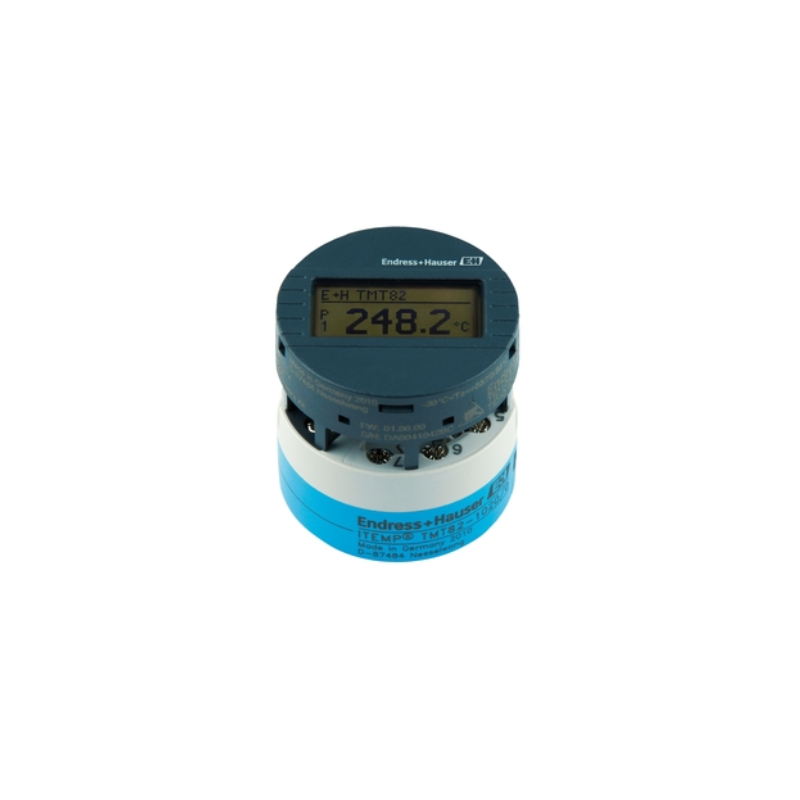

iTEMP TMT82 temperature transmitter

HART® temperature transmitter as head, field or DIN rail device with two universal sensor inputs suitable for use in hazardous areas and SIL 2

Specs at a glance

  • Accuracy

    (Pt100, -50...200 °C) <= 0,1 K
    (Pt100, -58...392 °F) <= 0,18 °F

Field of application

The iTEMP TMT82 is a highly reliable, accurate and long-term stable temperature transmitter for industrial processes requiring high availability.
The versatile 2-channel device converts universal sensor inputs such as thermocouples or RTD into stable, scalable 4 to 20 mA output signals and HART® communication. With its built-in smart sensor monitoring capability and diagnostic status information according to NAMUR NE 107, the SIL 2, SC3 certified transmitter increases process safety and uptime.



  • Safe operation in hazardous areas; International approvals such as FM, CSA, ATEX, EAC, NEPSI, IECEx, DNV GL

  • 2-channel universal signal inputs: RTD, thermocouple, resistance (Ω) and voltage transmitters (mV), HART® 7 protocol

  • Suited for use in marine applications

  • Installation in explosion proof field housings;

  • Protection class up to IP 68

  • Fits in flat-face terminal heads as per DIN EN 50446

  • Cabinet or DIN rail mounting; width: 17.5 mm

Benefits

  • Robust temperature transmitter delivering precise, long-term stable measurements for high plant availability

  • SIL certification up to SIL2, SC3 according to IEC 61508:2010

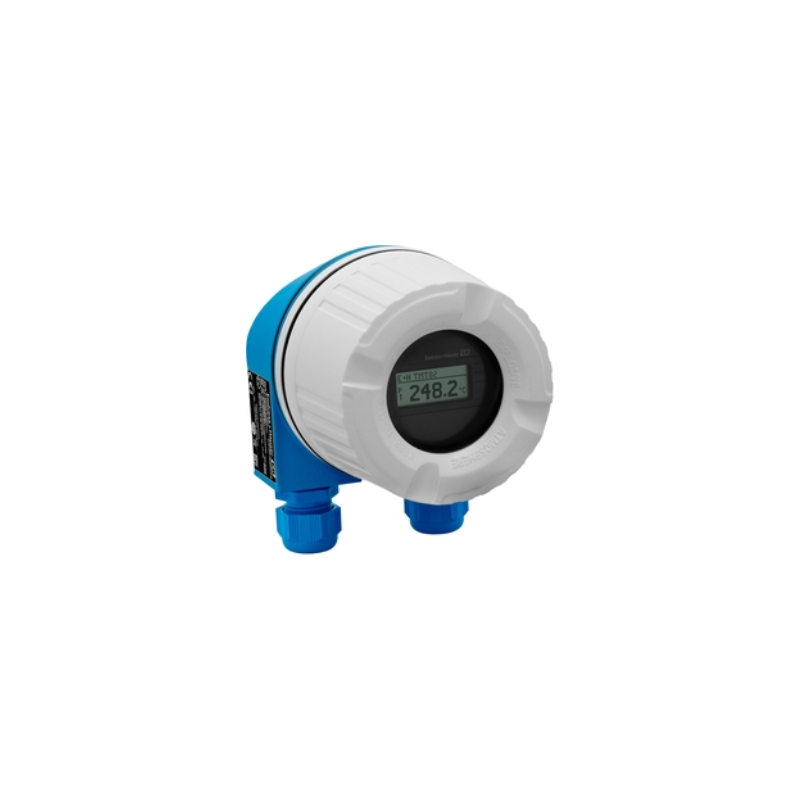

  • Versatile mounting and housing options:
    terminal head form B, DIN rail, field housing with separate terminal compartment, integrated display (TID10)

  • temperature Transmitter-sensor matching for highest measurement accuracy

  • Sensor and hardware failure detection; diagnostic status information
    according to NAMUR NE 107

  • Time-saving installation: Tool-free wiring with push-in terminal technology

Vendor Endress+Hauser
Type Temperature Transmitter
