Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals using HART® communication. Diagnostics information according to NAMUR NE 107. Seamless integration into all major control and asset management systems. Integrated Bluetooth® interface for remote operation via Endress+Hauser SmartBlue App.

iTEMP TMT72 temperature transmitter

HART® temperature transmitter as head, field or DIN rail device with one universal sensor input suitable for use in hazardous areas

Specs at a glance

  • Accuracy

    (Pt100, -50...200 °C) <= 0,1 K
    (Pt100, -58...392 °F) <= 0,18 °F

Field of application

Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals using HART® communication. Diagnostics information according to NAMUR NE 107. Seamless integration into all major control and asset management systems. Integrated Bluetooth® interface for remote operation via Endress+Hauser SmartBlue App.



  • Bluetooth®-enabled temperature transmitter with HART® communication for the conversion of various input signals into a scalable, analog 4 to 20 mA output signal

  • Improved process efficiency and increased plant uptime

  • Universal input for RTD, TC, resistance transmitters (Ω), voltage transmitters (mV)

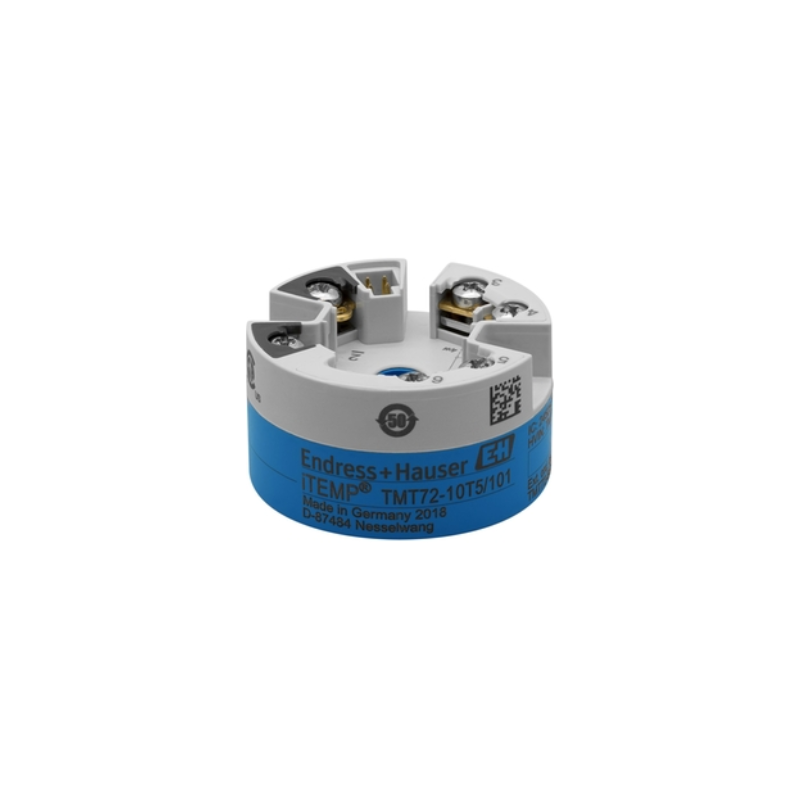

  • Installation in terminal head form B (flat face) as per DIN EN 50446

  • Installation in cabinets with DIN rail housing

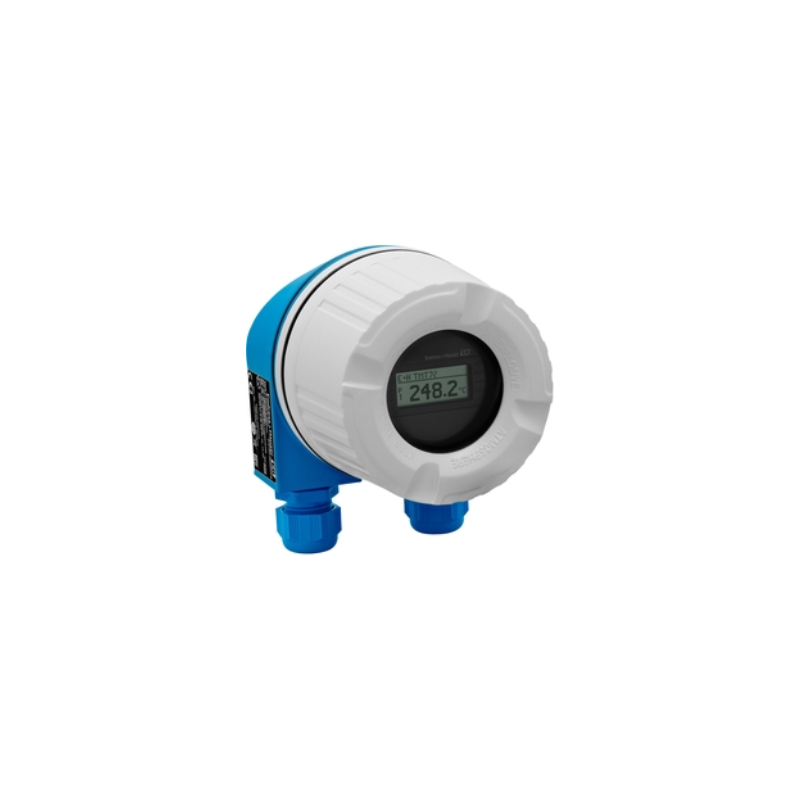

  • Optional installation in field housing even for use in Ex d applications

Benefits

  • Safe operation in hazardous areas thanks to international approvals

  • Reliable operation thanks to sensor and device monitoring

  • Integrated Bluetooth® interface for the wireless display of measured values and configuration via E+H SmartBlue (app), optional

  • Diagnostics information according to NAMUR NE 107

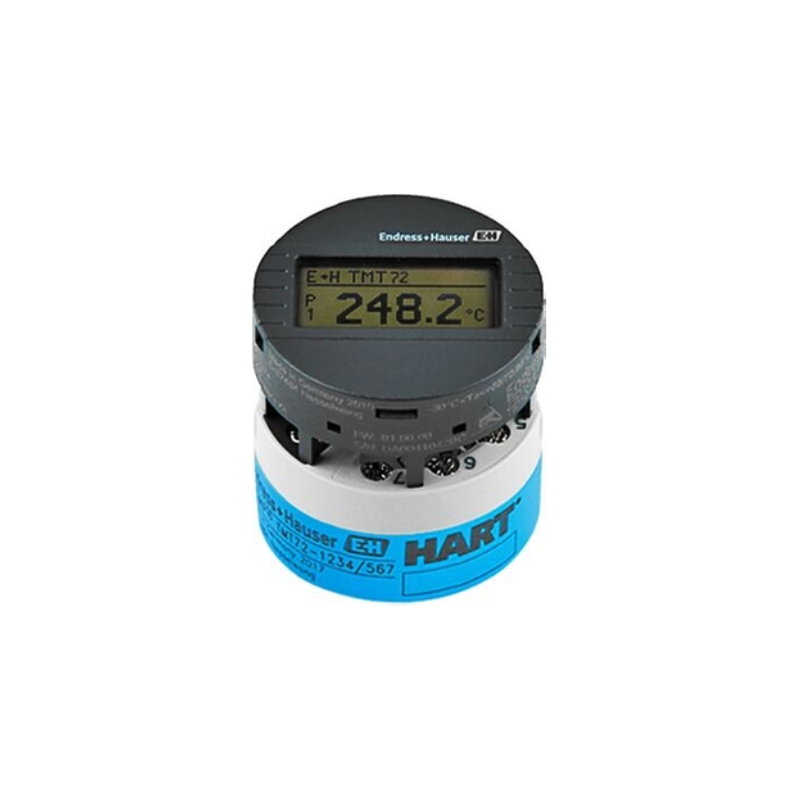

  • Available with plug-on display TID10

  • Optimization of the measurement accuracy by sensor-transmitter matching.

Vendor Endress+Hauser
Type Temperature Transmitter
