Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals. The standardized 4 to 20 mA output signal is used for process measurement. Swift and easy commissioning, operation and maintenance via PC software or with integrated Bluetooth® technology and Endress+Hauser SmartBlue App.

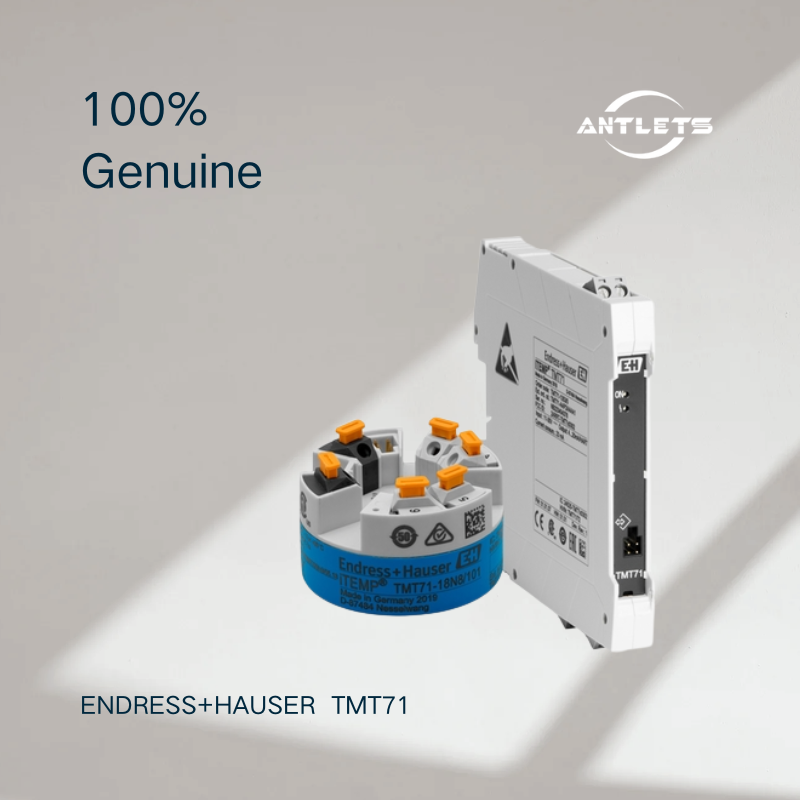

iTEMP TMT71 temperature transmitter

4-20 mA temperature transmitter as head, field or DIN rail device with one universal sensor input suitable for use in hazardous areas

Specs at a glance

  • Accuracy

    (Pt100, -50...200 °C) <= 0,1 K
    (Pt100, -58...392 °F) <= 0,18 °F

Field of application

Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals. The standardized 4 to 20 mA output signal is used for process measurement. Swift and easy commissioning, operation and maintenance via PC software or with integrated Bluetooth® technology and Endress+Hauser SmartBlue App.



  • Bluetooth®-enabled or PC programmable temperature transmitter for the conversion of various input signals into a scalable, analog 4 to 20 mA output signal

  • Improved process efficiency and increased plant uptime

  • Universal input for resistance thermometers (RTD), thermocouples (TC), resistance transmitters (Ω) and voltage transmitters (mV)

  • Installation in terminal head form B as per DIN EN 50446

  • Installation in cabinets with DIN rail housing

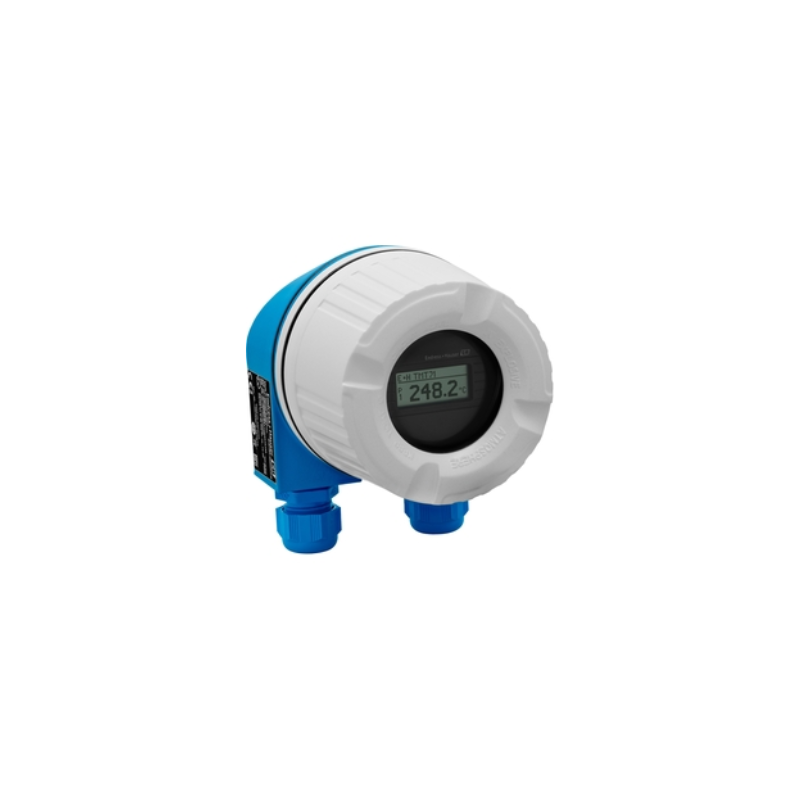

  • Optional installation in field housing for Ex d applications

Benefits

  • Safe operation in hazardous areas thanks to international approvals

  • Reliable operation thanks to sensor and device monitoring

  • Integrated Bluetooth® interface for the wireless display of measured values and configuration via Endress+Hauser SmartBlue App, optional

  • User-friendly guided user interface concept also on-site via Bluetooth®

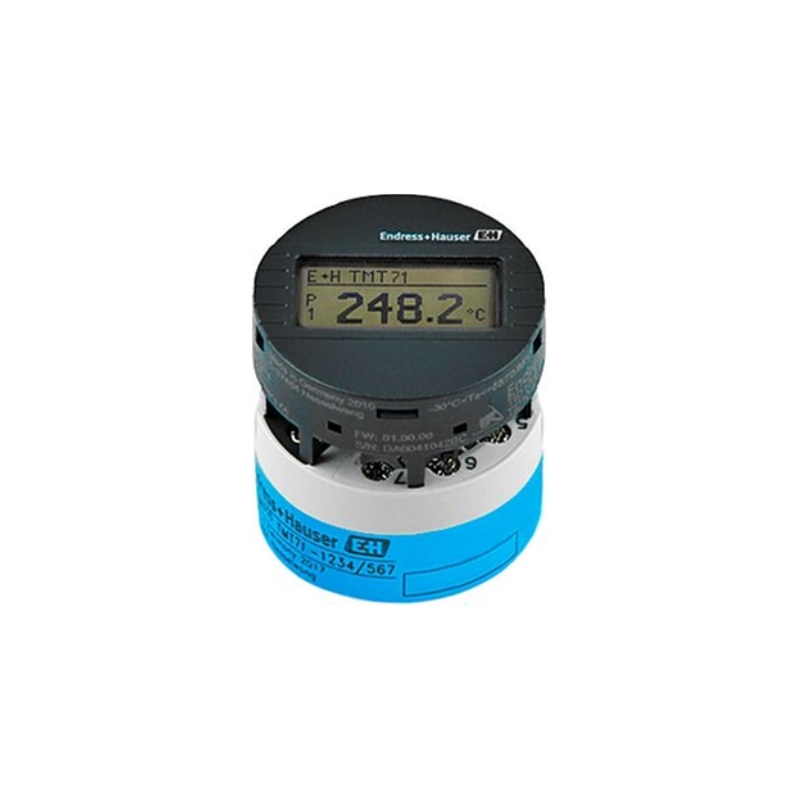

  • Available with plug-on display TID10

  • Diagnostics information according to NAMUR NE 107

Vendor Endress+Hauser
Type Temperature Transmitter
