The iTEMP TMT31 4-20 mA temperature transmitter is designed for customers in all industries who want to easily select, order, install and operate simple products. It is a reliable, long-term stable, single-channel 4-20 mA temperature transmitter for modular thermometers with form B connection head or for installation in control cabinets with DINrail mounting. The capable iTEMP TMT31 can be used with either all Pt100 and Pt1000 RTD sensors, or all common thermocouple sensors.

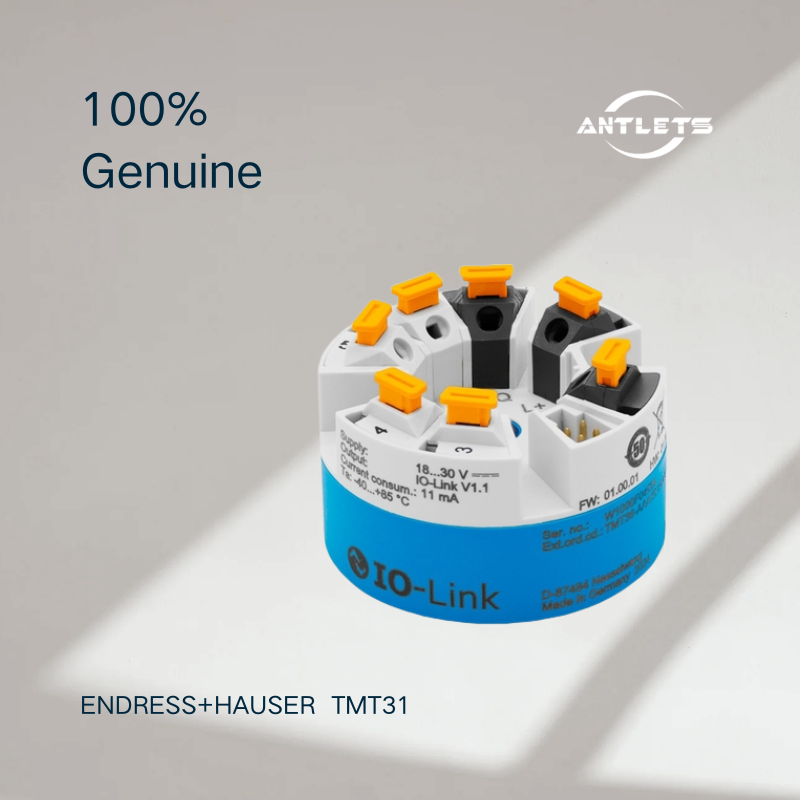

iTEMP TMT31 temperature transmitter

4-20 mA temperature transmitter as head or DIN rail device with one RTD or one TC sensor input suitable for use in zone 2 (Ex ec) / Div. 2 areas

Specs at a glance

• Accuracy

  (Pt100,Pt1000, -50…+250°C) <= 0,1 K
  (Pt100,Pt1000, -58…+482°F) <= 0,18° F

Field of application

The iTEMP TMT31 4-20 mA temperature transmitter is designed for customers in all industries who want to easily select, order, install and operate simple products. It is a reliable, long-term stable, single-channel 4-20 mA temperature transmitter for modular thermometers with form B connection head or for installation in control cabinets with DINrail mounting. The capable iTEMP TMT31 can be used with either all Pt100 and Pt1000 RTD sensors, or all common thermocouple sensors.

Benefits

• Push-in terminals for fast and tool-free wiring during installation or maintenance

• Optimization of the accuracy of the measuring point through sensor-transmitter-matching (CvD)

• Diagnostic information according to NAMUR NE107

• Increased safety through Ex approvals
