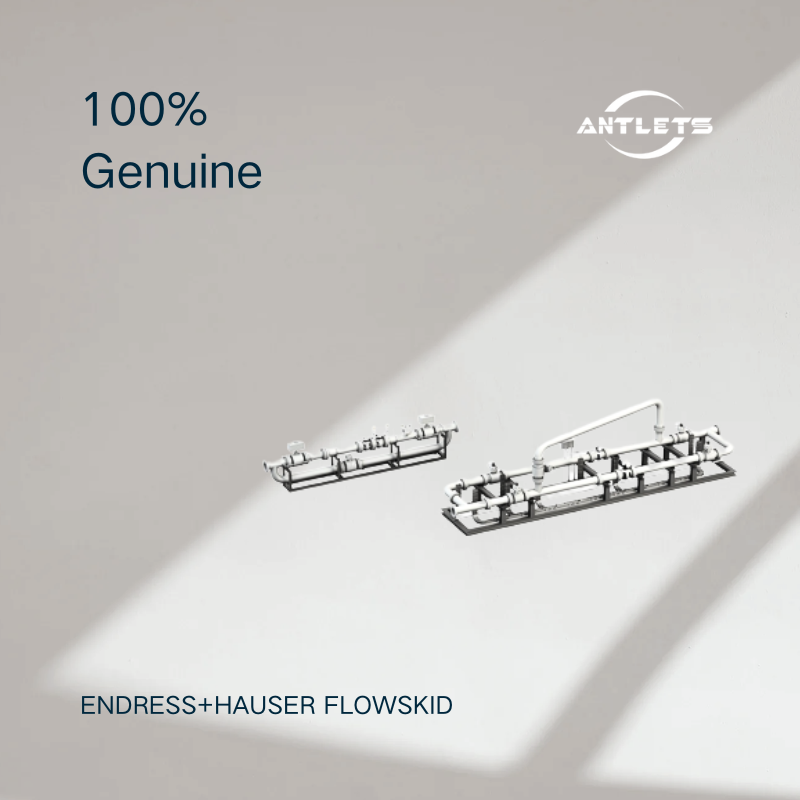

Endress+Hauser FLOWSKID Custody Transfer Gas Metering System

The Endress+Hauser FLOWSKID is a complete, modular gas flow metering system designed for demanding custody transfer and fiscal metering applications. Rather than being a single flowmeter, FLOWSKID combines the key measurement, analysis, calculation and control components required to create a complete gas metering station.

The system integrates FLOWSIC600-XT ultrasonic gas flowmeters, Flow-X flow computers, gas chromatographs, analyzers, pressure and temperature measurement technology, valves, piping, monitoring systems and station control equipment. This integrated approach allows the complete metering system to be engineered and supplied as a turnkey solution.

Turnkey Solution for Custody Transfer

FLOWSKID is specifically designed for custody transfer gas measurement, where measurement accuracy, traceability, system integration and regulatory compliance are critical.

Endress+Hauser provides the complete system rather than individual components, helping reduce engineering, procurement and project execution work. The modular architecture also allows the instrumentation and metering configuration to be adapted to specific project requirements.

Integrated Ultrasonic Gas Flow Measurement

At the heart of the FLOWSKID system is the FLOWSIC600-XT ultrasonic gas flowmeter, which uses the ultrasonic transit-time difference measurement principle for accurate gas volume measurement.

The system can provide volume measurement, gas composition measurement, pressure measurement, temperature measurement, condition monitoring and flow calculation, allowing the complete measurement chain to be managed as an integrated system.

Flow-X Flow Computer Integration

FLOWSKID is designed for seamless integration with the Endress+Hauser Flow-X flow computer. The Flow-X processes measurement data from the flowmeter, pressure and temperature instruments and gas analysis equipment to perform the calculations required for fiscal gas metering.

This integrated architecture makes FLOWSKID suitable for applications where customers require a complete gas metering skid with flow calculation and data management, rather than purchasing and integrating individual instruments separately.

Gas Analysis and Chromatography

Depending on the application, FLOWSKID can include gas analyzers and gas chromatographs, allowing gas composition information to be incorporated into the metering system.

Gas composition data can be used together with pressure, temperature and flow measurement for accurate gas volume and energy calculations, which is particularly important in natural gas custody transfer applications.

Flexible Modular Design

One of the main advantages of FLOWSKID is its modular design. The system can be configured with different instrumentation, gas analyzers, gas chromatographs and supervisory computers according to the requirements of the metering project.

The system supports pressure classes from Class 150 to Class 2500 and nominal pipe sizes from 2 to 52 inches (DN50 to DN1400). The specified medium temperature range is -40 °C to +180 °C, depending on the selected configuration.

Complete Calibration and Quality Standards

FLOWSKID supports complete calibration of the metering system, helping ensure accurate measurement performance before commissioning.

The systems are manufactured according to relevant ISO, DIN, ANSI and ASME standards, allowing the metering skid to be configured according to local regulations and project-specific requirements.

Typical Applications

Endress+Hauser FLOWSKID is suitable for:

•
  Natural gas custody transfer

•
  Fiscal gas metering

•
  Natural gas metering stations

•
  LNG boil-off gas measurement

•
  Process gas metering

•
  Maritime gas measurement

•
  Gas transmission and distribution

•
  Gas processing facilities

•
  Industrial gas measurement

•
  Pipeline gas metering


The system is particularly suitable for projects where a complete, factory-engineered and integrated gas metering solution is required.

Key Features

•
  Turnkey custody transfer gas metering system

•
  Modular skid design

•
  FLOWSIC600-XT ultrasonic gas flowmeter

•
  Flow-X flow computer

•
  Gas chromatograph and analyzer options

•
  Pressure and temperature measurement

•
  Integrated flow calculation

•
  Gas composition measurement

•
  Complete system calibration possible

•
  Nominal pipe size 2–52 in / DN50–DN1400

•
  Pressure classes 150–2500

•
  Medium temperature -40 °C to +180 °C

•
  DIN, ANSI, ASME and ISO-compliant configurations

•
  Suitable for natural gas, LNG boil-off gas and process gas applications
