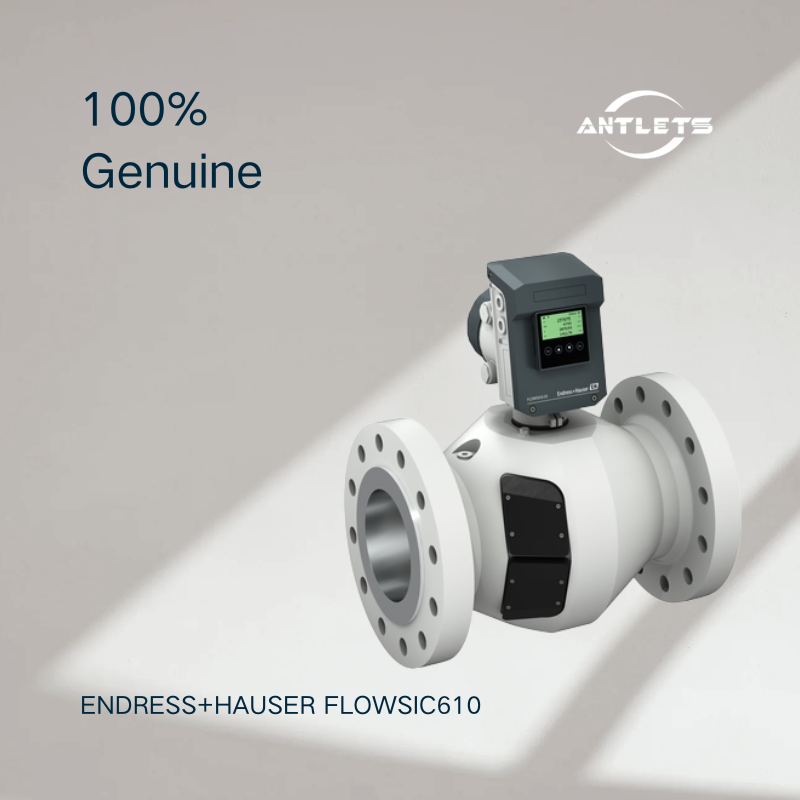

The Endress+Hauser FLOWSIC610 is an ultrasonic flowmeter designed specifically for custody transfer measurement of hydrogen gas. It provides accurate and reliable measurement for hydrogen transport, storage and distribution applications, including electrolyzer export pipelines and hydrogen compressor stations.

Based on the ultrasonic transit-time measurement principle, FLOWSIC610 measures actual volume, volumetric flow, gas velocity and speed of sound. An optional hydrogen purity indicator provides real-time hydrogen purity information based on the measured speed of sound.

The flowmeter is available for nominal pipe sizes from DN50 to DN400 (2" to 16") and provides fiscal accuracy Class 1 with a turndown ratio of up to 1:160. Its full-bore design avoids additional pressure drop, while the ultrasonic transducers provide reliable measurement under demanding hydrogen operating conditions.

Key Features

•
  Custody transfer measurement of hydrogen gas

•
  Accuracy Class 1

•
  DN50 to DN400 / 2" to 16"

•
  Turndown ratio up to 1:160

•
  Flow performance up to 60 m/s (200 ft/s)

•
  Full-bore design with no pressure drop

•
  Optional real-time hydrogen purity indication

•
  Intrinsically safe ultrasonic transducers

•
  MID-approved for custody transfer hydrogen gas measurement


Typical Applications

•
  Hydrogen custody transfer measurement

•
  Hydrogen transportation and storage

•
  Electrolyzer export pipelines

•
  Hydrogen compressor stations

•
  Hydrogen production and distribution infrastructure
