Flexible Sensor Installation for Water and Wastewater Applications

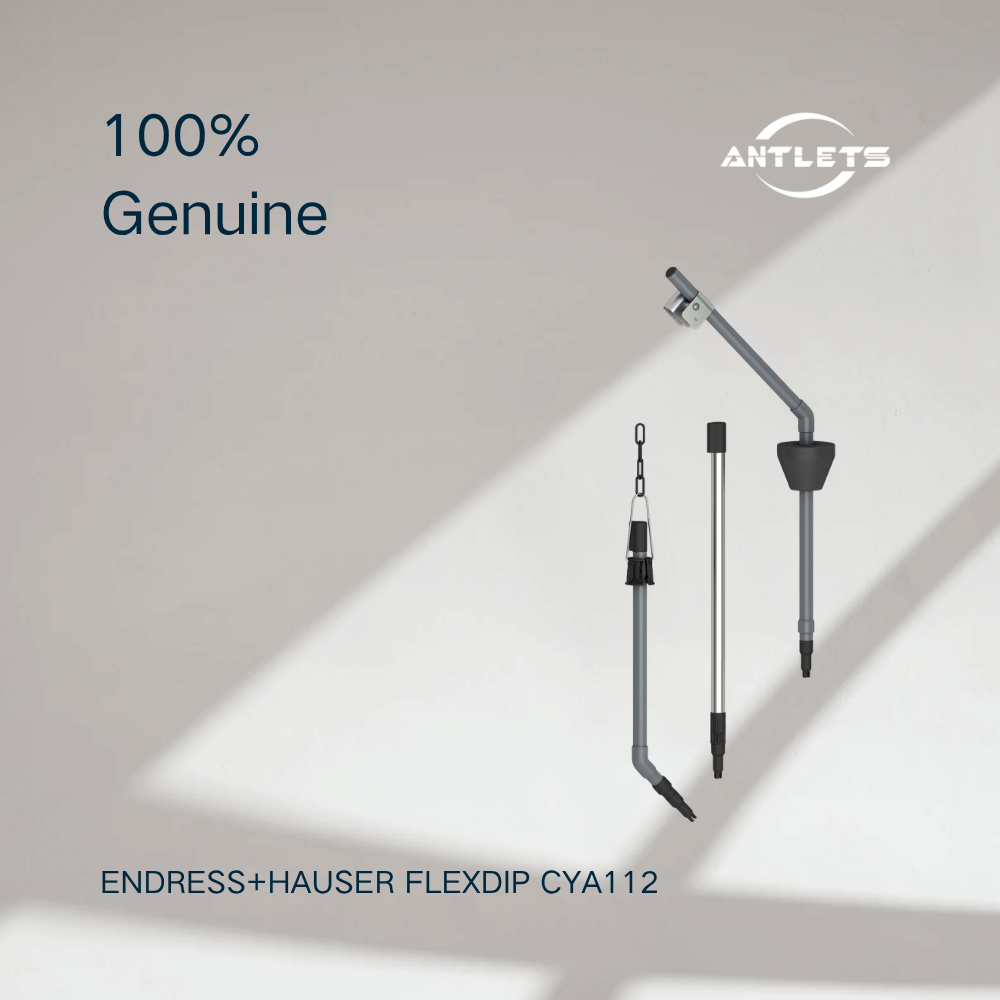

The Endress+Hauser Flexdip CYA112 is a modular immersion assembly developed to simplify sensor installation in open process environments.
In water and wastewater applications, the sensor position directly affects measurement accuracy. The CYA112 provides a flexible mounting solution that allows sensors to be positioned at the ideal measuring point, even in tanks with changing water levels or difficult installation conditions.
Typical installation locations include:
Open basins
Channels
Tanks
Process vessels
Sedimentation areas
It is designed for applications in:
Wastewater treatment plants
Water treatment facilities
Industrial utilities
Modular Design for Different Measuring Points
The CYA112 uses a modular construction concept, allowing users to configure the assembly according to the actual installation requirements.
Available installation options include:

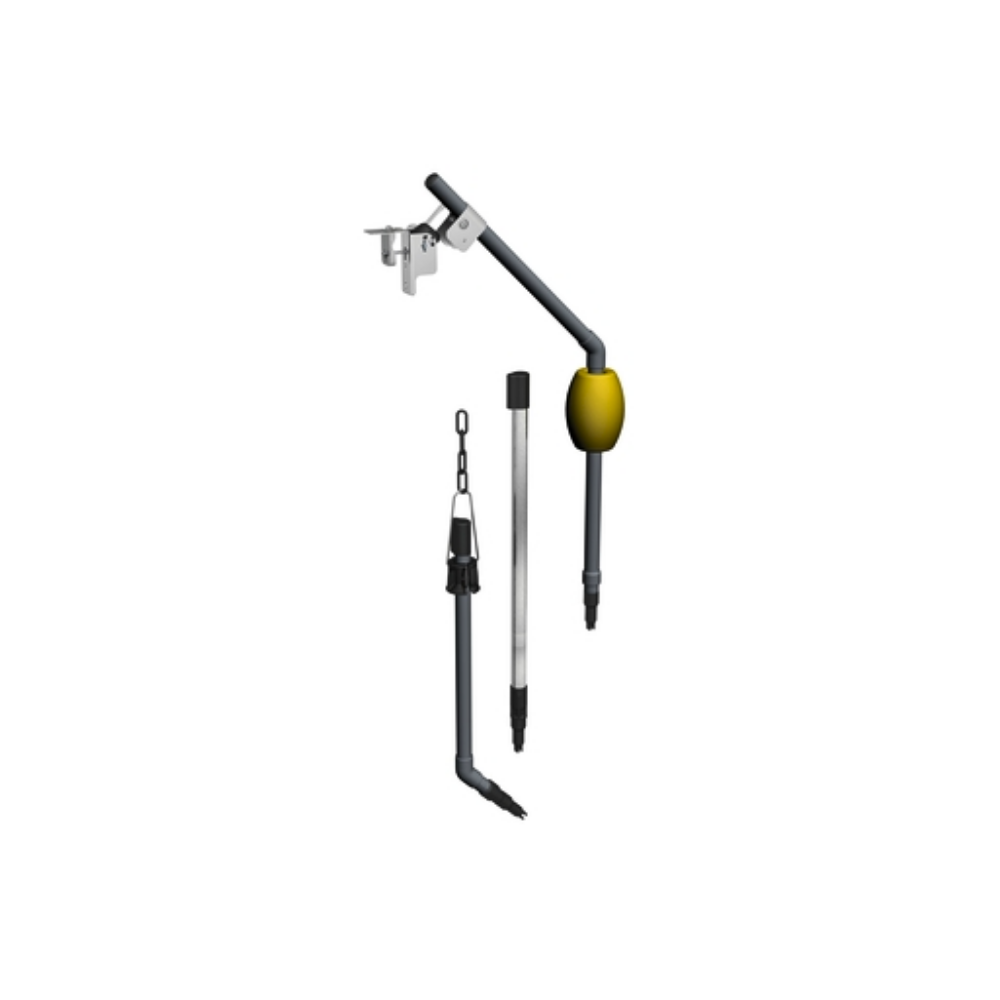

Fixed immersion mounting
Chain suspension mounting
Free-swinging installation
This flexibility helps optimize sensor placement according to:
Tank depth
Flow conditions
Water level fluctuations
Maintenance requirements
The modular system reduces installation complexity and allows easy adaptation for different measurement points.
Compatible with Multiple Liquid Analysis Sensors
The Flexdip CYA112 supports a wide range of Endress+Hauser liquid analysis sensors.
Typical measurement parameters include:
pH measurement
ORP / Redox measurement
Conductivity measurement
Dissolved oxygen measurement
Turbidity measurement
Disinfection measurement
Nutrient analysis
This makes it a universal mounting solution for many water and wastewater monitoring applications.
Easy Sensor Installation and Replacement
The CYA112 is designed to simplify daily operation and maintenance.
Key advantages include:
Fast installation of Memosens sensors
Quick sensor exchange
Contactless plug-in head connection for Memosens sensors
Twist-free installation of fixed-cable sensors
These features help reduce maintenance time and improve measurement system availability.
Robust Construction for Outdoor and Industrial Use
The immersion assembly is designed for demanding water and wastewater environments.
Available materials include:
Stainless steel 1.4404
PVC versions
Main components include:
Immersion pipe
Connection angle
Sensor adapter
Quick fastener
Multifunctional clamp ring
The robust construction provides reliable support for long-term sensor installation in industrial environments.
Designed for Complete Flexdip Measuring Stations
The CYA112 can be combined with the Flexdip CYH112 holder system to create a complete sensor mounting solution.
The combined system provides:
Flexible mounting arrangements
Simple sensor positioning
Easy maintenance access
Stable installation in open tanks and channels
This combination is commonly used for complete wastewater and water quality monitoring stations.
Key Features
Modular immersion assembly for liquid analysis sensors
Designed for open basins, channels and tanks
Flexible chain, fixed and free-swinging installation
Compatible with Memosens and fixed-cable sensors
Suitable for pH, ORP, conductivity, oxygen and turbidity sensors
Easy sensor installation and replacement
Stainless steel and PVC versions available
Designed for water treatment and wastewater applications
Compatible with Flexdip CYH112 holder system
Typical Applications
Wastewater Treatment Plants
The CYA112 is widely used in municipal and industrial wastewater treatment.
Applications include:
Aeration tank measurement
Clarification basin monitoring
Sludge process monitoring
Water quality analysis
Drinking Water Treatment
The assembly supports reliable sensor positioning in water treatment facilities.
Applications:
Raw water monitoring
Filtration process control
Water quality measurement
Industrial Utilities
The CYA112 provides flexible sensor installation for industrial water systems.
Applications:
Cooling water monitoring
Process water analysis
Wastewater discharge monitoring
Open Channels and Basins
For applications where fixed installation is difficult, the CYA112 provides flexible sensor positioning.
Suitable for:
Open channels
Large tanks
Fluctuating liquid levels
FAQ
What is Endress+Hauser CYA112?
The CYA112 is a modular immersion assembly used for installing liquid analysis sensors in open tanks, channels and basins.
What sensors can be installed on CYA112?
It supports various Endress+Hauser sensors for pH, ORP, conductivity, oxygen, turbidity, disinfection and other liquid analysis parameters.
Is CYA112 a sensor?
No. The CYA112 is not a measuring sensor. It is a sensor mounting assembly used to install and position measurement sensors correctly.
Where is CYA112 mainly used?
It is mainly used in wastewater treatment plants, water treatment facilities and industrial utility applications.
What is the difference between CYA112 and CYH112?
CYA112 is the immersion assembly that holds the sensor, while CYH112 is the holder system used for mounting and supporting the immersion assembly.
