This transmitter belongs to the new Deltabar generation. It is robust and easy to operate either locally or remotely. The transmitter can be controlled wireless via app on a mobile device using a secure Bluetooth connection. The PMD55B allows condition-based maintenance which increases efficiency in technical service significantly.
The software is designed to simplify the handling. Intuitive wizards guide you through the setup and proof testing of the device which minimizes operating errors.

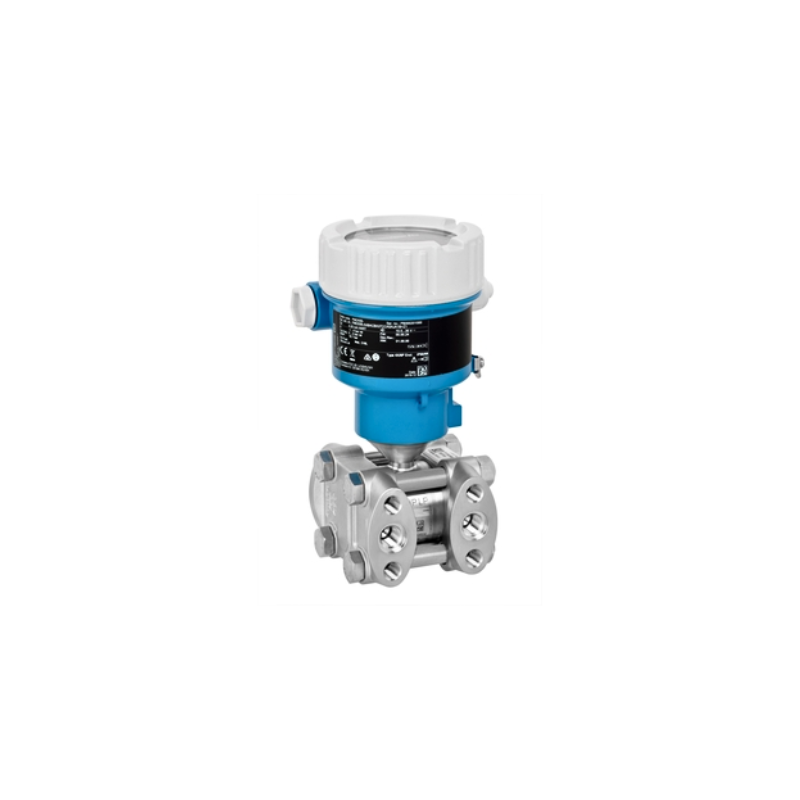

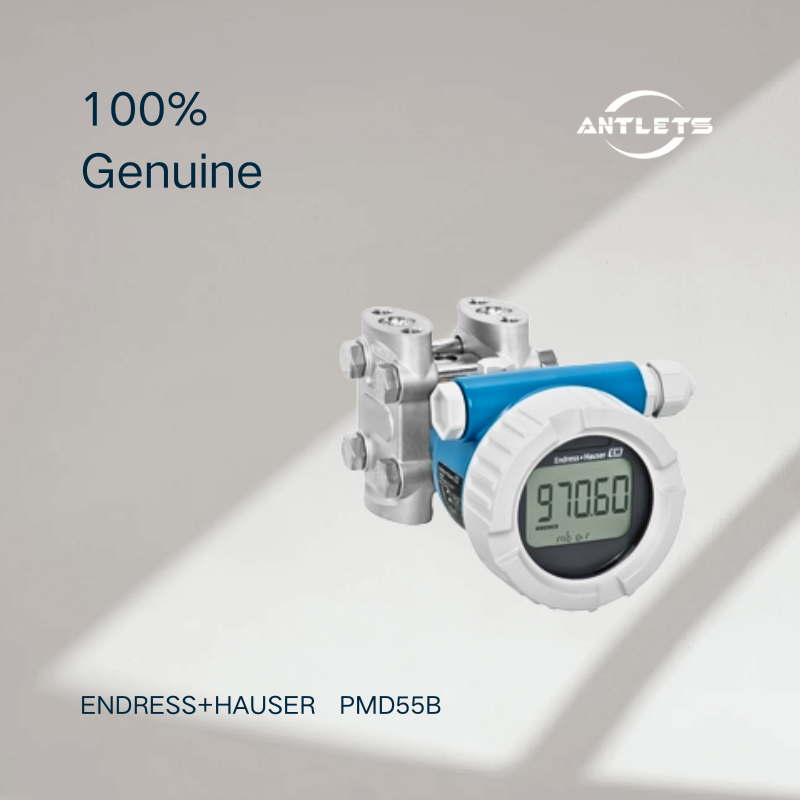

Deltabar PMD55B - differential pressure transmitter

Smart transmitter with metal membrane for differential pressure monitoring in liquids and gases

Specs at a glance

• Accuracy

  Standard:
  up to 0.075 %
  Platinum:
  up to 0.055 %

• Measuring range

  10 mbar...40 bar
  (0.15 psi...600 psi)

• Process temperature

  -40°C...+110°C (-40°F...+230°F)

• Medium temperature range

  -40°C...+110°C
  (-40°F...+230°F)

• Pressure measuring range

  10 mbar.... 40 bar (0.15 psi... 600 psi)

• Main wetted parts

  316L, AlloyC

• Wetted materials

  316L, Alloy

• Measuring cell

  10 mbar.... 40 bar (0.15 psi... 600 psi)

Field of application

This transmitter belongs to the new Deltabar generation. It is robust and easy to operate either locally or remotely. The transmitter can be controlled wireless via app on a mobile device using a secure Bluetooth connection. The PMD55B allows condition-based maintenance which increases efficiency in technical service significantly.
The software is designed to simplify the handling. Intuitive wizards guide you through the setup and proof testing of the device which minimizes operating errors.

Benefits

• Wireless control of the device in the process area with the SmartBlue App without interrupting the process

• Reduce on site accidents and protect equipment when instruments are in difficult to reach areas

• Reduce systematic failures - error free SIL commissioning and instrument guided proof testing
