Endress+Hauser Deltabar FMD77 Differential Pressure Transmitter

$1,480.00

Lorem ipsum is simply dummy text of the printing and typesetting industry lorem ipsum has been the industry's standard dummy text ever since the 1500s

Quantity:
Remove wishlist
Delivery & return Ask a Question

🚚 Item will be delivered on or before

Visa PayPal Mastercard American Express

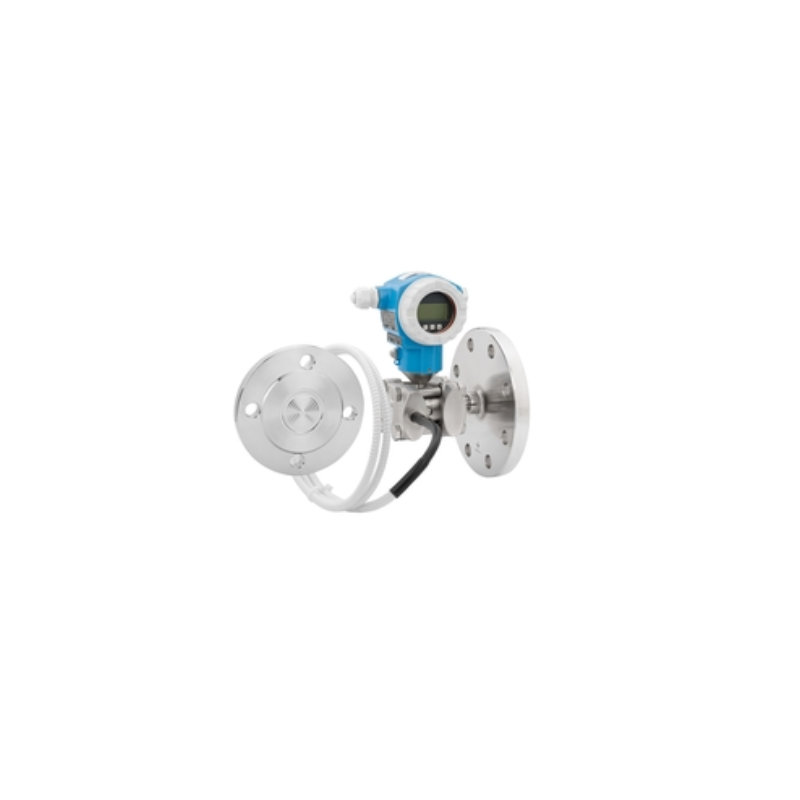

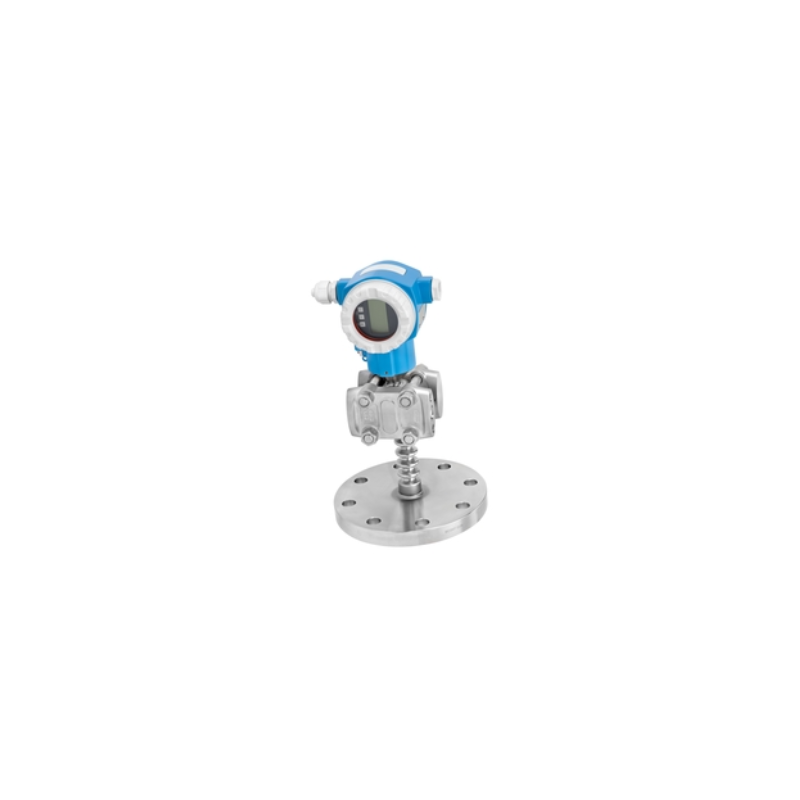

The Deltabar FMD77 differential pressure transmitter with metal sensor uses a one-sided diaphragm seal or diaphragm seals on both sides with a capillary on the low pressure side. Typically used in the process industry for continuous level measurement in liquids. The integrated HistoROM data module makes the management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety applications.

Differential pressure Deltabar FMD77

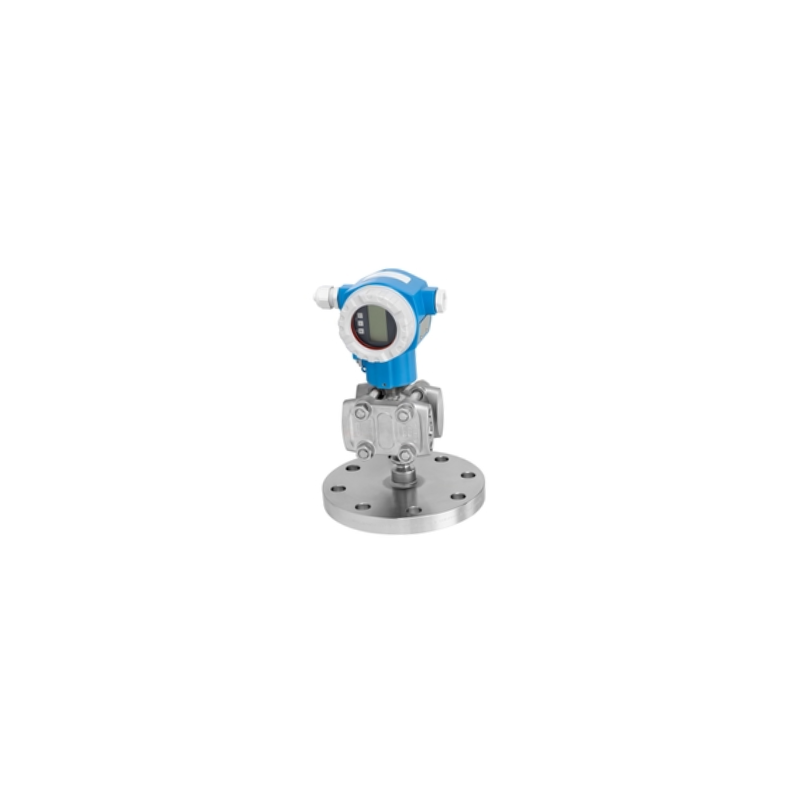

Differential pressure transmitter with one diaphragm seal for level measurement

Specs at a glance

  • Accuracy

    0,075% + influence of diaphragm seal

  • Process temperature

    -40°C...400°C
    (-40°F...752°F)

  • Pressure measuring range

    100mbar...16bar
    (1.5psi...230 psi)

  • Process pressure / max. overpressure limit

    160bar (2400 psi)

  • Main wetted parts

    Alloy C276
    316L
    Monel
    Tantalum

  • Max. measurement distance

    160m (525ft) H2O

  • Material process membrane

    316L, AlloyC,
    Tantal,
    Gold-Rhodium,
    PTFE

  • Measuring cell

    100 mbar...16 bar
    (40 inH20...240 psi)

Field of application

The Deltabar FMD77 differential pressure transmitter with metal sensor uses a one-sided diaphragm seal or diaphragm seals on both sides with a capillary on the low pressure side. Typically used in the process industry for continuous level measurement in liquids. The integrated HistoROM data module makes the management of process and device parameters easy. Designed according to IEC 61508 for use in SIL3 safety applications.



For level, volume or mass measurement in liquids.

  • Process connections: Threads and flanges

  • Temperature: -70 to +400°C (-94 to +752°F)

  • Measuring ranges: +100mbar to +16bar (+1.5 to +240psi)

  • Accuracy: ±0.075%

  • International explosion protection certificates, overfill prevention WHG, hygienic approvals, marine approvals, SIL

Benefits

  • Large variety of different process connections and membrane materials

  • Highest safety due to gas-tight feedthrough with capabilities up to SIL2/3, certified to
    IEC 61508

  • New TempC Membrane minimizes influences of ambient and process temperature fluctuations

  • Easy menu-guided commissioning via local display, 4 to 20 mA with HART, PROFIBUS PA, FOUNDATION Fieldbus

  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

  • Cost savings with modular concept for easy replacement of sensor, display or electronics

  • Seamless and independent system integration (HART/PA/FF)

Vendor Endress+Hauser
Type Pressure Transmitter
