Automatic Cleaning for Optical Sensors

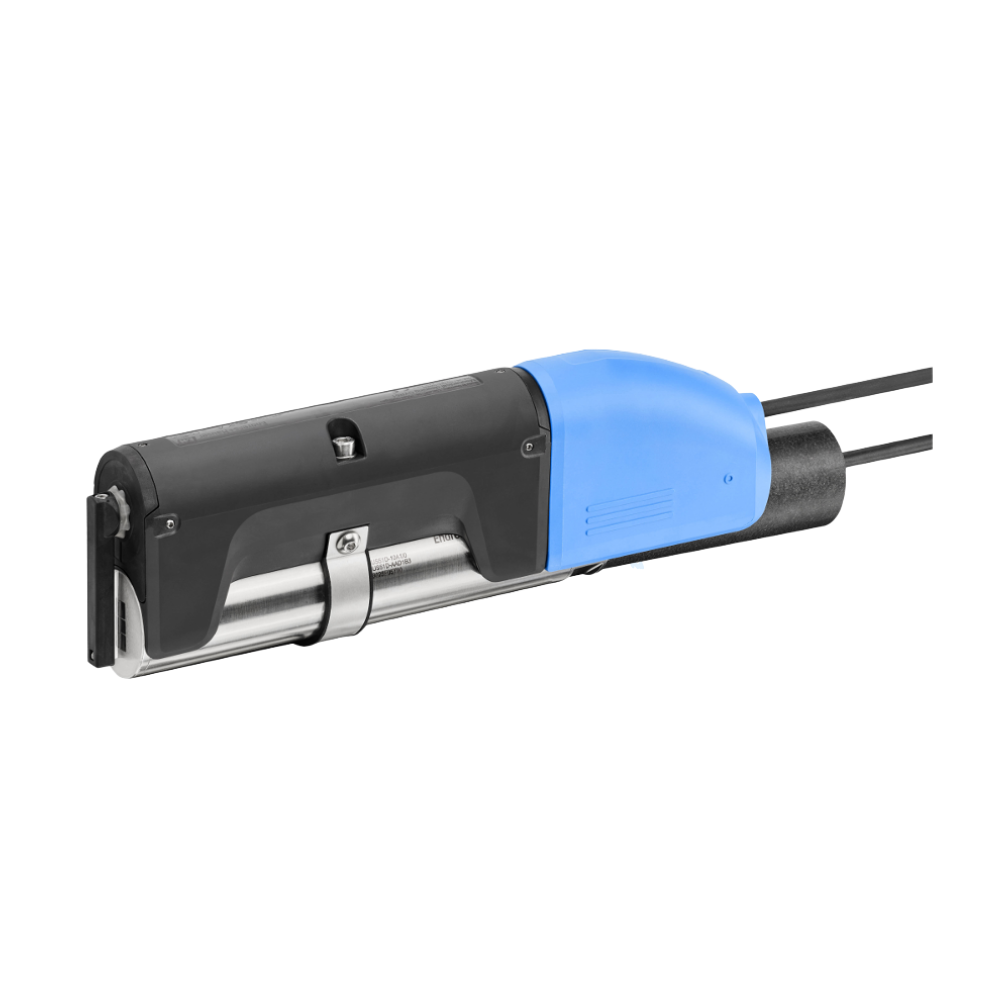

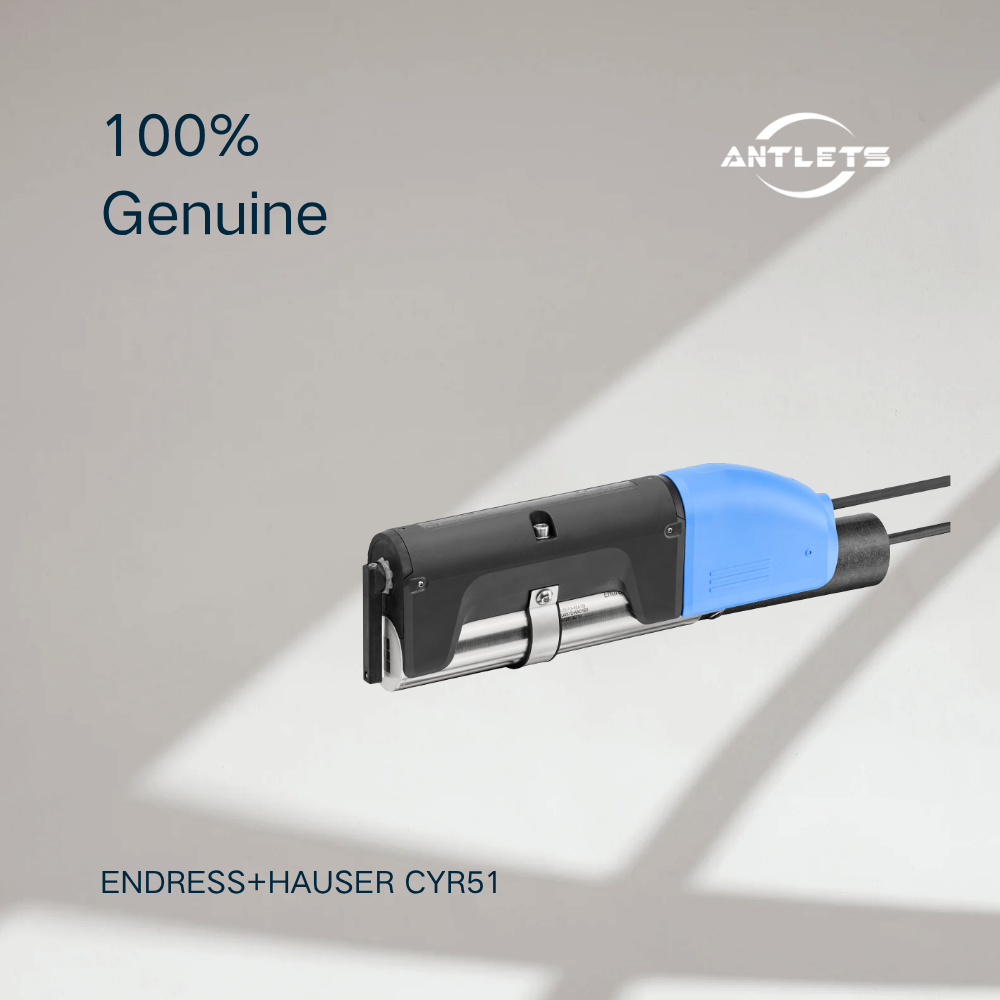

The Endress+Hauser CYR51 is a mechanical cleaning unit developed to maintain reliable operation of optical sensors installed in challenging process conditions.
Optical sensors used in wastewater and process water applications are often exposed to contamination, deposits and biological growth, which can affect measurement accuracy. The CYR51 provides automated mechanical cleaning directly at the measuring point, reducing the need for frequent manual maintenance.
Typical applications include:
Turbidity measurement
Suspended solids monitoring
UV-Vis absorption measurement
Nitrate and SAC monitoring
Mechanical Wiper and Brush Cleaning Principle
The CYR51 uses a mechanical cleaning principle with wiper blades or brushes to remove contamination from the optical surface.
The cleaning process helps:
Maintain stable optical measurement
Reduce sensor fouling
Extend maintenance intervals
Improve long-term measurement reliability
The cleaning unit is designed for continuous operation in environments where sensor surfaces are exposed to particles or deposits.
Compatible with Multiple Optical Sensors
The CYR51 can be integrated with various Endress+Hauser optical sensors.
Compatible sensor applications include:
Turbidity and Suspended Solids Measurement
Compatible with sensors such as:
Turbimax CUS51D
Turbimax CUS52D
Typical applications:
Wastewater treatment
Drinking water monitoring
Industrial water processes
UV-Vis Absorption Measurement
Compatible with optical absorption sensors such as:
Viomax CAS51D
Memosens Wave CAS80E
Typical measurements:
Nitrate
SAC (Spectral Absorption Coefficient)
UV-Vis process monitoring
Reduced Maintenance and Improved Sensor Availability
Manual cleaning of optical sensors can increase maintenance workload and interrupt measurement.
The CYR51 provides:
Automatic cleaning cycles
Reduced manual intervention
Stable measurement conditions
Improved process availability
This makes it especially suitable for measuring points where regular sensor access is difficult.
Easy Integration into Existing Installations
The CYR51 is designed for simple installation and can be integrated into existing sensor installations.
It can be combined with:
Existing optical sensors
Flexdip CYA112 immersion assemblies
Flexdip CYH112 holder systems
This allows users to upgrade existing measuring points with automatic cleaning capability without replacing the complete installation system.
Designed for Water and Industrial Applications
The CYR51 is suitable for a wide range of liquid analysis applications.
Wastewater Treatment
Applications:
Final effluent monitoring
Suspended solids measurement
Turbidity monitoring
Process control
Drinking Water Treatment
Applications:
Raw water monitoring
Filtration processes
Water quality measurement
Surface Water and Process Water
Applications:
Environmental monitoring
Industrial water management
Continuous optical measurement
Key Features
Automatic mechanical cleaning unit for optical sensors
Designed for turbidity and UV-Vis absorption sensors
Wiper and brush cleaning technology
Reduces sensor fouling and maintenance frequency
Supports continuous measurement operation
Compatible with CUS51D, CUS52D, CAS51D and CAS80E sensors
Easy integration with existing installations
Suitable for wastewater, drinking water and process water applications
Durable PPS GF40 construction
Typical Applications
Wastewater Treatment Plants
CYR51 helps maintain reliable optical measurements in wastewater processes.
Applications:
Turbidity monitoring
Suspended solids measurement
Sludge process monitoring
Effluent quality control
Drinking Water Treatment
Used for maintaining accurate optical measurement in clean water applications.
Applications:
Turbidity monitoring
Filtration control
Raw water analysis
Industrial Water Systems
Suitable for:
Process water monitoring
Water recycling systems
Industrial wastewater treatment
FAQ
What is Endress+Hauser CYR51?
CYR51 is an automatic mechanical cleaning unit designed for turbidity and UV-Vis absorption sensors.
Is CYR51 a sensor?
No. CYR51 is not a measuring sensor. It is an accessory cleaning unit used to maintain optical sensors.
Which sensors can use CYR51?
CYR51 can be installed with optical sensors including Turbimax CUS51D, CUS52D, Viomax CAS51D and Memosens Wave CAS80E.
Why is mechanical cleaning needed for optical sensors?
Deposits and contamination on optical windows can affect measurement accuracy. CYR51 removes these deposits automatically to maintain stable measurement performance.
Where is CYR51 mainly used?
It is mainly used in wastewater, drinking water, surface water and industrial process water applications.
