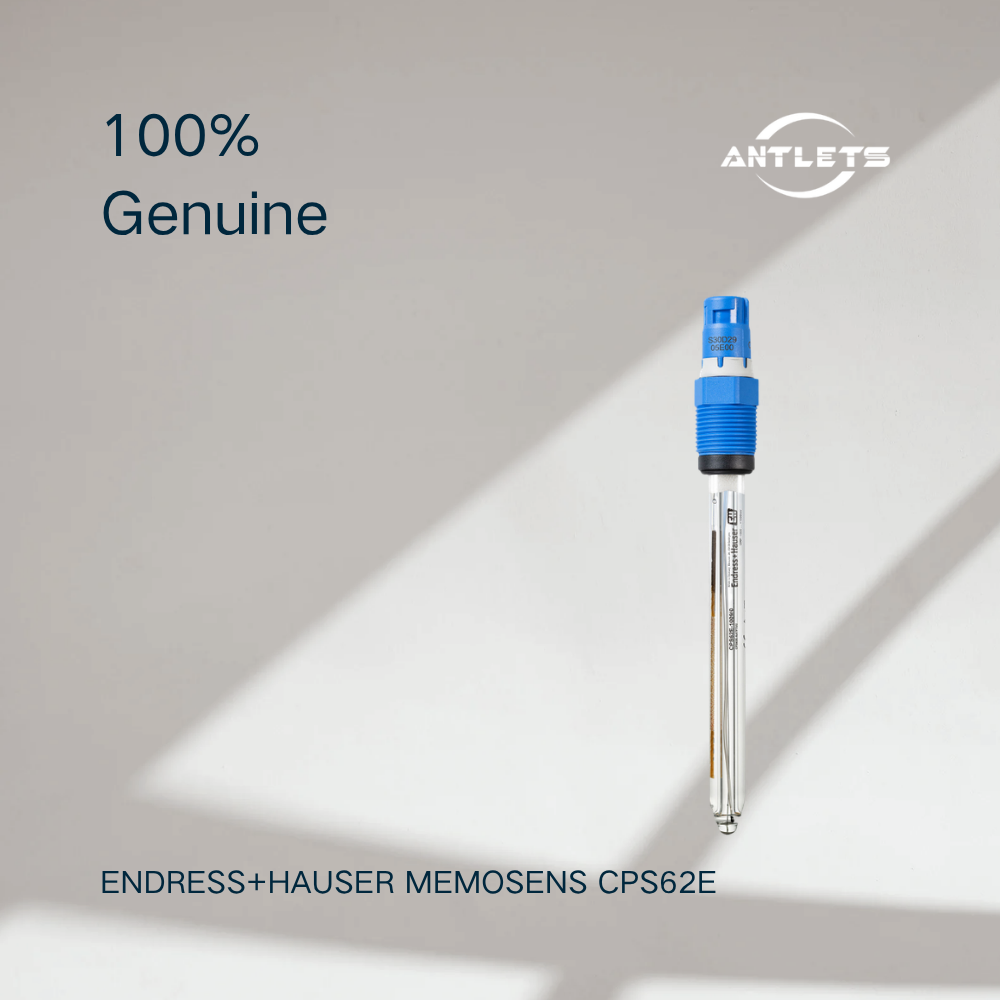

Stable ORP Measurement in Demanding Processes
The CPS62E is designed for applications where ORP measurement can be challenging because of changing process conditions, low conductivity or contamination of the reference system.
Endress+Hauser specifically positions it for processes with rapidly changing ORP values and media containing high levels of electrode poisons such as hydrogen sulfide (H₂S).
Contamination-Resistant Reference System
The sensor uses an advanced gel technology with a ceramic junction and ion trap. This design helps maintain a stable reference in demanding process media and provides improved resistance to contamination.
The ORP measuring element is made of platinum, while the sensor uses a glass shaft and a PPS glass-fiber-reinforced process coupling.
Memosens 2.0 Digital Technology
The CPS62E uses Memosens 2.0 digital technology. Calibration and process information can be stored directly in the sensor, allowing the sensor to be calibrated away from the process and then installed back into the measuring point.
This makes sensor replacement and routine maintenance easier while providing additional data for sensor management and predictive maintenance.
Suitable for Chemical and Hygienic Applications
The CPS62E is designed for both chemical processes and hygienic or sterile applications, including fermenters, biotechnology and life sciences.
Its temperature capability also allows it to handle demanding process and sterilization conditions.
Compact 12 mm Sensor Design
The CPS62E has a 12 mm diameter and is available with shaft lengths of 120, 225 and 360 mm. All shaft lengths include an integrated temperature sensor.
Key Features
Digital ORP / Redox sensor
Memosens 2.0 technology
Measuring range: -1500 to +1500 mV
Platinum ORP measuring element
Advanced gel reference technology
Ceramic junction with ion trap
Contamination-resistant reference system
Suitable for low-conductivity media
Suitable for media containing electrode poisons such as H₂S
Integrated NTC 30K temperature sensor
Sensor diameter: 12 mm
Shaft lengths: 120, 225 and 360 mm
Process temperature: 0 to 100°C
Sterilization temperature: up to 140°C
Process pressure: 0.8 to 14 bar absolute
IP68 ingress protection
Hazardous-area versions available
Suitable for chemical, biotechnology, pharmaceutical and hygienic applications
Typical Applications
Chemical Processing
For ORP measurement in chemical processes where changing redox conditions, contamination or electrode poisons can affect conventional sensors.
Biotechnology
Suitable for ORP monitoring in biotechnological processes where reliable and reproducible measurement is required.
Pharmaceutical & Life Sciences
Designed for hygienic and sterile applications where sensor stability and cleanability are important.
Fermenters
Suitable for monitoring ORP in fermentation processes and other controlled biological production environments.
Low-Conductivity Processes
The CPS62E is designed to maintain stable measurement even in low-conductivity media, making it useful for applications where conventional reference systems can become less reliable.
Processes with H₂S
Suitable for applications where media contain a high proportion of hydrogen sulfide, an electrode poison that can affect conventional ORP measurement.
FAQ
What is the Endress+Hauser CPS62E?
The CPS62E is a digital ORP sensor designed for demanding chemical and hygienic applications. It uses Memosens 2.0 digital sensor technology.
What is the ORP measuring range?
The CPS62E measures from -1500 to +1500 mV.
What is the difference between CPS61E and CPS62E?
The CPS61E is a digital pH sensor, while the CPS62E is a digital ORP sensor. Both are designed for demanding and hygienic process applications.
Is the CPS62E suitable for low-conductivity liquids?
Yes. Endress+Hauser specifically states that its contamination-resistant gel system provides stable measurement in low-conductivity media.
Can the CPS62E be used in processes containing H₂S?
Yes. The sensor is specifically designed for processes with a high proportion of electrode poisons such as H₂S.
What is the maximum process temperature?
The standard process temperature range is 0 to 100°C. The sensor can withstand temperatures up to 140°C for sterilization only.
What is the process pressure range?
The specified process pressure is 0.8 to 14 bar absolute.
Does the CPS62E use Memosens 2.0?
Yes. The CPS62E uses Memosens 2.0 with digital data transmission and storage of calibration and process information.
Is the CPS62E suitable for hazardous areas?
Yes. Versions are available with ATEX, IECEx, CSA C/US, NEPSI, Japan Ex and INMETRO approvals for hazardous areas, including Zones 0, 1 and 2, depending on configuration.
