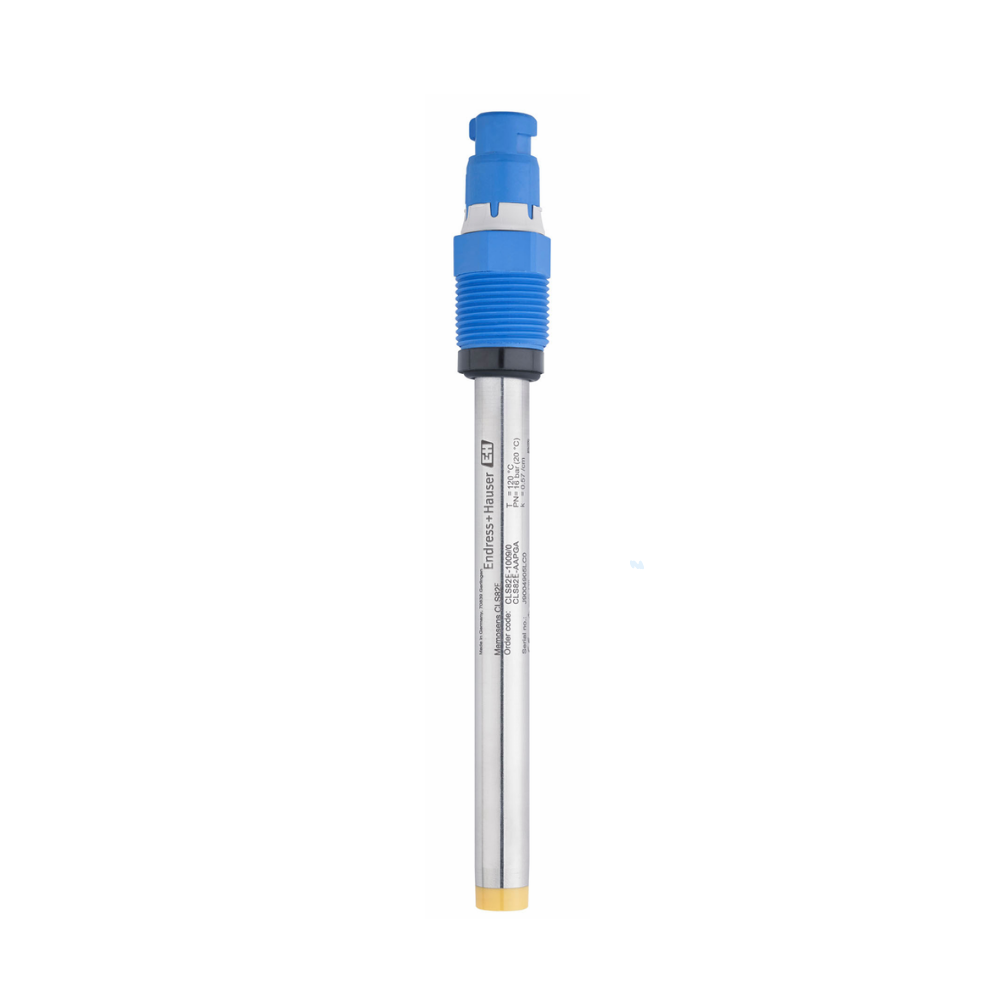

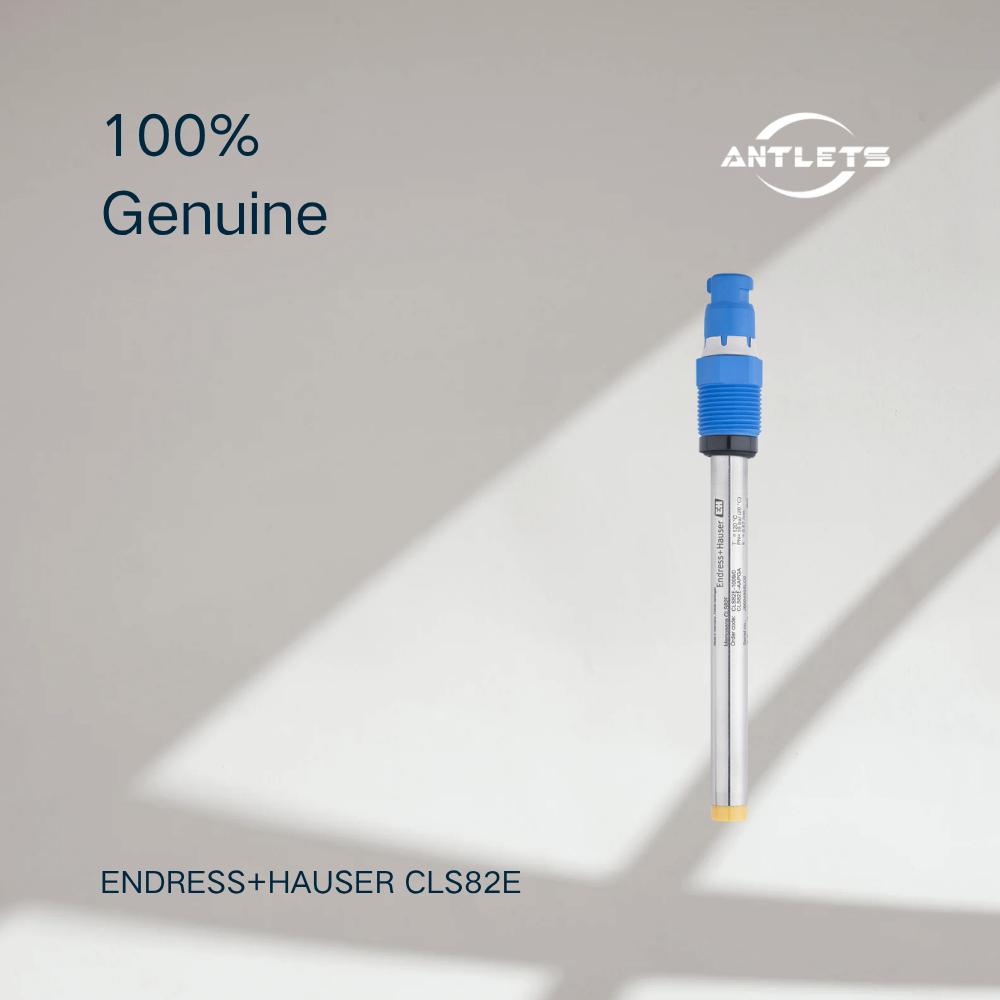

Wide Measuring Range with 4-Electrode Technology

Unlike traditional 2-electrode conductivity sensors, the CLS82E uses a 4-electrode measuring principle to provide stable measurement across a very wide conductivity range.

This allows one sensor to monitor different process stages, reducing the need for multiple sensors in hygienic production environments.

Designed for Hygienic Industries

The CLS82E is developed for applications requiring strict hygiene standards, including:

•
  Pharmaceutical manufacturing

•
  Biotechnology processes

•
  Food and beverage production

•
  Pure water systems


The sensor features FDA-compliant materials and hygienic certifications including EHEDG and 3-A depending on configuration.

One Sensor for Multiple Process Steps

The broad measurement range allows the CLS82E to be used for:

•
  Main process monitoring

•
  Phase separation detection

•
  CIP monitoring

•
  Final rinse monitoring

•
  Ultrafiltration

•
  Fermentation processes


This helps simplify inventory and reduce the number of measuring points required.

Memosens 2.0 Digital Technology

With Memosens 2.0, calibration data and sensor information are stored directly in the sensor.

Benefits include:

•
  Easier sensor replacement

•
  Laboratory calibration

•
  Improved maintenance management

•
  Predictive maintenance support

•
  Better process data availability


Key Features

•
  Digital conductivity sensor

•
  Hygienic 4-electrode conductivity technology

•
  Memosens 2.0 digital technology

•
  Extremely wide measuring range:


  1 µS/cm to 500 mS/cm



•
  Suitable for pharmaceutical, biotech and food applications

•
  Supports process monitoring and final rinse applications

•
  FDA compliant materials

•
  EHEDG and 3-A certified versions available

•
  Sensor material: 316L stainless steel (1.4435)

•
  Measuring element: Platinum and ceramic

•
  Integrated Pt1000 temperature sensor

•
  Process temperature:


  -5 to 120°C


  Sterilization up to 140°C



•
  Process pressure:


  Up to 17 bar abs at 20°C


  Up to 9 bar abs at 120°C



•
  IP68 protection

•
  Hazardous area versions available


Typical Applications

Pharmaceutical Industry

Used for conductivity monitoring in:

•
  Purified water systems

•
  Water for Injection (WFI)

•
  Final rinse monitoring

•
  Pharmaceutical production processes


Biotechnology

Suitable for:

•
  Fermentation processes

•
  Downstream processing

•
  Chromatography

•
  Cell culture applications


Food and Beverage

Used for hygienic process monitoring where conductivity changes indicate:

•
  Product separation

•
  Cleaning process completion

•
  Process quality changes


CIP Monitoring

The CLS82E can monitor conductivity changes during cleaning processes, helping determine cleaning phases and rinse quality.

FAQ

What is the Endress+Hauser CLS82E?

The CLS82E is a digital hygienic conductivity sensor using a 4-electrode measuring principle for demanding pharmaceutical, biotech and food applications.

What is the difference between CLS16E and CLS82E?

CLS16E is mainly designed for high-precision hygienic conductivity measurement, especially pure and ultrapure water applications.

CLS82E uses 4-electrode technology and provides a much wider measuring range, making it suitable for applications where conductivity changes significantly during production processes.

What is the measuring range of CLS82E?

The measuring range is:

1 µS/cm to 500 mS/cm.

Does CLS82E support Memosens 2.0?

Yes. CLS82E uses Memosens 2.0 technology for digital sensor data management and predictive maintenance functions.

Is CLS82E suitable for pharmaceutical applications?

Yes. It is specifically designed for hygienic applications in pharmaceutical, biotechnology and food industries.
