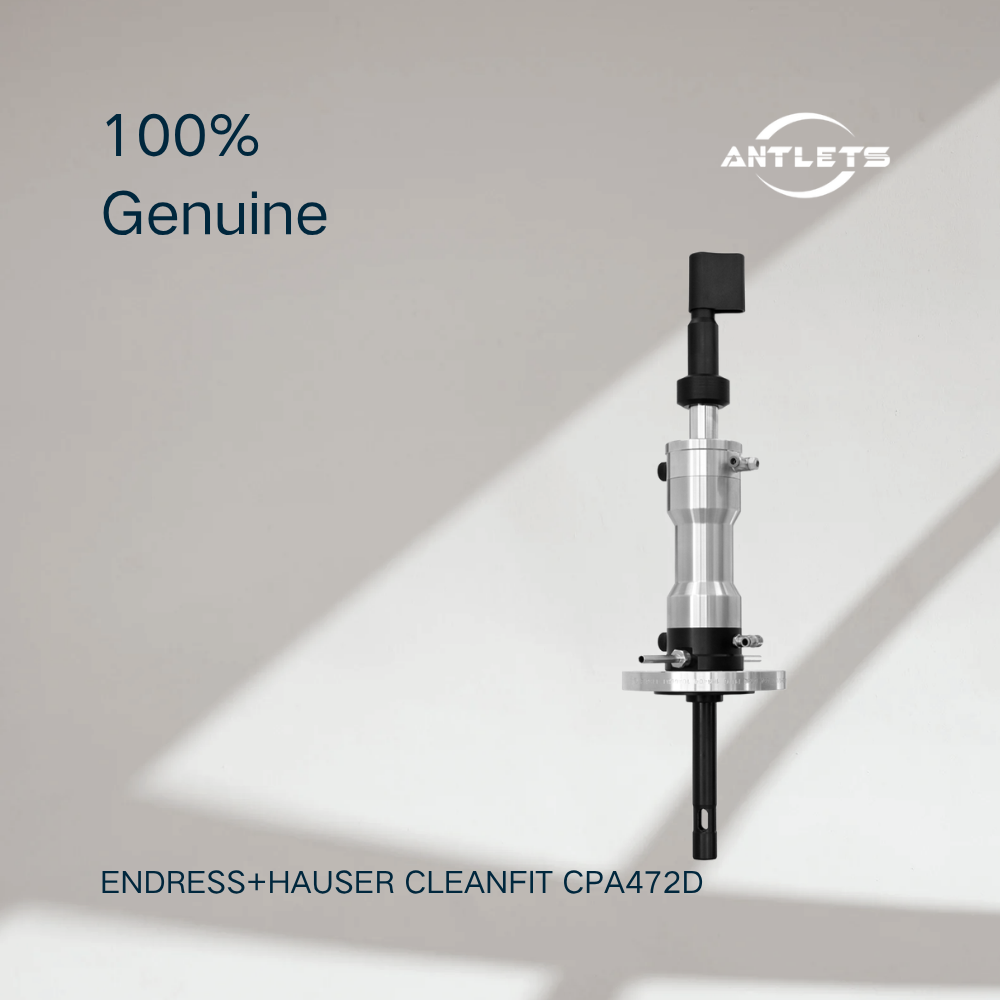

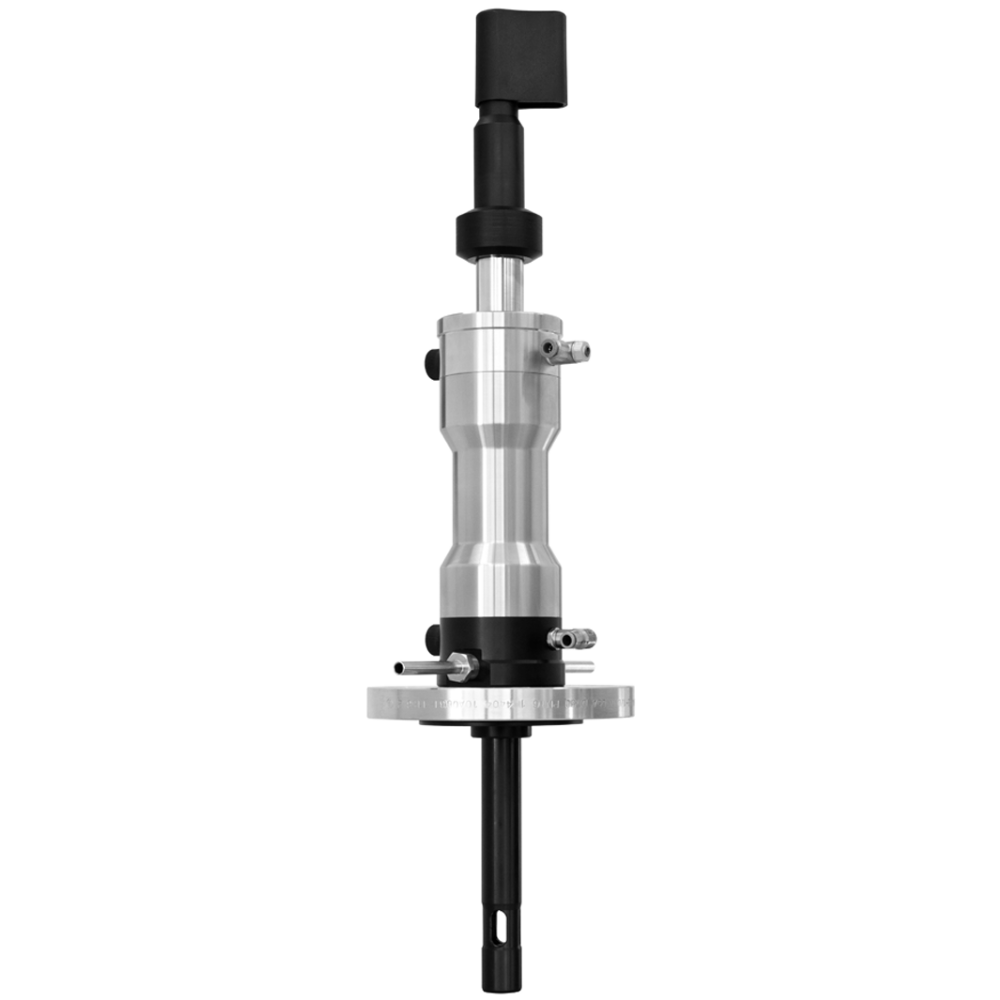

Heavy-Duty Retractable Assembly for Process Analysis
The Cleanfit CPA472D is a retractable process assembly designed for demanding industrial applications where pH, ORP or other process electrodes require regular maintenance.
Rather than permanently fixing the electrode inside the process, the retractable mechanism allows the sensor to be moved between the measuring position and a service position. This provides easier access for maintenance while maintaining process separation during sensor handling.
Manual or Pneumatic Actuation
The CPA472D is available with manual or pneumatic actuation, allowing the assembly to be matched to different operating requirements.
Manual versions can be operated directly at the measuring point, while pneumatic versions can be integrated into installations where automated sensor handling is required.
Sensor Maintenance Without Process Interruption
One of the main advantages of the CPA472D is the ability to perform electrode maintenance without stopping the process.
Endress+Hauser specifically highlights that the assembly allows electrode cleaning and calibration without process interruption, helping reduce maintenance time and associated operating costs.
Designed for Harsh Process Conditions
The CPA472D is designed for applications involving high pressure, high temperature and aggressive media.
Endress+Hauser describes the assembly as a heavy-duty solution with a broad selection of rugged materials, allowing the construction to be adapted to demanding chemical and industrial process environments.
Flexible Immersion Depth
Depending on configuration, the CPA472D is available with immersion depths of 146 mm or 280 mm.
These configurations allow the assembly to be adapted to different vessel and pipe installations while maintaining the retractable sensor arrangement.
Multiple Construction Materials
The electrode holder, rinse chamber and raised face can be configured with materials including PEEK, PVDF, conductive PVDF, Alloy C22 and stainless steel 1.4571.
Different sealing materials are also available, including EPDM, FPM (Viton) and FFKM (Kalrez). This material flexibility allows the assembly to be matched to different process media and chemical conditions.
Process Connections for Tanks and Pipes
The CPA472D can be installed in tanks, process vessels and pipelines, including pipes with a minimum nominal diameter of DN80.
Depending on configuration, process connections include DN50 and DN80 flanges, ANSI 2", JIS IS10K50A and G1¼ internal thread.
Process Pressure up to 10 bar
The allowable process pressure depends on the actuation method.
The current Endress+Hauser specifications list up to 4 bar overpressure for manual actuation and up to 10 bar overpressure for pneumatic actuation. The applicable pressure must be checked against the selected configuration and operating temperature.
Process Temperature up to 140°C
The CPA472D is specified for process temperatures from 0 to 140°C.
This temperature capability, combined with the heavy-duty construction and chemical-resistant material options, allows the assembly to be used in demanding industrial process environments.
Suitable for Chemical and Power Applications
Endress+Hauser specifically identifies the CPA472D for chemical industry, power plants and biodiesel plants, as well as plant-design applications involving tanks, process vessels and pipes.
Key Features
- Product type: Heavy-duty retractable process assembly
- Designed for pH, ORP and other industrial electrodes
- Manual or pneumatic actuation
- Electrode replacement without process interruption
- Cleaning and calibration without stopping the process
- Immersion depth 146 or 280 mm
- Process temperature 0 to +140°C
- Process pressure up to 4 bar with manual actuation
- Process pressure up to 10 bar with pneumatic actuation
- PEEK, PVDF, conductive PVDF, Alloy C22 and stainless steel 1.4571 material options
- EPDM, FPM (Viton) and FFKM (Kalrez) sealing options
- DN50 and DN80 flange options
- ANSI 2" and JIS IS10K50A options
- G1¼ internal thread option
- Suitable for pipes from DN80
- Rinse chamber options available
- Designed for aggressive and demanding process media
- Suitable for chemical, power and biodiesel applications
- Optional pneumatic and proximity-switch configurations depending on selected version
Typical Applications
Chemical Processing
The CPA472D is designed for chemical process installations where electrodes are exposed to aggressive media and require regular cleaning, calibration or replacement.
Its heavy-duty construction and corrosion-resistant material options allow the assembly to be configured for demanding chemical applications.
Power Plants
The assembly can be used for pH and ORP measurement points in power-generation and utility processes where reliable sensor maintenance access is required.
The retractable design allows electrodes to be serviced while the process remains in operation where the selected configuration and process conditions permit.
Biodiesel Plants
Endress+Hauser lists biodiesel plants among the application areas for the CPA472D.
The heavy-duty retractable design can provide a practical installation arrangement for process analysis sensors exposed to demanding media.
Process Tanks and Vessels
The CPA472D can be installed in tanks and process vessels where pH or ORP electrodes need to be accessible for regular maintenance.
The retractable mechanism allows the electrode to be moved out of the process for service without requiring the vessel to be emptied.
Large Process Pipes
The assembly is suitable for pipelines and pipes with a minimum nominal diameter of DN80.
Its available immersion depths and multiple process connection options provide flexibility for larger-pipe installations.
Processes with Aggressive Media
The available construction and sealing materials allow the CPA472D to be configured for applications involving chemically demanding process media.
Material selection should be matched to the specific medium, temperature and pressure conditions.
FAQ
What is the Endress+Hauser Cleanfit CPA472D?
The CPA472D is a heavy-duty retractable process assembly for installing pH, ORP and other industrial electrodes in tanks, process vessels and pipes. It is an assembly rather than a measuring sensor itself.
What sensors can be installed in the CPA472D?
Endress+Hauser's technical documentation describes the CPA472D for pH, ORP and other industry electrodes. The exact compatible electrode depends on the selected configuration.
Is the CPA472D manual or automatic?
Both options are available. The CPA472D can be configured with manual or pneumatic actuation.
Can the electrode be replaced while the process is running?
The retractable design is intended to allow electrode replacement and maintenance without interrupting the process, provided the assembly is correctly configured and operated within its specified process conditions. Endress+Hauser specifically highlights maintenance without process interruption.
What is the maximum process temperature?
The specified process temperature range is 0 to +140°C.
What is the maximum process pressure?
The maximum pressure depends on the actuation method: up to 4 bar overpressure for manual actuation and up to 10 bar overpressure for pneumatic actuation.
What immersion depths are available?
The current Endress+Hauser specifications list immersion depths of 146 mm and 280 mm.
What materials are available?
Depending on configuration, the electrode holder, rinse chamber and raised face can use PEEK, PVDF, conductive PVDF, Alloy C22 or stainless steel 1.4571. Sealing options include EPDM, FPM (Viton) and FFKM (Kalrez).
What process connections are available?
Available connections include DN50 and DN80 flanges, ANSI 2", JIS IS10K50A and G1¼ internal thread, depending on configuration.
Where is the CPA472D typically used?
Endress+Hauser identifies the chemical industry, power plants and biodiesel plants as application areas, along with tanks, process vessels and pipes.
Does the CPA472D support automatic cleaning and calibration?
The retractable assembly itself allows the electrode to be retracted for maintenance. Endress+Hauser also states that the CPA472D can be integrated with an optional control system for automatic cleaning and calibration.
Is the CPA472D suitable for aggressive media?
Yes. The product is specifically designed for harsh process conditions and offers multiple construction and sealing materials for adaptation to aggressive media. The selected materials should be verified against the actual process medium.
