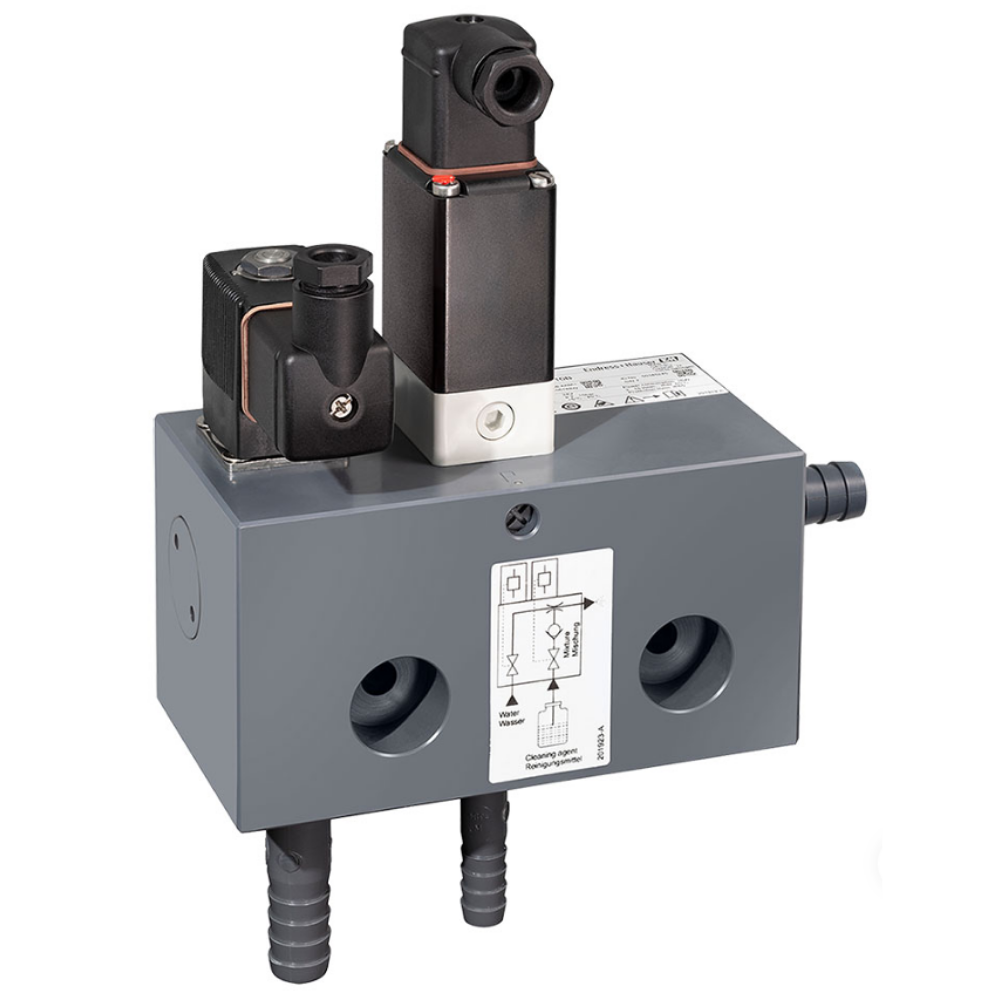

The Chemoclean CYR10B is a cleaning injector for automated sensor cleaning systems. It is designed for spray cleaning and retractable assemblies and combines cleaning concentrate dosing with the rinsing process.
Instead of using a separate dosing pump, the injector uses motive water to generate negative pressure. This vacuum effect draws the cleaning liquid into the system, where it is used together with the motive water for sensor cleaning. The dosing ratio between motive water and cleaning concentrate can be adjusted.
The cleaning cycles can be controlled through the Chemoclean functionality of Liquiline CM44 transmitters, allowing individually configurable cleaning and rinsing sequences.
The CYR10B is particularly intended for cleaning pH/ORP, oxygen and turbidity sensors in liquid analysis applications.
Key Features
- Motive-water-driven vacuum dosing without an additional dosing pump
- Adjustable ratio between motive water and cleaning concentrate
- Supports automated flushing and sensor cleaning cycles
- Designed for spray cleaning and retractable assemblies
- Suitable for pH and ORP sensors
- Suitable for oxygen sensors
- Suitable for turbidity sensors
- Cleaning control via Chemoclean functionality of Liquiline CM44 transmitters
- PVC flushing block for high chemical resistance
- Wall or mounting-plate installation
- Designed for automated sensor cleaning systems
Suitable Applications
pH and ORP Sensor Cleaning
The CYR10B can be integrated into automated cleaning systems for pH and ORP sensors where regular spray cleaning is required to maintain sensor performance.
Oxygen Sensor Cleaning
The injector can be used as part of automated cleaning arrangements for oxygen sensors in industrial liquid analysis systems.
Turbidity Sensor Cleaning
For turbidity measurement points exposed to fouling or contamination, the CYR10B provides a way to automate cleaning and rinsing cycles.
Automated Liquid Analysis Systems
The CYR10B is suitable when sensor cleaning needs to be incorporated into an automated measurement system, particularly where Chemoclean and Liquiline CM44 functionality is used to control the cleaning sequence.
Selection Notes
The CYR10B should be selected when the project requires automated dosing of cleaning concentrate and sensor spray cleaning without installing a separate dosing pump.
Before ordering, confirm the complete cleaning arrangement, including the sensor or retractable assembly, cleaning medium, motive-water conditions, tubing/connections and the control system.
The CYR10B is a cleaning-system component rather than a measuring sensor. It should therefore be selected as part of the overall sensor cleaning system rather than as an independent measurement device.
The official product page identifies Liquiline CM44 transmitters with Chemoclean functionality as the cleaning-control platform.
The official page lists the flushing-block material as PVC and describes the injector as using a vacuum pump driven by motive water.
FAQ
What is the Endress+Hauser CYR10B?
The CYR10B is a Chemoclean cleaning injector used to build automated cleaning systems for liquid analysis sensors.
How does the CYR10B dose cleaning concentrate?
It uses motive water to create a negative pressure. This vacuum draws the cleaning concentrate into the system, so an additional dosing pump is not required.
Which sensors can be cleaned with the CYR10B?
The official Endress+Hauser product page specifies pH/ORP, oxygen and turbidity sensors as applications for the cleaning system.
Does the CYR10B require a separate dosing pump?
No. Its vacuum-based dosing principle uses motive water to draw in the cleaning concentrate, allowing cleaning and flushing cycles without an additional dosing pump.
Can the dosing ratio be adjusted?
Yes. Endress+Hauser specifies an adjustable dosing ratio between motive water and cleaning concentrate.
How is the cleaning cycle controlled?
The cleaning control is carried out using the Chemoclean functionality of Liquiline CM44 transmitters, which allows cleaning and rinsing cycles to be individually configured.
What material is the CYR10B flushing block made of?
The official product specifications list PVC as the material.
Is the CYR10B a sensor?
No. It is a cleaning injector and dosing component used as part of an automated liquid analysis sensor cleaning system.
