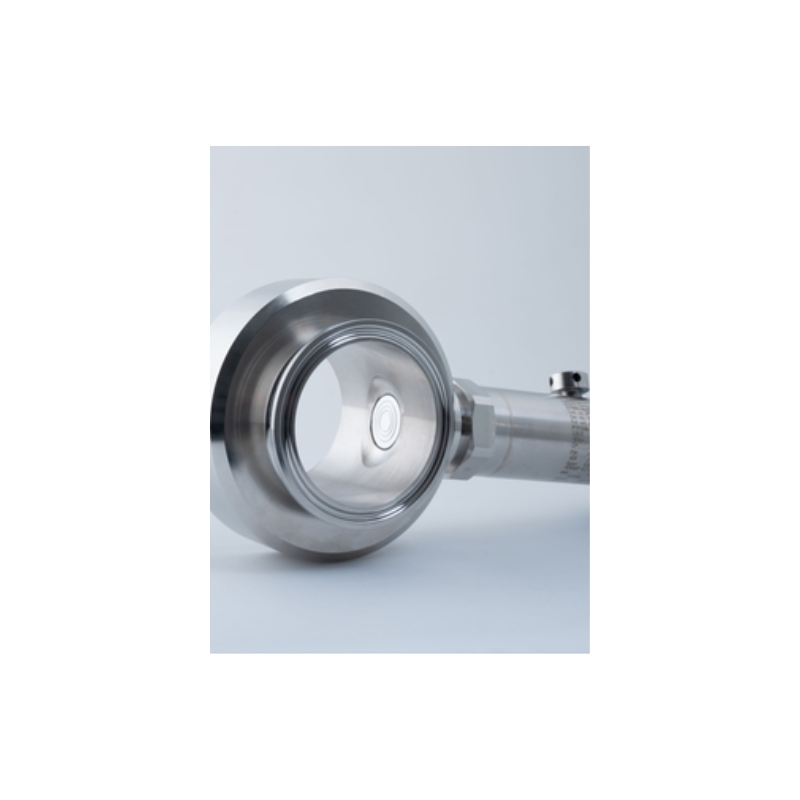

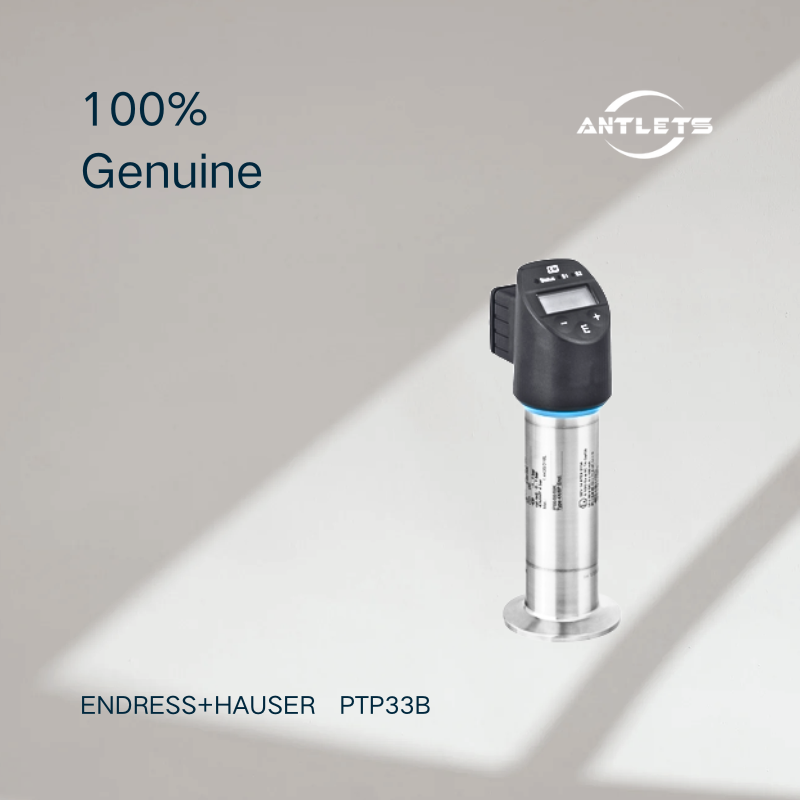

The Ceraphant PTP33B is a price-attractive pressure switch with metal diaphragm for safe measurement and monitoring of absolute and gauge pressure. The pressure switch with compact design is extremely stable and overload resistant. PTP33B with stainless steal housing is 3-A and EHEDG approved. The IO-Link capability allows easy integration and parametrization of the device.
Cost-effective pressure switch with fully welded metal sensor for use in hygienic applications
+400 mbar....+40 bar
(+6 psi....+600 psi)
The Ceraphant PTP33B is a price-attractive pressure switch with metal diaphragm for safe measurement and monitoring of absolute and gauge pressure. The pressure switch with compact design is extremely stable and overload resistant. PTP33B with stainless steal housing is 3-A and EHEDG approved. The IO-Link capability allows easy integration and parametrization of the device.
Pressure switch for monitoring absolute and gauge pressures in gases, vapors, liquids and dusts.
Process connections: Hygienic connections, threads
Process temperature: -10 to +100°C (+14 to +212°F); +135°C (275°F) for max. 1h
Process pressure: 400mbar to +40bar (6 to +600psi)
Accuracy: up to ±0.3%
Integrated switching electronics for decentral and economic process monitoring and control
Function check and information on site thanks to LEDs and digital display
Compact pressure transducer for hygienic applications
Suitable for CIP/SIP cleaning
Small flush mounted hygienic process connections with 3-A and EHEDG certification
IO-Link reduces costs and complexity due to easy configuration and flexible integration in all fieldbus systems.
| Vendor | Endress+Hauser |
|---|---|
| Type | Pressure Switch |
