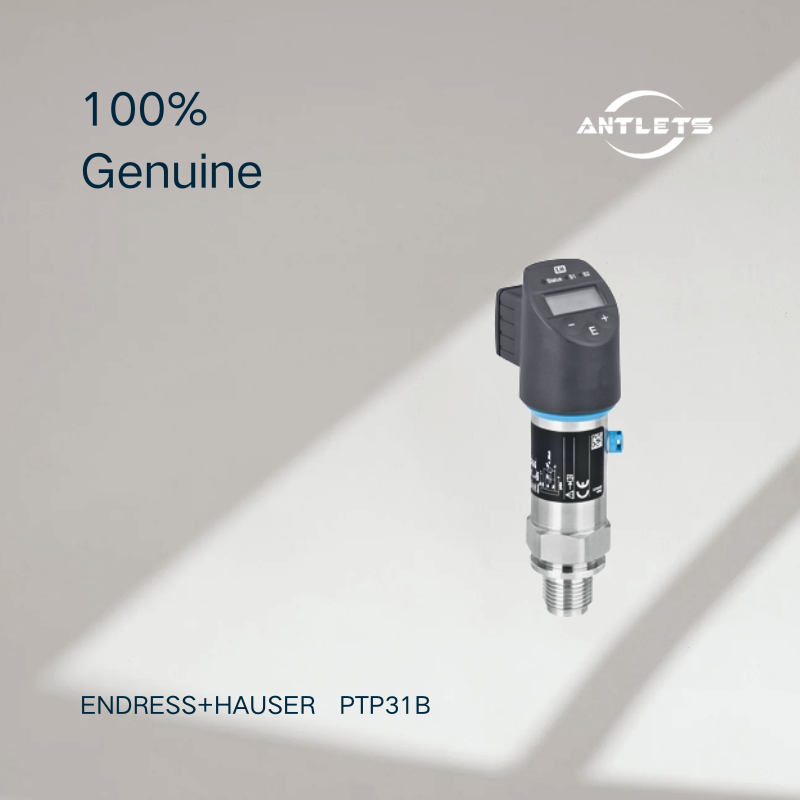

The Ceraphant PTP31B is a price-attractive pressure switch with piezoresistive sensor for safe measurement and monitoring of absolute and gauge pressure. The pressure switch with compact design is extremely stable and overload resistant for up to +400 bar. The IO-Link capability allows easy integration and parametrization of the device.
Cost-effective pressure switch with welded metal sensor for measurement in gases, steams or liquids
+400 mbar....+400 bar
(+6 psi...+6000 psi)
The Ceraphant PTP31B is a price-attractive pressure switch with piezoresistive sensor for safe measurement and monitoring of absolute and gauge pressure. The pressure switch with compact design is extremely stable and overload resistant for up to +400 bar. The IO-Link capability allows easy integration and parametrization of the device.
Pressure switch with metallic sensor diaphragm for monitoring absolute and gauge pressures in gases, vapors, liquids and dusts.
Process connections: Threads
Process temperature: -40 up to +100Ā°C (-40 to +212Ā°F)
Process pressure: 400mbar to +400bar (6 to +6,000psi)
Accuracy: up to Ā±0.3%
Integrated switching electronics for decentral and economic process monitoring and control
Function check and information on-site thanks to LEDs and digital display
Overload-resistant sensor up to 400bar
Small flush mounted process connections
IO-Link reduces costs and complexity due to easy configuration and flexible integration in all fieldbus systems.
| Vendor | Endress+Hauser |
|---|---|
| Type | Pressure Switch |
