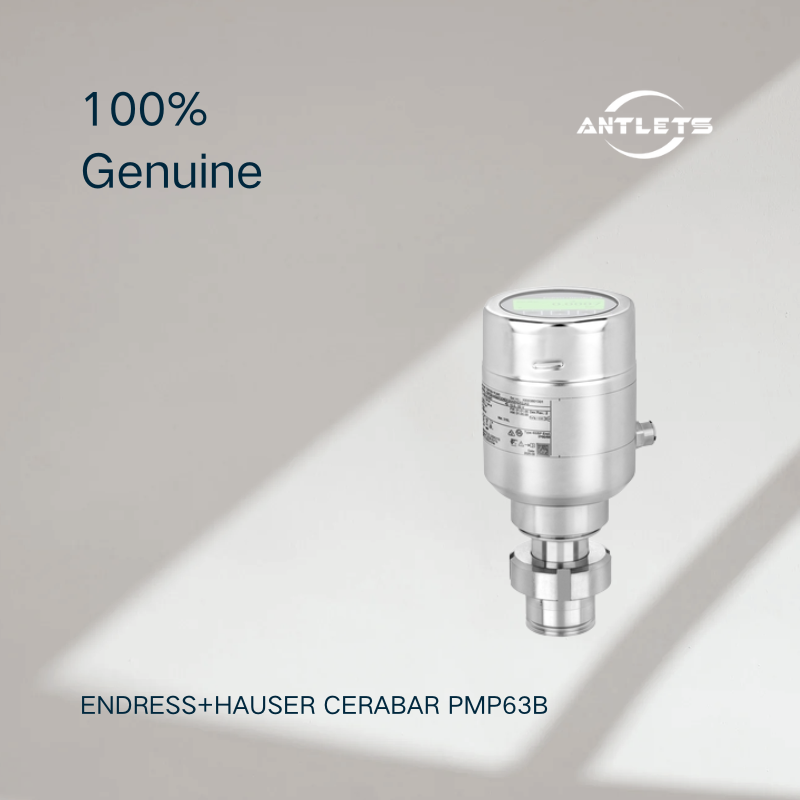

Endress+Hauser Cerabar PMP63B – High-Accuracy Pressure Transmitter

The Cerabar PMP63B is a digital pressure transmitter designed for accurate measurement of hydrostatic level, absolute pressure and gauge pressure in liquids and gases. It combines a modular design with a piezoresistive sensor and diaphragm seal, providing a flexible solution for demanding pressure and level measurement applications.

With accuracy down to 0.025%, advanced diagnostics and multiple communication options, the PMP63B is suited to applications where measurement performance, process compatibility and long-term stability are important.

High Accuracy for Demanding Measurement Tasks

The PMP63B offers a standard accuracy of up to 0.05%, while the optional Platinum version achieves accuracy of up to 0.025%. Its measuring cells cover pressure ranges from 100 mbar to 100 bar, allowing the transmitter to be configured for different pressure measurement requirements.

Key performance:

•
  Accuracy: Up to ±0.025% with Platinum version

•
  Pressure measuring range: 100 mbar to 100 bar

•
  Measurement: Absolute and gauge pressure

•
  Hydrostatic level: Suitable for level measurement in liquids

•
  Process temperature: –40 to +125 °C standard

•
  Diaphragm seal temperature: Up to 250 °C depending on configuration

•
  Maximum overpressure: 400 bar

•
  Ambient temperature: –40 to +85 °C

•
  Process membrane: 316L or Alloy C

•
  Turn-down: Up to 100:1

•
  Long-term stability: 0.05% of URL/year


Flexible Diaphragm Seal Solutions

The PMP63B can be equipped with different diaphragm seal configurations, making it suitable for processes where the pressure transmitter needs additional protection from the process medium.

For demanding temperature conditions, diaphragm seal configurations can support process temperatures up to 250 °C. The device is also available with Contite technology, which provides enhanced resistance to condensation and helps protect the measuring cell in challenging process environments.

One Transmitter for Pressure and Hydrostatic Level

The PMP63B is designed to measure both pressure and hydrostatic level, providing flexibility when the same measurement principle needs to be applied across different process applications.

Typical applications include:

•
  Hydrostatic level measurement

•
  Absolute pressure measurement

•
  Gauge pressure measurement

•
  Process pressure monitoring

•
  Pressure measurement in liquids and gases

•
  Applications requiring diaphragm seals

•
  Hygienic process applications


Modern Communication and Digital Integration

The PMP63B supports several communication technologies depending on the selected configuration. Available interfaces include 4–20 mA HART, PROFINET over Ethernet-APL and PROFIBUS PA.

Bluetooth wireless communication through the SmartBlue App provides convenient access for operation and maintenance, while the available HistoROM function helps simplify device configuration and data management.

Long-Term Stability and Advanced Diagnostics

The transmitter is designed for stable measurement over long operating periods, with specified long-term stability of 0.05% of URL per year. Integrated diagnostic functions and Heartbeat Technology provide additional tools for device verification and condition monitoring.

The guided commissioning wizard also helps simplify configuration, proof testing and verification during startup and maintenance.

Hygienic and Hazardous-Area Options

Depending on configuration, the PMP63B can be supplied with a range of international hazardous-area and process approvals, including ATEX, IECEx, INMETRO, NEPSI and UK Ex options.

For hygienic applications, available approvals and declarations include 3-A, cGMP and ASME-BPE, while drinking-water options include KTW and NSF approvals.

Frequently Asked Questions

What is the Cerabar PMP63B used for?

The PMP63B is used for hydrostatic level, absolute pressure and gauge pressure measurement in liquids and gases.

What is the accuracy of the PMP63B?

The standard version provides accuracy up to 0.05%, while the Platinum version can achieve up to 0.025% accuracy.

What pressure range does the PMP63B cover?

The available pressure measuring range is 100 mbar to 100 bar, depending on the selected measuring cell.

What is the maximum process temperature?

The standard process temperature range is –40 to +125 °C. With suitable diaphragm seal configurations, the process temperature can reach up to 250 °C.

What communication protocols are supported?

Depending on configuration, the PMP63B supports 4–20 mA HART, PROFINET over Ethernet-APL and PROFIBUS PA, with Bluetooth available for wireless operation and maintenance.

Does the PMP63B support hazardous-area applications?

Yes. Various configurations are available with international hazardous-area approvals, including ATEX, IECEx, INMETRO, NEPSI and UK Ex.
