This transmitter belongs to the new Cerabar generation. It combines robustness with numerous benefits: e.g. easiest local or remote operation and condition-based maintenance.
The software is designed to simplify the handling. Intuitive wizards guide you through the commissioning and proof testing of the device which minimizes operating errors. The transmitter can be remotely controlled via app on a mobile device and a secure Bluetooth connection.

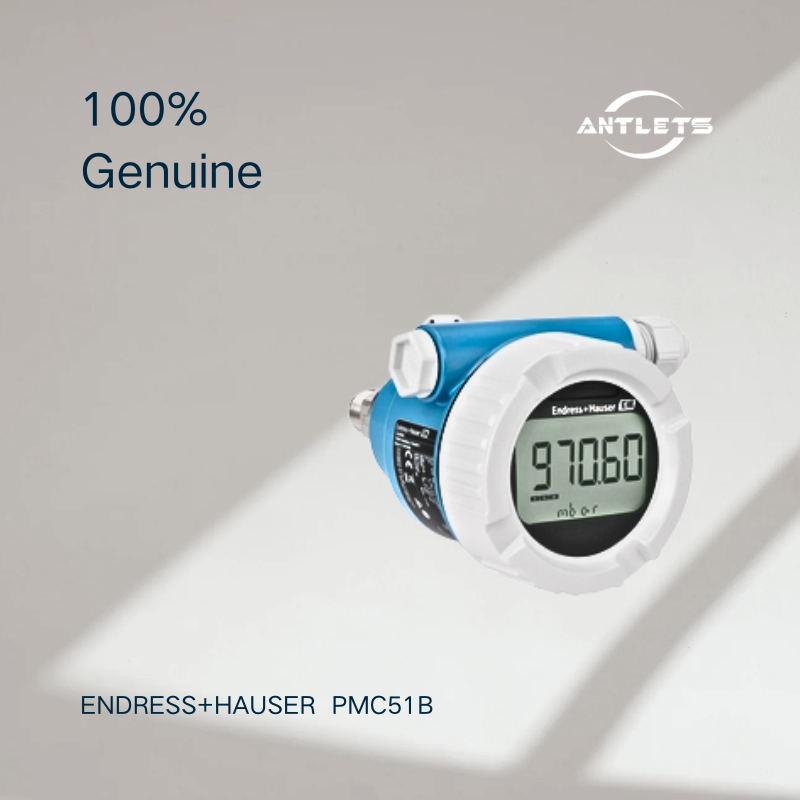

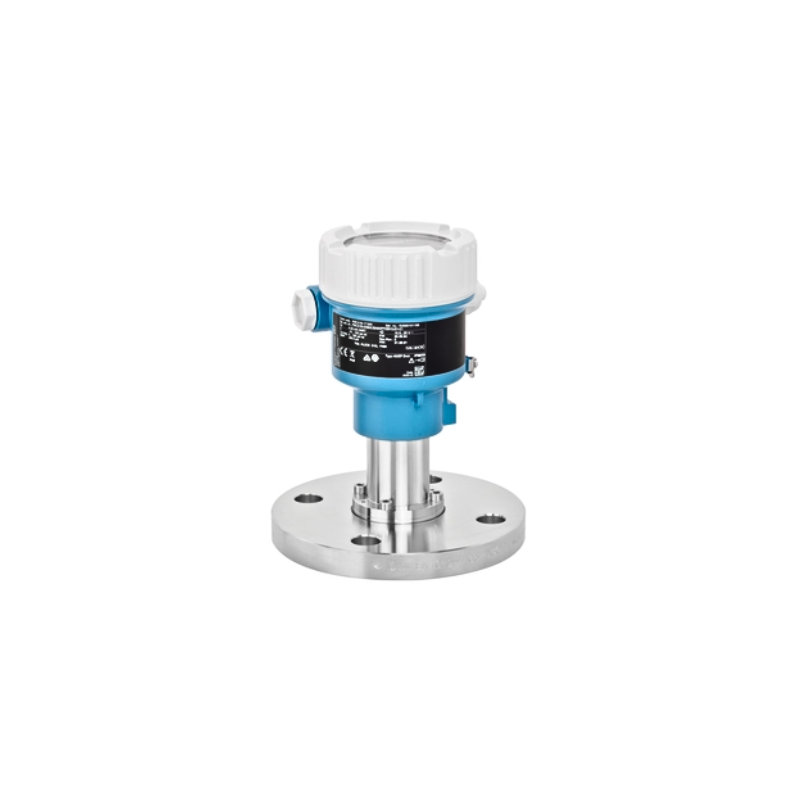

Cerabar PMC51B - pressure transmitter

Smart transmitter with ceramic membrane for highly accurate measurement of liquids and gases

Specs at a glance

• Accuracy

  Standard:
  up to 0.075 %
  Platinum:
  up to 0.055 %

• Process temperature

  -40°C...+100°C
  (-40°F...+212°F)

• Pressure measuring range

  100 mbar...40 bar
  (1.5 psi...600 psi)

• Main wetted parts

  Ceraphire ceramic
  FKM, EPDM, HNBR,
  Perlast, Kalrez

• Material process membrane

  Ceramic

• Measuring cell

  100 mbar...40 bar
  (1.5 psi...600 psi)

Field of application

This transmitter belongs to the new Cerabar generation. It combines robustness with numerous benefits: e.g. easiest local or remote operation and condition-based maintenance.
The software is designed to simplify the handling. Intuitive wizards guide you through the commissioning and proof testing of the device which minimizes operating errors. The transmitter can be remotely controlled via app on a mobile device and a secure Bluetooth connection.

Benefits

• Wireless control of the device in the process area with the SmartBlue App. Process interruption is not necessary.

• Reduce systematic failures - error free SIL commissioning and instrument guided proof testing

• Reduce on site accidents and protect equipment when instruments are in difficult to reach areas
