Flow Assembly for Optical Water Quality Measurement

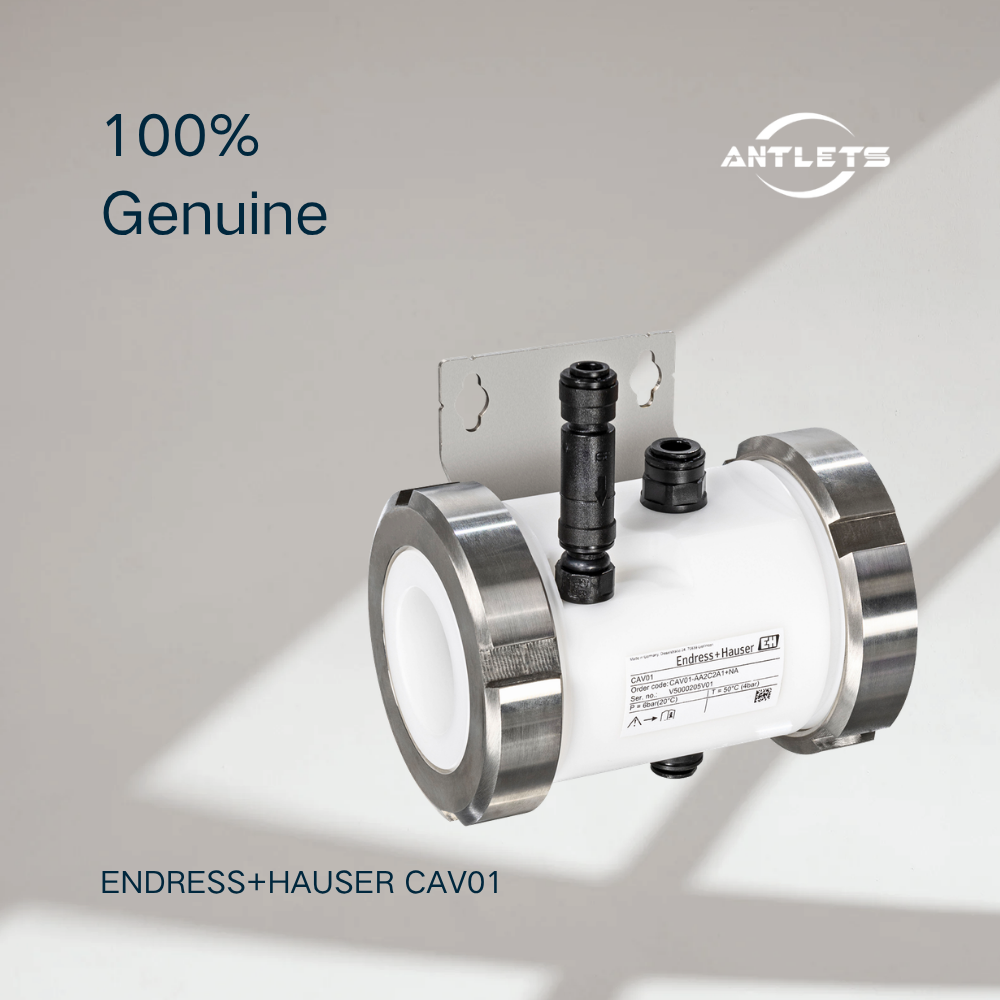

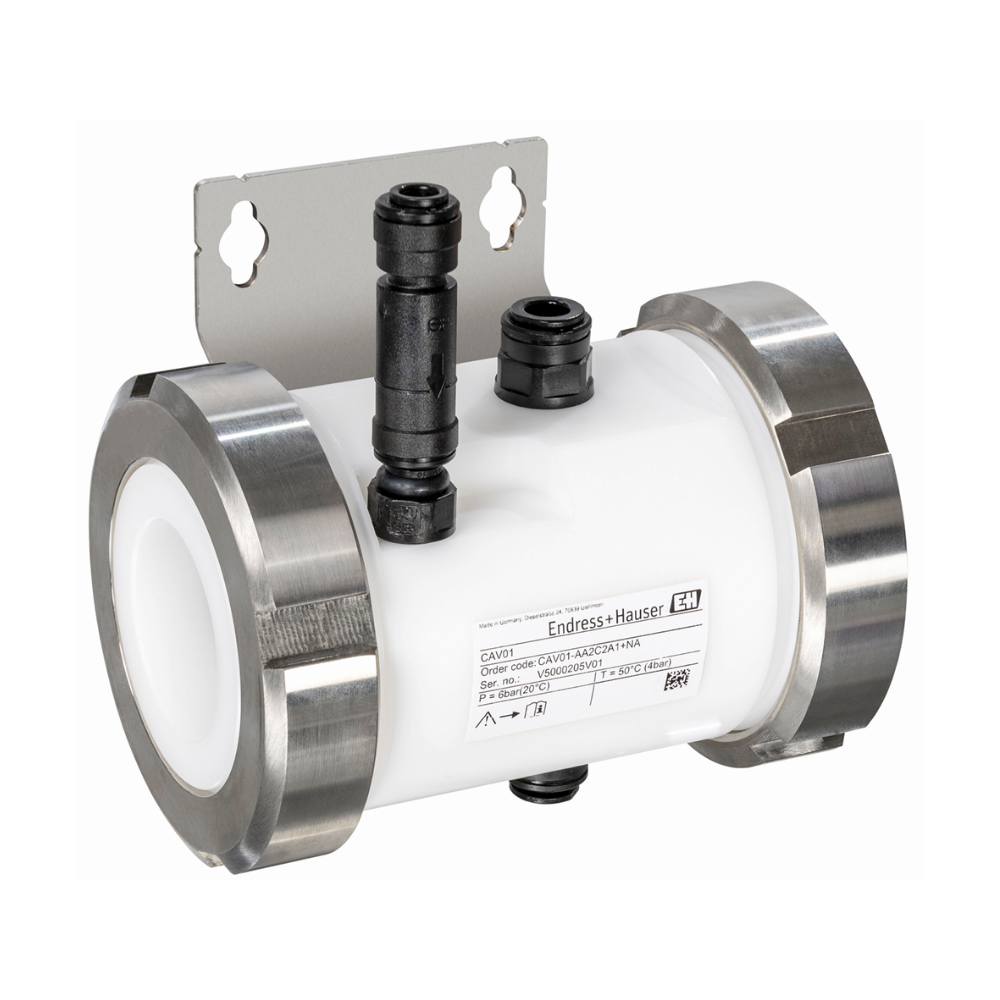

The Endress+Hauser CAV01 Flow Assembly is designed as a bypass flow cell for optical sensors used in water and wastewater analysis applications.
The assembly provides a controlled measurement environment for optical sensors, ensuring stable sample flow and reliable sensor performance. When combined with a Memosens Wave CAS80E spectrometer or Viomax CAS51D sensor, the CAV01 enables continuous monitoring of multiple water quality parameters without the need for chemical reagents.
Typical applications include:
Drinking water monitoring
Process water analysis
Wastewater monitoring
Surface water measurement
Water reuse systems
Cooling water and condensate monitoring
Optical Measurement Without Chemical Reagents
The CAV01 is designed for optical measurement systems that use light absorption technology to analyze water composition.
Combined with compatible optical sensors, it supports measurement of parameters including:
SAC254
TOC equivalent
COD equivalent
BOD equivalent
DOC equivalent
Turbidity
Total suspended solids (TSS)
Nitrate
APHA/Hazen color
This allows users to monitor multiple water quality indicators with a single measuring point, reducing system complexity and maintenance requirements.
Compatible with Memosens Wave CAS80E and Viomax CAS51D
The CAV01 is designed specifically for Endress+Hauser optical sensors, including:
Memosens Wave CAS80E digital spectrometer
Viomax CAS51D nitrate and SAC sensor
With these sensors installed, the flow assembly can support monitoring of up to five parameters simultaneously, providing comprehensive information about water quality conditions.
The fixed sensor orientation and optimized flow path help maintain consistent measurement conditions and improve measurement reliability.
Low Sample Flow and Reduced Water Consumption
One of the key advantages of the CAV01 is its ability to perform accurate measurements with a low sample flow rate.
The assembly supports sample flows from 0.1 to 10 l/h, helping minimize water consumption while maintaining stable measurement performance.
This makes it suitable for applications where:
Sample availability is limited
Water loss needs to be minimized
Continuous monitoring is required
Integrated Pressure Cleaning for Extended Maintenance Intervals
The CAV01 features an integrated pressure cleaning function designed to reduce sensor fouling and extend maintenance intervals.
Automatic cleaning helps remove deposits from the optical measurement path, improving:
Long-term measurement stability
Sensor availability
Maintenance efficiency
This is particularly valuable in wastewater and process water applications where suspended solids and deposits may affect optical measurement performance.
Robust Design for Industrial Water Applications
The CAV01 is designed for reliable operation in industrial environments.
Key design characteristics include:
Process temperature range: 0 to 50 °C
Process pressure up to 6 bar abs.

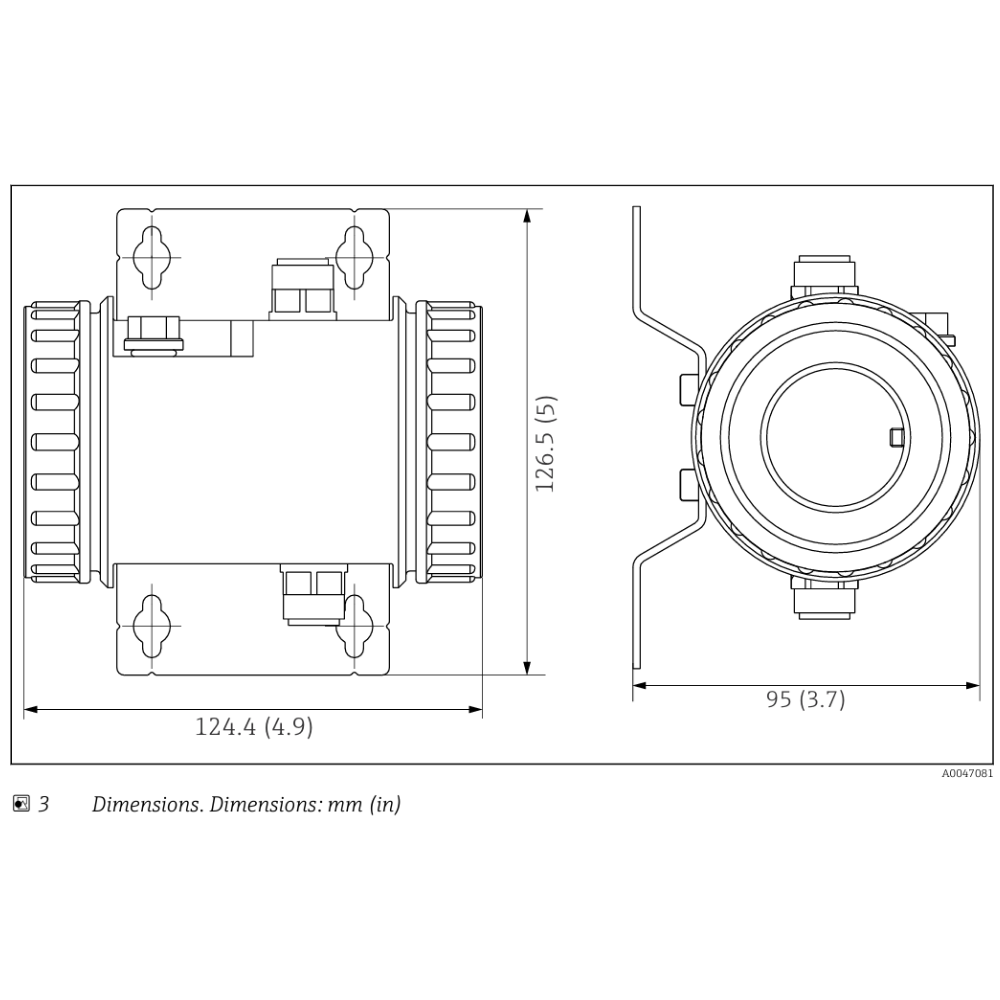

Compact 40 mm flow cell design
Chemical-resistant construction materials
The robust design allows installation in demanding water monitoring applications while maintaining reliable sensor operation.
Simple Installation and Maintenance
The CAV01 is designed to simplify installation and servicing.
Features include:
Pre-mounted wall bracket
Fixed sensor orientation
Tool-free sensor removal
Easy maintenance access
These design features reduce downtime during sensor inspection, cleaning or replacement.
Applications Across Water and Industrial Processes
Drinking Water Treatment
The CAV01 provides reliable optical measurement for drinking water production and distribution networks.
Applications:
Raw water monitoring
Treatment process control
Water quality verification
Distribution network monitoring
Wastewater Treatment
The flow assembly supports continuous monitoring in municipal and industrial wastewater systems.
Applications:
Wastewater outlet monitoring
Aeration basin control
Organic load monitoring
Suspended solids measurement
Industrial Process Water
The CAV01 helps industries maintain water quality control in production-related water systems.
Applications:
Process water monitoring
Cooling water analysis
Condensate monitoring
Water reuse systems
Key Features
Flow assembly for optical water analysis sensors
Designed for Memosens Wave CAS80E and Viomax CAS51D
Supports chemical-free optical measurement
Measurement of up to 5 water quality parameters
Suitable for drinking water, process water and wastewater
Low sample flow requirement from 0.1 to 10 l/h
Integrated pressure cleaning function
Extended maintenance intervals
Process pressure up to 6 bar abs.
Process temperature up to 50 °C
Compact 40 mm flow cell design
Simple installation and tool-free maintenance
Typical Applications
Drinking Water Monitoring
Used for continuous monitoring of drinking water quality during production and distribution.
Wastewater Treatment
Suitable for wastewater outlet monitoring, aeration basin control and process optimization.
Process Water Analysis
Used in industrial facilities for monitoring cooling water, condensate and production water.
Water Reuse Systems
Provides reliable optical measurement for recycled water quality monitoring.
FAQ
What is Endress+Hauser CAV01?
The CAV01 is a flow assembly designed for optical sensors used in water analysis applications. It provides a controlled bypass measurement environment for compatible optical sensors.
Which sensors are compatible with CAV01?
The CAV01 is compatible with:
Memosens Wave CAS80E spectrometer
Viomax CAS51D nitrate/SAC sensor
What parameters can CAV01 measure?
Depending on the installed sensor, the system can measure parameters including:
TOC equivalent
COD equivalent
BOD equivalent
DOC equivalent
SAC254
Turbidity
TSS
Nitrate
APHA/Hazen color
Does CAV01 require chemical reagents?
No. When used with compatible optical sensors, the CAV01 supports optical measurement without chemical reagents.
What industries use CAV01?
The CAV01 is mainly used in:
Drinking water treatment
Wastewater treatment
Industrial water monitoring
Environmental water analysis
