ABB VortexMaster FSV450 Vortex Flowmeter Overview
The ABB VortexMaster FSV450 is a universal vortex flowmeter designed for demanding industrial flow measurement. It combines vortex measurement technology with enhanced flow computer functionality, allowing it to handle more advanced measurement tasks than a basic vortex flowmeter.
Key Features
- Measures gases, liquids, and steam
- Enhanced flow calculation functionality
- Additional analog input for external process signals
- Supports mass flow, standard flow, and steam energy measurement applications
- Integral or remote transmitter options
- Flexible industrial communication interfaces
Applications
The ABB VortexMaster FSV450 is suitable for steam distribution and energy monitoring, industrial gas measurement, demineralized water measurement, and compatible liquid applications in chemical, petrochemical, and process industries. Its enhanced calculation capabilities are particularly useful when external pressure, temperature, or density signals are needed for more advanced flow measurement.
Why Choose ABB VortexMaster FSV450?
The FSV450 combines flow measurement and enhanced calculation functionality in one instrument, potentially reducing the need for separate flow computers in suitable applications. It offers flexible integration with industrial automation systems and is suitable for users requiring more advanced flow measurement than standard volumetric flow monitoring.
Frequently Asked Questions
1. What is the ABB VortexMaster FSV450 used for?
The FSV450 is an industrial vortex flowmeter for measuring gases, liquids, and steam. It also supports advanced flow calculation applications.
2. What is the difference between the ABB FSV430 and FSV450?
The FSV450 adds enhanced flow computer functionality and an additional analog input for external process signals. This supports more advanced mass-flow, standard-flow, and steam measurement applications.
3. Can the ABB FSV450 measure steam mass flow?
Yes. With suitable configuration and temperature measurement, it supports saturated steam mass-flow calculations. Advanced steam energy measurement depends on the application and required inputs.
4. What communication protocols does the FSV450 support?
Available options include 4–20 mA with HART 7, Modbus RTU, and Ethernet-APL communication such as Modbus TCP and PROFINET, depending on the selected version.

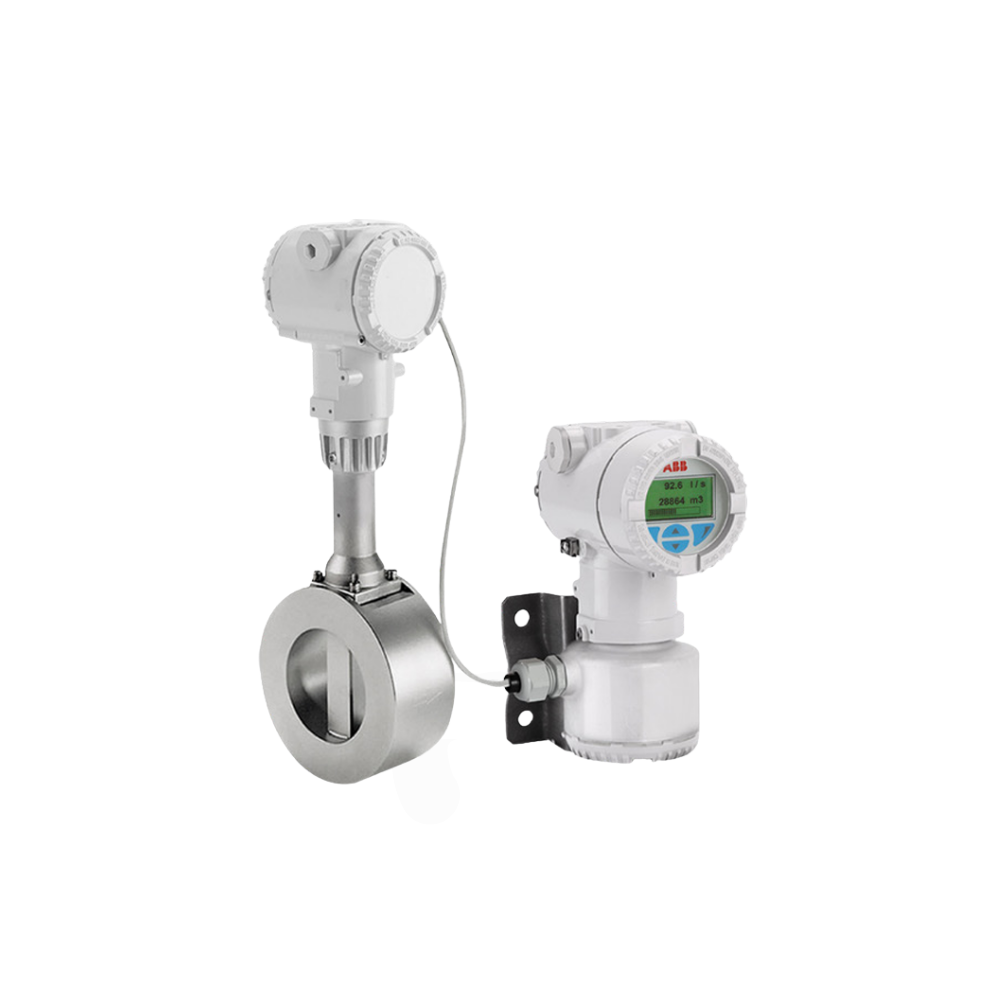

5. Is a remote transmitter available for the ABB FSV450?
Yes. A remote transmitter version is available with a cable length of up to 30 m (98 ft.), subject to the selected configuration.
6. What pipe sizes are available?

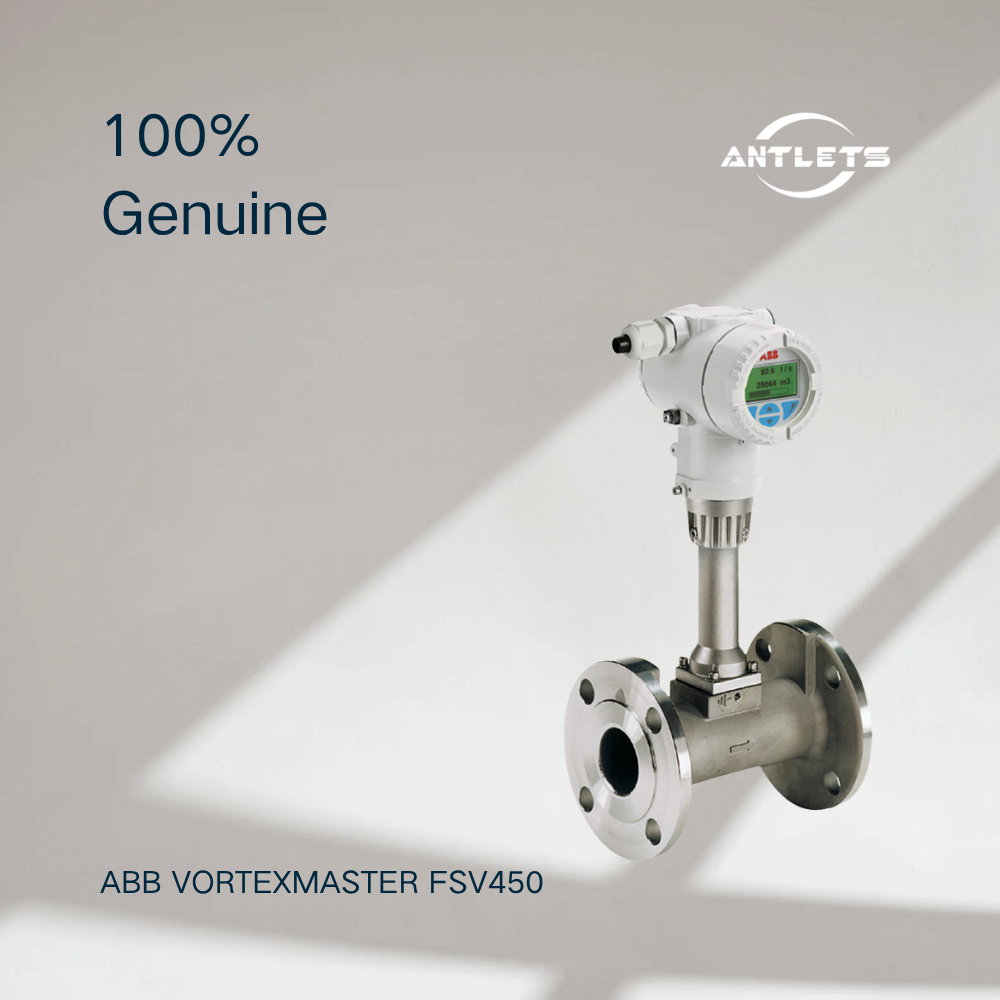

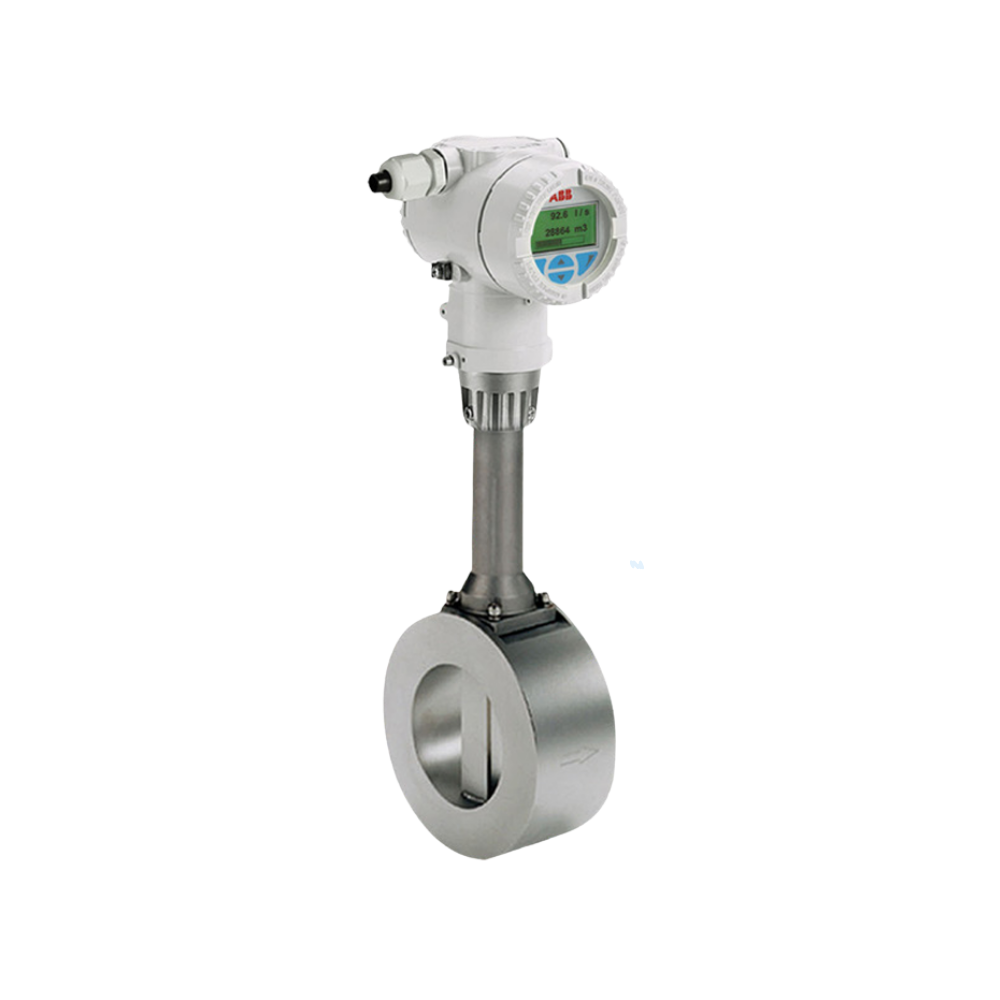

The flange-mounted design covers DN 15 to DN 300, while the wafer-type design covers DN 25 to DN 150.
7. How can I select the correct FSV450 model?
Provide the process medium, flow range, operating pressure and temperature, pipe diameter, connection type, required communication protocol, and any external sensor inputs needed for flow calculations.
8. How can I request a quotation for the ABB FSV450?
Contact our sales team with the required model, quantity, application details, and delivery destination to confirm the appropriate configuration and request a quotation.
