ABB VortexMaster FSV430 Vortex Flowmeter

$1,300.00

The ABB VortexMaster FSV430 vortex flowmeter measures the volumetric flow of gases, liquids, and steam. Its advanced digital signal processing and vibration compensation help ensure reliable measurement in demanding industrial environments.

Available in flange-mounted and wafer-type designs, the FSV430 supports flexible installation and multiple communication options, including HART 7 and Modbus RTU, depending on configuration. Contact us for model selection and a quotation.

🕑 Lead time: 8-10 weeks
Quantity:
Delivery & return Ask a Question
Visa PayPal Mastercard American Express

ABB VortexMaster FSV430 Vortex Flowmeter Overview

The ABB VortexMaster FSV430 is designed for industrial flow measurement, combining vortex technology with advanced signal processing and vibration compensation. It is suitable for measuring gases, liquids, and steam in compatible process conditions.

Key Features

  • Measures gas, liquid, and steam flow
  • Advanced digital signal processing
  • Vibration compensation for stable measurement
  • Flange-mounted and wafer-type designs
  • Multiple communication options depending on configuration

Applications

The ABB FSV430 is suitable for steam distribution, industrial gas measurement, water and compatible liquid monitoring, chemical processing, and general industrial utility systems. Proper sizing and configuration should be selected according to the medium, flow rate, pressure, temperature, and installation requirements.

Why Choose ABB VortexMaster FSV430?

The FSV430 offers versatile measurement capabilities, flexible installation options, and integration with industrial control systems. It is a practical choice for industrial users seeking reliable vortex flow measurement for process monitoring and utility management.

Frequently Asked Questions

1. What does the ABB VortexMaster FSV430 measure?

It measures the volumetric flow of gases, liquids, and steam in industrial applications.

2. Can the ABB FSV430 measure steam?

Yes. It is designed for steam flow measurement. Additional temperature measurement and suitable configuration may be required for specific steam calculations.

3. What communication options are available?

Depending on the configuration, options include 4–20 mA with HART 7, Modbus RTU, and supported Ethernet-APL communication variants.

4. What installation types are available?

The FSV430 is available in flange-mounted and wafer-type designs. The appropriate type depends on the pipeline and process requirements.

5. How do I select the right FSV430 model?

Provide the medium, flow range, operating pressure and temperature, pipe size, process connection, and required communication protocol to help determine the appropriate configuration.

6. How can I get a quotation for the ABB FSV430?

Contact our sales team with your required quantity and technical specifications to request a quotation and confirm product availability.

Measurement Accuracy & Process Sizes

Accuracy for Liquids ±0.65% of measured rate
Accuracy for Gases & Steam ±0.9% of measured rate

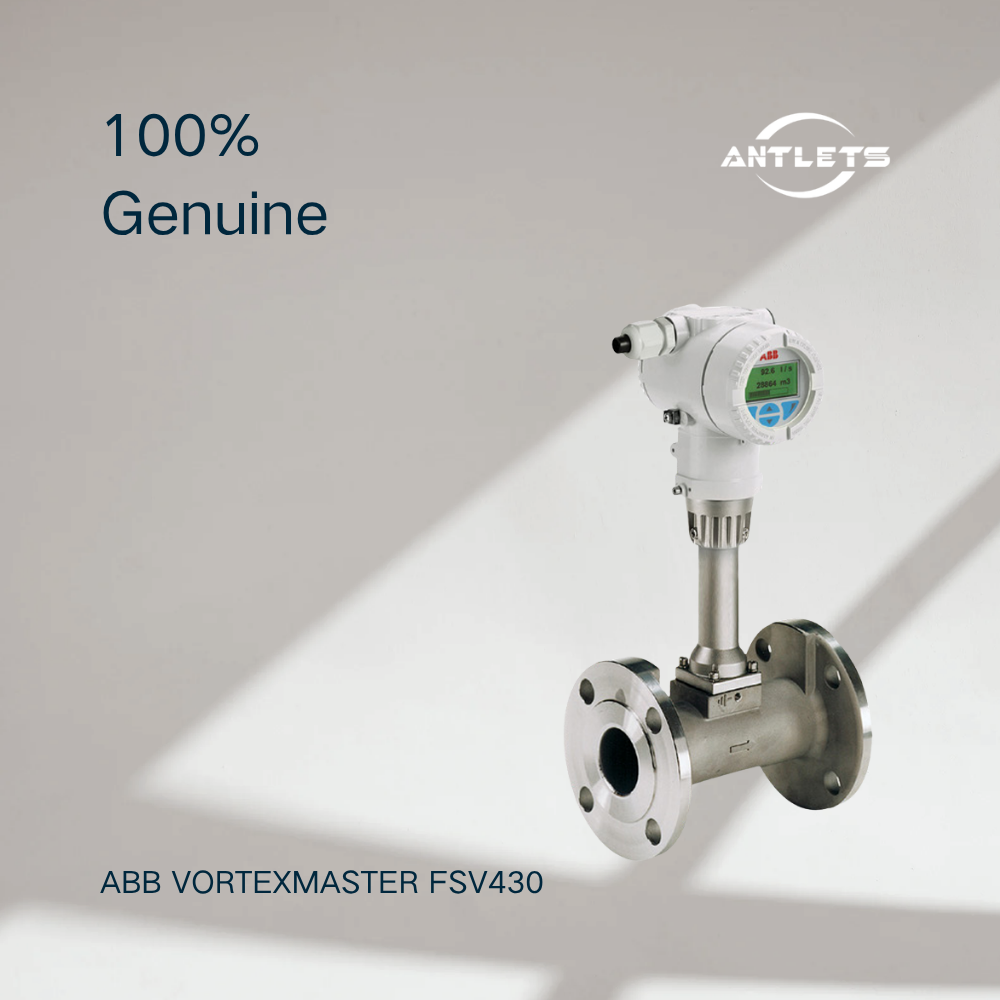

Flange-Mount Meter Sizes DN 15 to DN 300 (½ to 12 in.) standard flanges

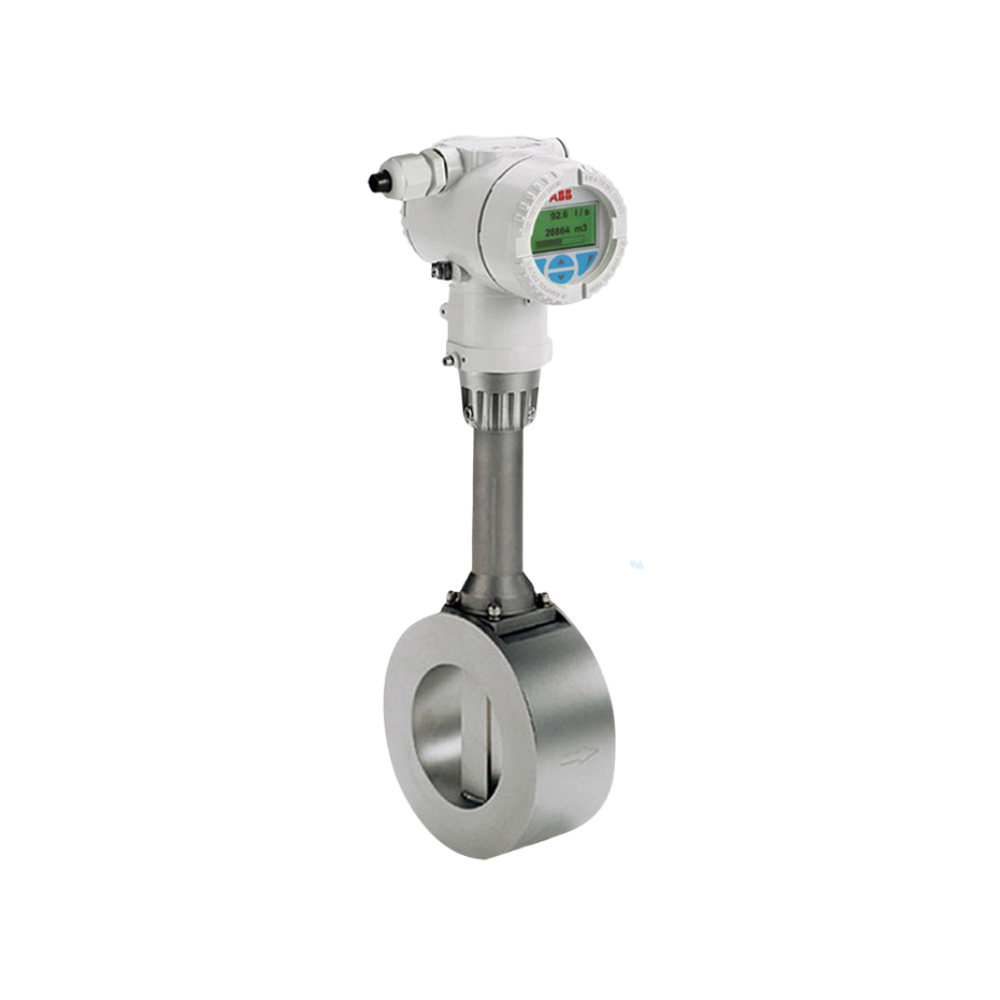

Wafer-Mount Meter Sizes DN 25 to DN 150 (1 to 6 in.) compact wafer design
Intuitive Local Operation Clear text display with Easy Set-up wizard; through-the-glass capacitive configuration with housing cover closed; optional Smart HMI with Bluetooth for mobile device management app

Communications, I/O & Safety Approvals

Primary Output / Protocols 4-20 mA with HART 7;
Ethernet-APL (Advanced Physical Layer) supporting Modbus TCP, PROFINET, and integrated webserver;
RS-485 Modbus RTU
Binary Output Options Configurable as limit alarm switch, pulse output, or scaled frequency output
Auxiliary Process Inputs Optional direct inputs from field sensors for pressure, temperature, and density (mass/energy flow compensation)
Safety Compliance SIL 2 certified in accordance with IEC 61508
Hazardous Area Approvals ATEX, IECEx, cFMus, and NEPSI explosion protection certifications
