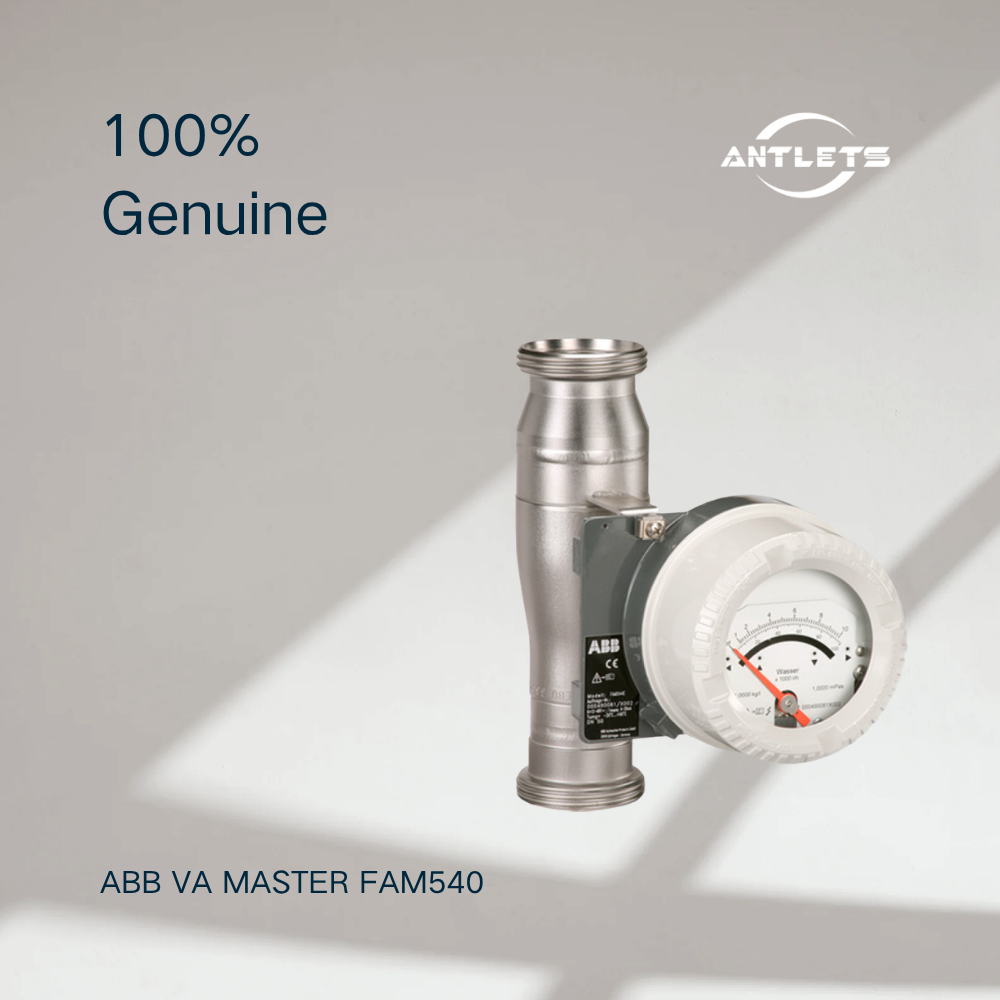

The ABB VA Master FAM540 is a metal cone variable area flowmeter designed for continuous flow measurement of clean liquids, gases and steam.
It is particularly suitable for demanding process conditions where high pressure, high temperature, aggressive fluids or opaque media make a conventional glass tube flowmeter unsuitable. ABB specifies stainless steel primary components, with optional PTFE-lined versions for applications involving aggressive fluids.
The FAM540 can be configured with local analog indication, alarm functions or an electronic transmitter. Depending on the selected version, it supports 4–20 mA, HART communication and NAMUR contact outputs, with optional graphical display. The instrument can also be used in hazardous areas when the appropriate configuration is selected.
Key Features
• Metal cone variable area measurement principle
• Suitable for liquids, gases and steam
• Designed for demanding industrial process conditions
• Suitable for aggressive or opaque fluids
• Stainless steel measuring tube options
• Optional PTFE-lined measuring tube
• Water flow ranges from 0.028 to 120 m³/h
• Typical 10:1 flow turndown
• Operating pressure up to 100 bar
• Operating temperature up to 400 °C
• Accuracy Class 1.6
• PTFE-lined version available with Class 2.5 accuracy
• Threaded/flanged and hygienic connection options depending on configuration
• Up to two optional slot-sensor alarms
• Magnetic stick operation
• Configuration possible without opening the housing
• Optional 4–20 mA electronic transmitter
• HART communication available
• NAMUR contact outputs available
• Optional graphical display
• Hazardous-area configurations available
Measuring Principle
The FAM540 uses the variable area flow measurement principle.
The process medium passes through a tapered measuring tube and causes the float to move according to the flow rate. The float position corresponds to the flow being measured and can be indicated locally or converted into an electronic output depending on the selected configuration.
The metal cone construction provides a robust measuring system for industrial applications where a glass tube is not suitable.
Measuring Range
The FAM540 provides water flow ranges from 0.028 to 120 m³/h.
The typical turndown ratio is 10:1.
The actual measuring range depends on the selected meter size, process medium, operating conditions and configuration. Gas and steam flow ranges should be selected according to the actual process conditions rather than directly applying the published water range.
Operating Conditions
The FAM540 is designed for demanding process conditions.
ABB specifies:
• Operating pressure up to 100 bar
• Operating temperature up to 400 °C
• Accuracy Class 1.6
• PTFE-lined tube option with Class 2.5 accuracy
The applicable pressure and temperature limits depend on the selected measuring tube, lining, connection and process configuration.
Product Designs
The FAM540 platform is available in several primary instrument designs.
FAM541

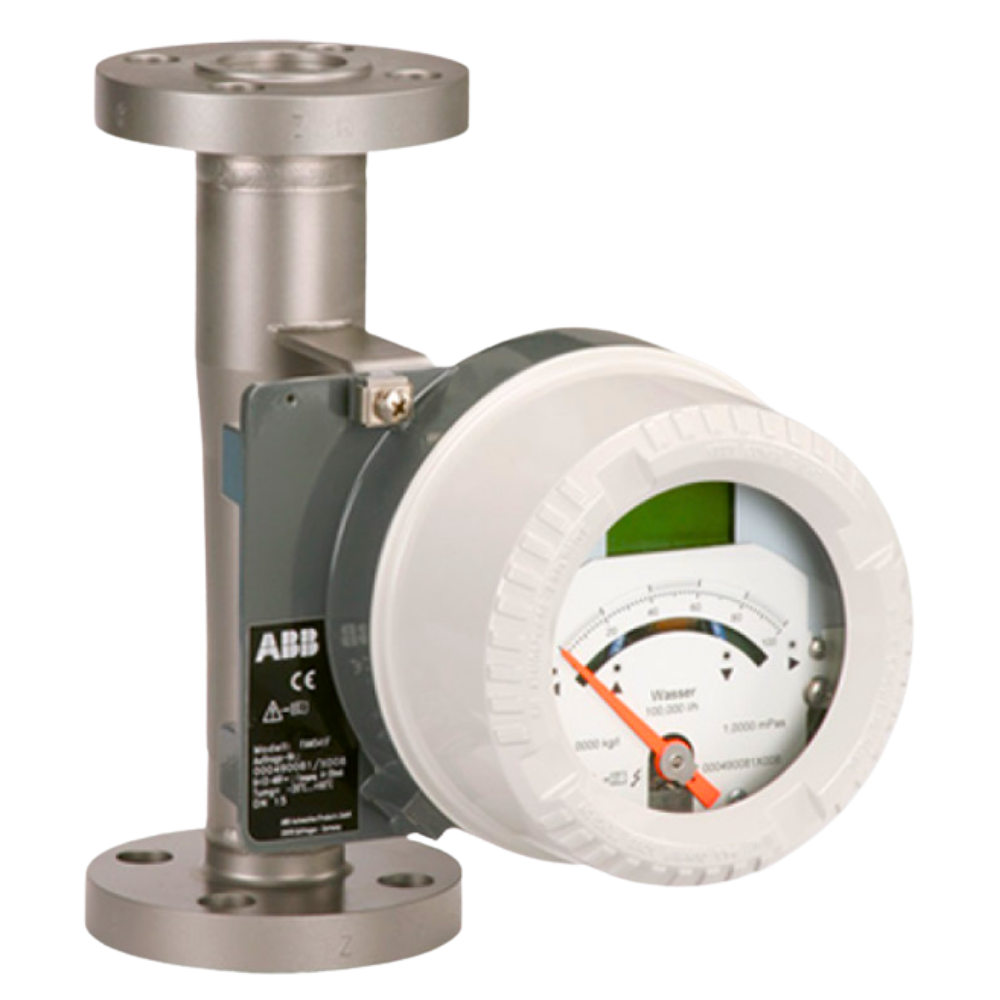

The standard-line version with flange connections. It is intended for general industrial process flow measurement where a robust metal-tube variable area flowmeter is required.
FAM544

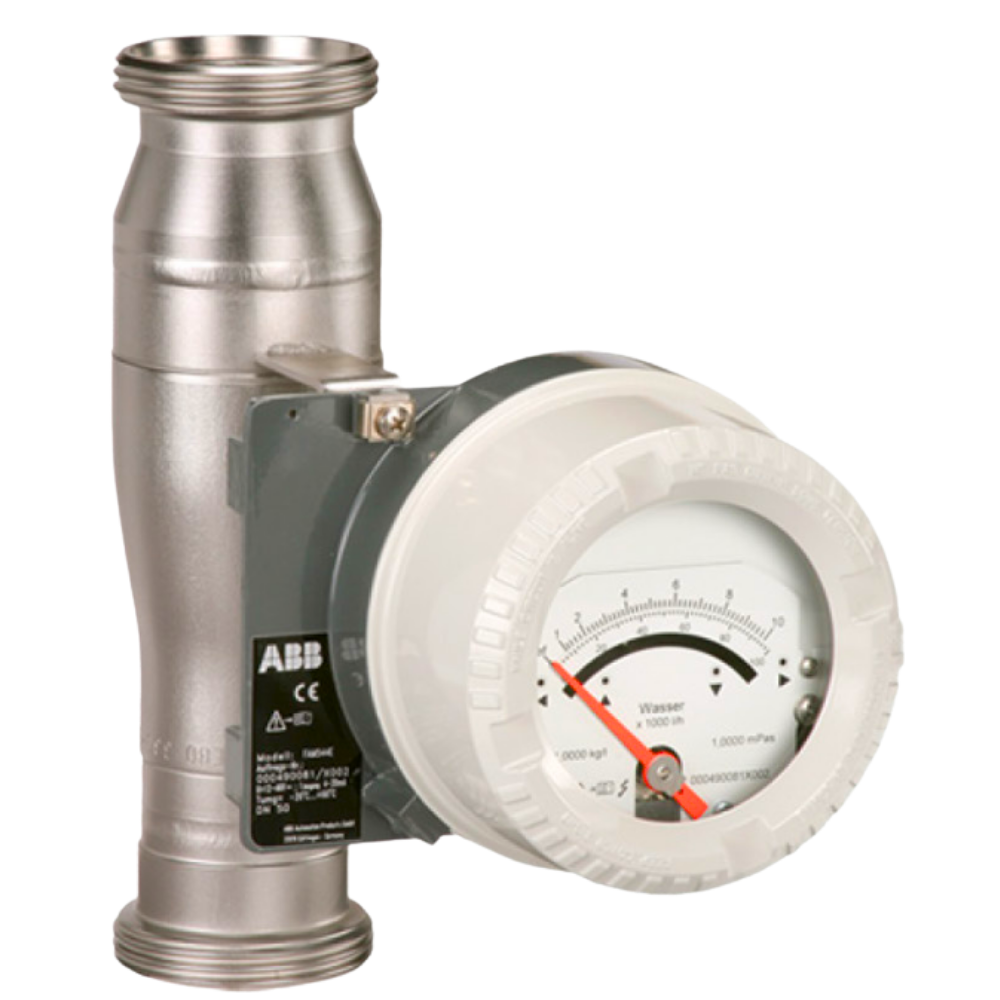

The hygienic design version for applications requiring hygienic process connections and suitable sanitary construction.
FAM545
The PTFE-lined version designed for aggressive fluids. ABB currently notes that this version is in the Classic phase and recommends contacting ABB regarding product availability.
FAM546
ABB's Chinese product information also lists a heated-jacket version for applications where process temperature control or prevention of medium solidification is required. Exact availability and configuration should be confirmed when quoting.
Process Connections and Installation
The FAM540 is designed for vertical, inline installation.
Depending on the selected version, connections include:
• Flanged connections
• Hygienic connections
• DIN and SMS hygienic connection options
• Connection sizes from approximately 1/2 to 4 in.
The exact connection type, size and orientation should be confirmed according to the customer's existing piping and process requirements.
Indication and Output Options
The FAM540 can be configured according to the required level of process integration.
For simple local measurement, an analog flow indicator can be selected, with or without alarms.
For integration into a control system, an electronic transmitter is available with:
• 4–20 mA output
• HART communication
• NAMUR contact outputs
• Optional graphical display
The instrument can also be configured with up to two slot-sensor alarms.
Suitable Applications
Chemical Processing
The FAM540 is suitable for chemical process applications involving demanding pressure and temperature conditions. PTFE-lined versions can be considered when compatibility with aggressive fluids is required.
Pharmaceutical Processing
The FAM540 can be configured with a hygienic design for applications where sanitary process connections and suitable construction are required.
Food and Beverage
The FAM540 is suitable for selected food and beverage process applications, with the hygienic FAM544 version available for applicable requirements.
Oil and Gas
ABB identifies the metal cone variable area flowmeter as particularly suitable for demanding applications such as oil rigs and chemical plants. The robust metal construction makes it suitable for process environments where glass tube instruments are not appropriate.
High-Temperature Flow Measurement
With an operating temperature specified up to 400 °C, the FAM540 can be considered for high-temperature process flow applications when the selected configuration meets the actual operating conditions.
High-Pressure Flow Measurement
The FAM540 is suitable for process applications requiring operating pressure up to 100 bar, subject to the selected configuration.
Aggressive or Opaque Fluids
The metal construction and optional PTFE lining make the FAM540 suitable for selected aggressive or opaque media where visual glass-tube measurement would not be appropriate.
Selection Notes
1. Confirm the process medium first.
The FAM540 is intended for clean liquids, gases and steam. For aggressive media, the wetted material and optional PTFE lining should be checked against the actual chemical composition.
2. Select the appropriate FAM540 design.
FAM541, FAM544, FAM545 and FAM546 serve different process requirements. The exact version should be selected according to connection type, hygiene requirements, fluid compatibility and temperature-control requirements.
3. Confirm the actual flow range.
The published water flow range is 0.028 to 120 m³/h, but the correct scale depends on the actual process medium and operating conditions.
4. Confirm pressure and temperature together.
The maximum pressure of 100 bar and maximum temperature of 400 °C should not be treated as universal limits for every configuration. The selected measuring tube, lining, connection and process conditions can affect the allowable limits.
5. Consider the output requirements.
For simple local monitoring, an analog indicator may be sufficient. If the customer needs PLC/DCS integration, 4–20 mA, HART and NAMUR output options should be considered.
6. Confirm hazardous-area requirements.
The FAM540 can be configured for hazardous-area applications. The exact certification should be confirmed according to the installation zone and selected instrument configuration.
7. Confirm hygienic requirements.
For sanitary applications, the FAM544 hygienic design should be considered rather than selecting a standard FAM541 only based on pipe size.
FAQ
What is the ABB FAM540?
The FAM540 is a metal cone variable area flowmeter for measuring liquids, gases and steam in industrial process applications.
What is the difference between the FAM540 and FAM3200?
The FAM540 is a larger industrial metal cone variable area flowmeter designed for demanding process conditions, including high pressure and high temperature. The FAM3200 is an armored variable area purgemeter primarily designed for smaller gas and liquid flows.
What is the measuring range of the FAM540?
ABB specifies water flow ranges from 0.028 to 120 m³/h, with a typical 10:1 turndown. The actual range depends on the selected configuration and process medium.
What is the maximum operating pressure?
The FAM540 has a specified operating pressure of up to 100 bar, depending on configuration.
What is the maximum operating temperature?
ABB specifies an operating temperature of up to 400 °C for the FAM540. The actual permissible temperature depends on the selected configuration.
Can the FAM540 measure steam?
Yes. ABB lists liquids, gases and steam among the applicable media.
Can the FAM540 measure aggressive fluids?
Yes, selected configurations are suitable for aggressive fluids. The FAM545 version uses a PTFE-lined primary for aggressive applications, although ABB currently notes that this version is in the Classic phase and recommends confirming availability.
Is the FAM540 suitable for hygienic applications?
Yes. The FAM544 is the hygienic design within the FAM540 platform and should be considered when sanitary connections and hygienic construction are required.
Does the FAM540 require external power?
The basic analog local indicator does not require external power for flow indication. Electronic transmitter versions require the appropriate power supply for their output and communication functions.
What outputs are available?
Depending on configuration, the FAM540 can provide 4–20 mA, HART communication and NAMUR contact outputs, with optional graphical display.
Can the FAM540 be used in hazardous areas?
Yes. ABB states that the available FAM540 devices can be used in hazardous areas when the appropriate configuration is selected. The exact certification should be confirmed for the intended installation.
