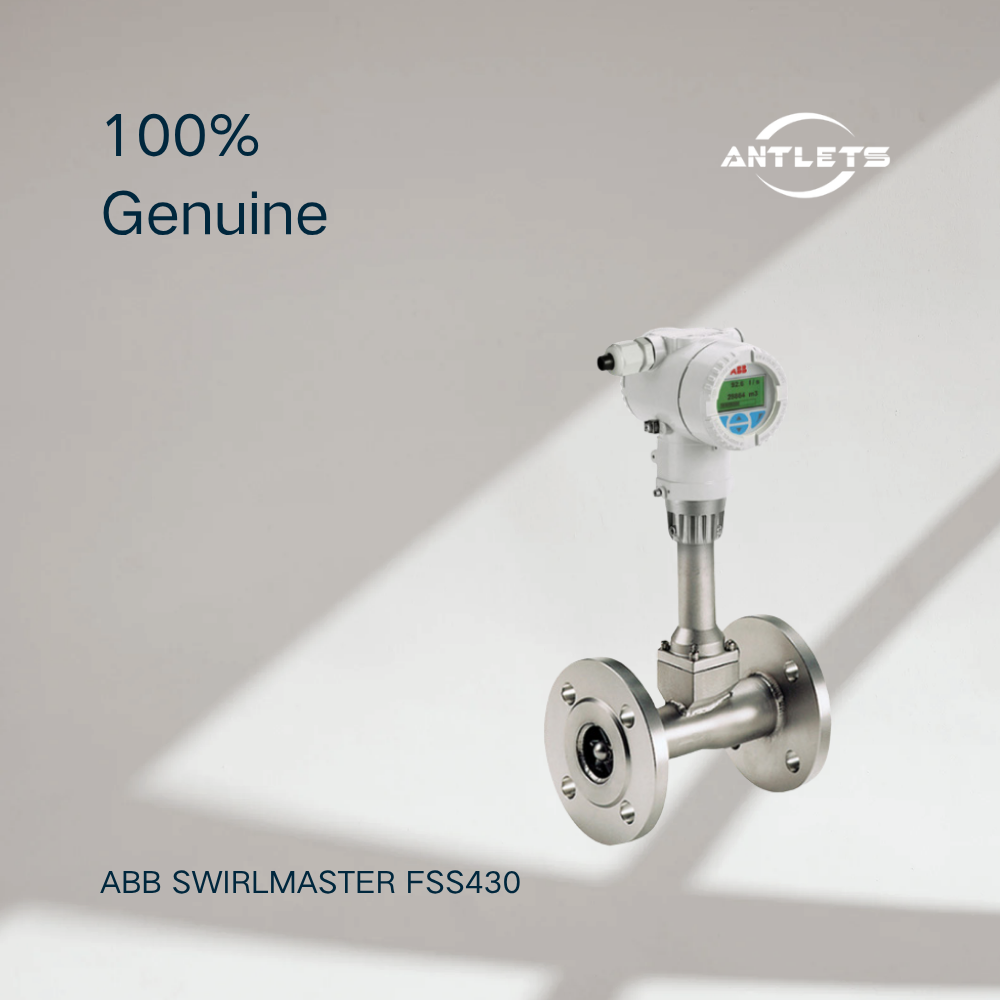

ABB SwirlMaster FSS430 Swirl Flowmeter

$1,300.00

The ABB SwirlMaster FSS430 swirl flowmeter provides reliable flow measurement for gases, liquids, and steam, with a stated accuracy of ±0.5% of rate. Its advanced digital signal processing and vibration compensation help maintain measurement stability, while short upstream and downstream straight-pipe requirements simplify installation.

Available in flanged sizes from DN 15 to DN 400, the FSS430 supports 4–20 mA/HART 7 and other communication options, depending on configuration. Optional features include integrated temperature measurement, digital outputs, and a remote transmitter.

🕑 Lead time: 6-8 weeks
Quantity:
Delivery & return Ask a Question
Visa PayPal Mastercard American Express

ABB SwirlMaster FSS430 Swirl Flowmeter Overview

The ABB SwirlMaster FSS430 is a swirl flowmeter designed for accurate volumetric flow measurement of gases, liquids, and steam. It combines digital signal processing with effective vibration compensation and compact installation requirements for industrial process applications.

Key Features

  • Measures gases, liquids, and steam
  • Accuracy of ±0.5% of rate
  • Short upstream and downstream straight-pipe requirements
  • Flanged connections from DN 15 to DN 400
  • Multiple communication and output options
  • Optional integrated temperature measurement and remote transmitter

Applications

The FSS430 is suitable for steam distribution, petrochemical processes, demineralized water, industrial gas measurement, and compatible low-viscosity liquid applications. Its compact installation requirements make it particularly useful for existing pipelines and industrial systems with limited installation space.

Why Choose ABB SwirlMaster FSS430?

The FSS430 combines reliable measurement performance, vibration compensation, and flexible installation in one instrument. It is a practical choice for industrial users seeking accurate flow measurement while minimizing the straight-pipe lengths required for installation.

Frequently Asked Questions

1. What is the ABB SwirlMaster FSS430 used for?

It measures the volumetric flow of gases, liquids, and steam in industrial process and utility systems.

2. What is the accuracy of the FSS430?

ABB specifies an accuracy of ±0.5% of rate for liquids, gases, and steam.

3. Can the FSS430 measure steam?

Yes. It is suitable for steam flow measurement. Optional integrated temperature measurement can support saturated steam mass-flow calculation.

4. What pipe sizes are available?

The FSS430 is available with flanged process connections from DN 15 to DN 400 (½ to 16 inches).

5. What communication options does the FSS430 support?

Depending on configuration, options include 4–20 mA/HART 7, Modbus RTU, and Ethernet-APL communication variants such as Modbus TCP and PROFINET.

6. Does the FSS430 require long straight pipe sections?

No. It is designed to operate with short upstream and downstream straight-pipe sections, helping simplify installation in space-constrained systems.

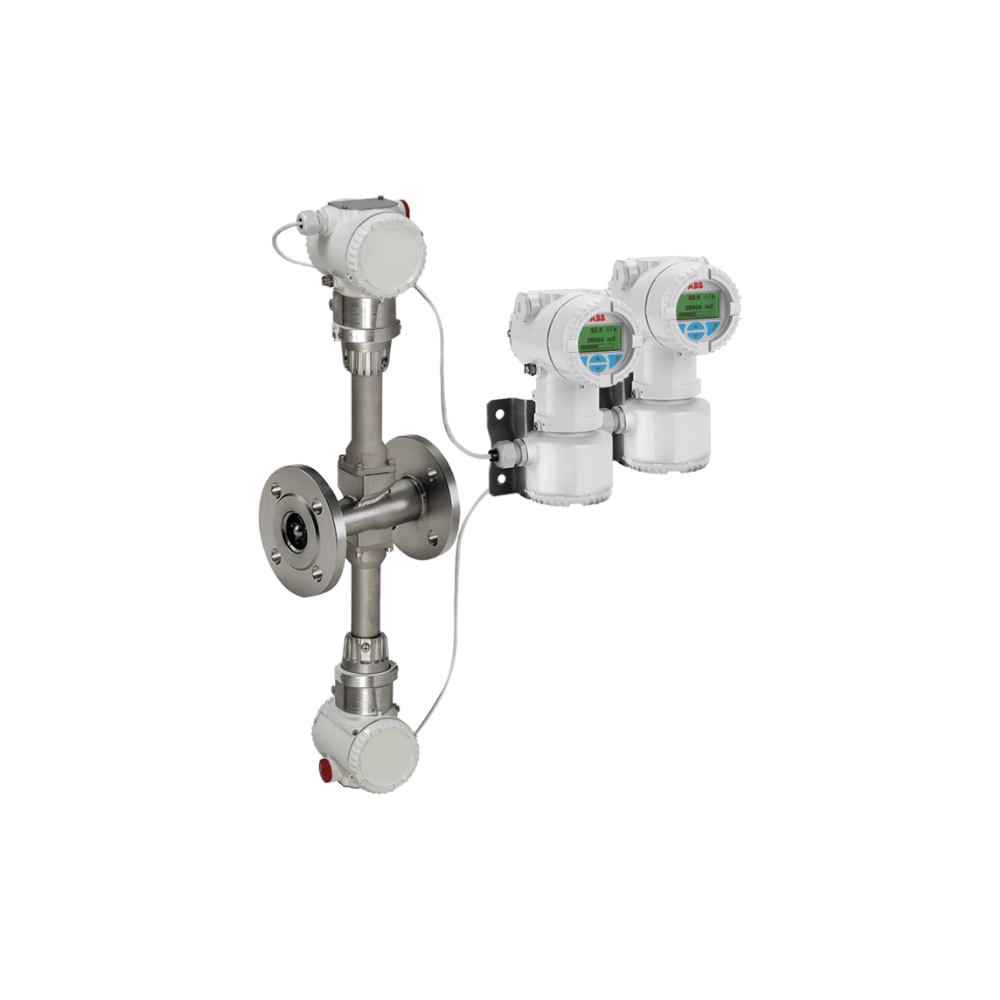

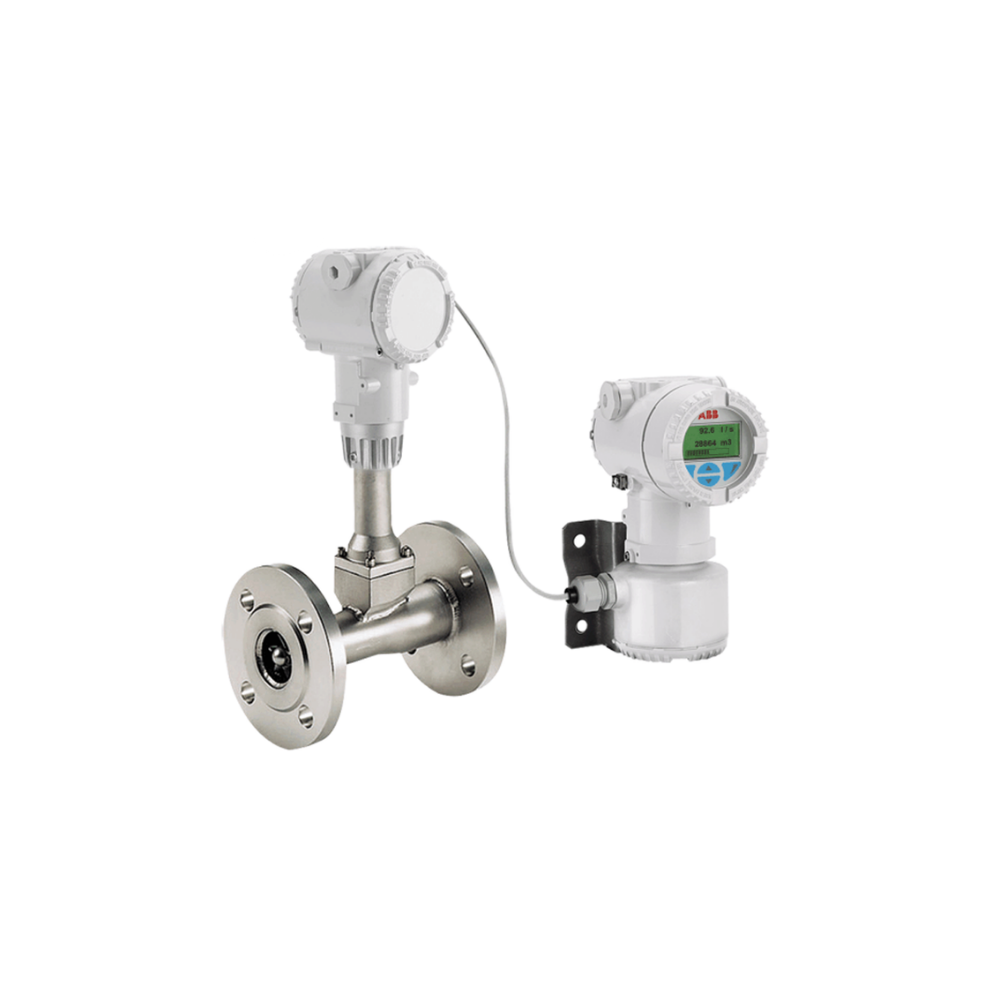

7. Is a remote transmitter available?

Yes. A remote transmitter option with a signal cable length of up to 30 m (98 ft.) is available for applicable configurations.

8. How can I request a quotation?

Provide the required flow range, process medium, operating pressure and temperature, pipe size, connection type, and communication requirements to help confirm the appropriate configuration and quotation.

Measurement Accuracy & Process Sizes

Accuracy for Liquids, Gases & Steam ±0.5% of rate
Process Connection / Meter Sizes Flange design / DN 15 to 400 (½ to 16 in.)
Easy Assembly Only the shortest possible straight pipe lengths are required;
Measuring ranges have been well adapted to the flow rates
Intuitive Operation Easy Set-up function;
Clear text display;
Meter configuration through the front glass with closed cover;
Bluetooth functionality (Smart HMI only) for My Device Manager App

Communications, I/O & Safety Approvals

Output / Communication 4 to 20 mA / HART 7;
Modbus TCP, Profinet, Webserver via Ethernet-APL;
Modbus RTU-RS485
Optional Binary Output For use as a limit switch, pulse output or frequency output
Optional Input from Field Pressure, temperature, methane content, density gas analyzer
Safety Compliance SIL 2 certified in accordance with IEC 61508
Approvals for Explosion Protection ATEX, IECEx, cFMus, NEPSI
