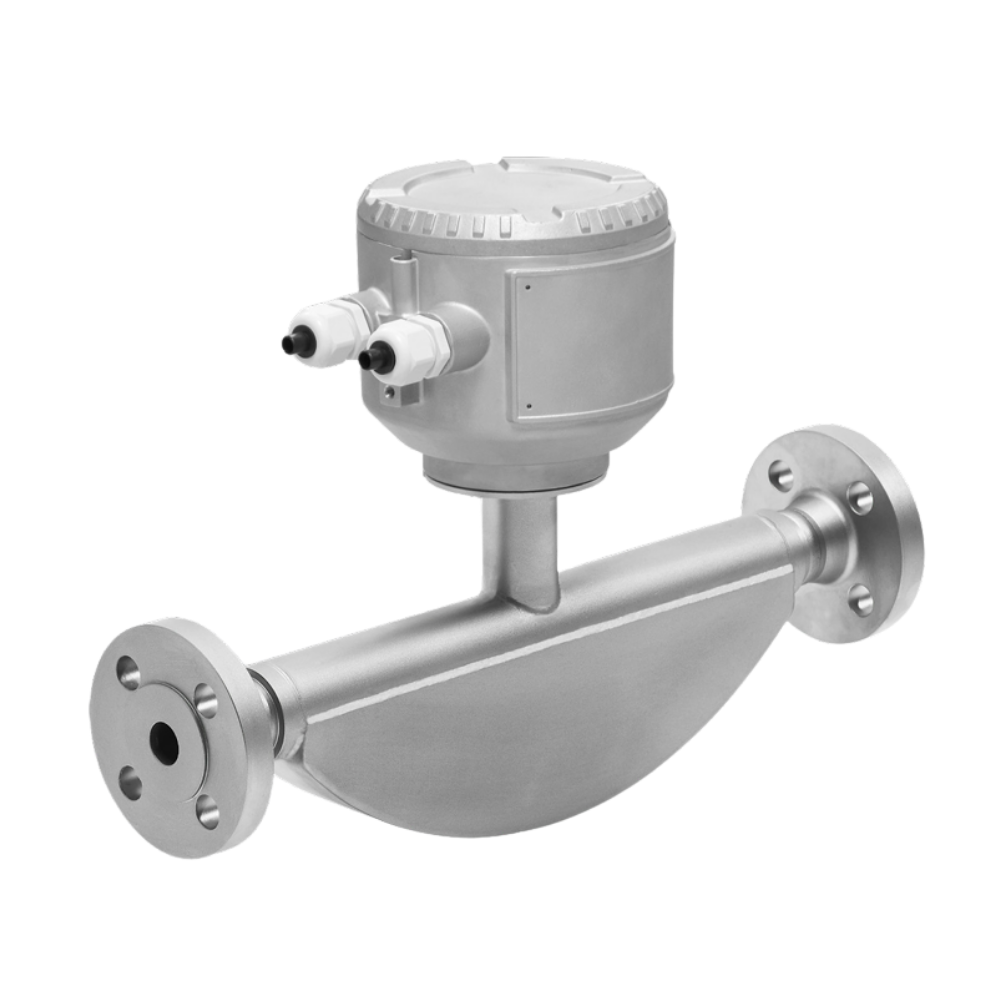

The CoriolisMaster FCB100 is ABB's compact Coriolis mass flowmeter series for system integration and industrial flow measurement. The current series includes FCB130 and FCB150.
The sensor provides multivariable measurement of mass flow, density and temperature in one device. The compact meter can be installed without conventional upstream and downstream piping requirements, which can simplify installation in confined spaces.
The FCB100 also provides high-speed RS485 Modbus communication and two digital outputs for integration with automation and control systems. ABB specifies a wide measuring span and low pressure drop for the series.
Key Features
• Coriolis measurement of mass flow, density and temperature
• Compact design for system integration and space-limited installations
• No conventional upstream or downstream straight-pipe requirements
• Low pressure drop for reduced pumping requirements
• High-speed RS485 Modbus communication
• Two digital outputs for pulse, frequency or contact functions
• Aluminum housing or stainless steel housing options
• DTM-based diagnostics and device operation
• Wide measurement span across multiple nominal sizes
• 316L or Hastelloy C wetted materials depending on configuration
• ATEX and cFMus hazardous-area approvals available depending on configuration
• FCB150 supports additional concentration and filling functions
Model Options
FCB130
The FCB130 is the standard version of the FCB100 series. It provides mass flow and volume flow measurement together with density and temperature measurement.
For liquids, ABB specifies mass and volume accuracy options of 0.4% or 0.25% of reading, with density accuracy of 10 g/l. The specified medium temperature range is -50 to 160 °C.
FCB150
The FCB150 provides the measurement capabilities of the FCB100 platform with additional software functions for more advanced process calculations.
Depending on application and configuration, FCB150 supports:
• High-accuracy concentration measurement
• Watercut calculation
• Net-oil calculation
• Net-mass measurement
• Net-volume measurement
• FillMass software for filling applications
• Integrated pre-counter and overfill/underfill correction functions
Measuring Range
The available nominal sizes and corresponding measuring ranges include:
Nominal SizeMeasuring RangeDN15 / 1/2 in.0–8,000 kg/hDN25 / 1 in.0–35,000 kg/hDN50 / 2 in.0–90,000 kg/hDN80 / 3 in.0–250,000 kg/hDN100 / 4 in.0–520,000 kg/hDN150 / 6 in.0–860,000 kg/h
Actual performance depends on the selected meter size, model and configuration.
Suitable Applications
Industrial Process Flow Measurement
Suitable for measuring liquid mass flow, density and temperature in general industrial process systems.
Dosing and Filling
The compact design and fast measurement response make the FCB100 suitable for dosing and filling applications. FCB150 provides additional filling-oriented functions through FillMass.
System Integration
RS485 Modbus communication and digital outputs make the FCB100 suitable for integration into automation systems and packaged equipment.
Oil and Fluid Measurement
FCB150 can provide watercut, net-oil, net-mass and net-volume calculations for suitable applications and configurations.
Food and Beverage Dosing
ABB documents the FCB100 for food and beverage dosing applications, with the specific meter and hygienic requirements needing to be considered when selecting the equipment.
Selection Notes
1. Choose FCB130 or FCB150 based on the required functions.
FCB130 is suitable when standard mass, volume, density and temperature measurement is required. FCB150 should be considered when concentration, watercut, net-oil or filling functions are required.
2. Select the meter size according to the actual process flow rate.
The FCB100 series covers DN15 to DN150 with different maximum measuring capacities. Do not select the nominal size based only on the existing pipe diameter.
3. Confirm the process medium before quotation.
Coriolis meter performance depends on the medium, flow conditions and selected configuration. For gases, liquids, multiphase fluids or special fluids, the application should be checked before selecting the exact model.
4. Confirm wetted materials.
ABB lists 316L and Hastelloy C wetted-material options. Material selection should be based on the actual process medium and corrosion conditions.
5. Confirm hazardous-area requirements.
ATEX and cFMus approvals are available for applicable configurations. The exact certification should be checked against the required installation area and selected device configuration.
FAQ
What is the ABB FCB100?
The FCB100 is a compact ABB Coriolis mass flowmeter series that currently includes the FCB130 and FCB150.
What does the FCB100 measure?
The sensor measures mass flow, density and temperature. Volume flow can also be derived, depending on the selected model and configuration.
What is the difference between FCB130 and FCB150?
FCB130 provides the standard measurement functions. FCB150 adds software functions including concentration measurement, watercut, net-oil, net-mass, net-volume and filling applications.
Does the FCB100 require straight pipe sections?
ABB states that the compact FCB100 can be installed without conventional upstream and downstream piping requirements. Actual installation should still follow the applicable ABB installation instructions and process conditions.
What sizes are available?
The current ABB data lists DN15, DN25, DN50, DN80, DN100 and DN150 versions, with measuring ranges up to 860,000 kg/h depending on size.
Is the FCB100 suitable for hazardous areas?
Applicable configurations are available with ATEX and cFMus hazardous-area approvals. The exact approval depends on the selected version and configuration.
Can the FCB100 be used for food and beverage applications?
ABB documents FCB100 applications for food and beverage dosing. If hygienic certification or sanitary construction is specifically required, the appropriate CoriolisMaster hygienic series should also be considered.
