Reliable Electromagnetic Flow Measurement for Industrial Applications

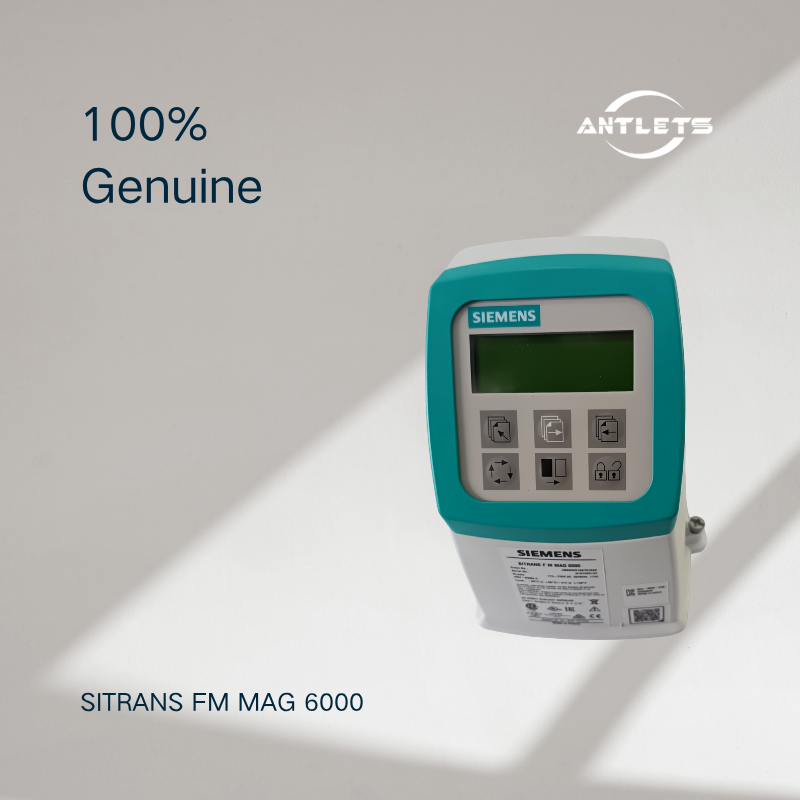

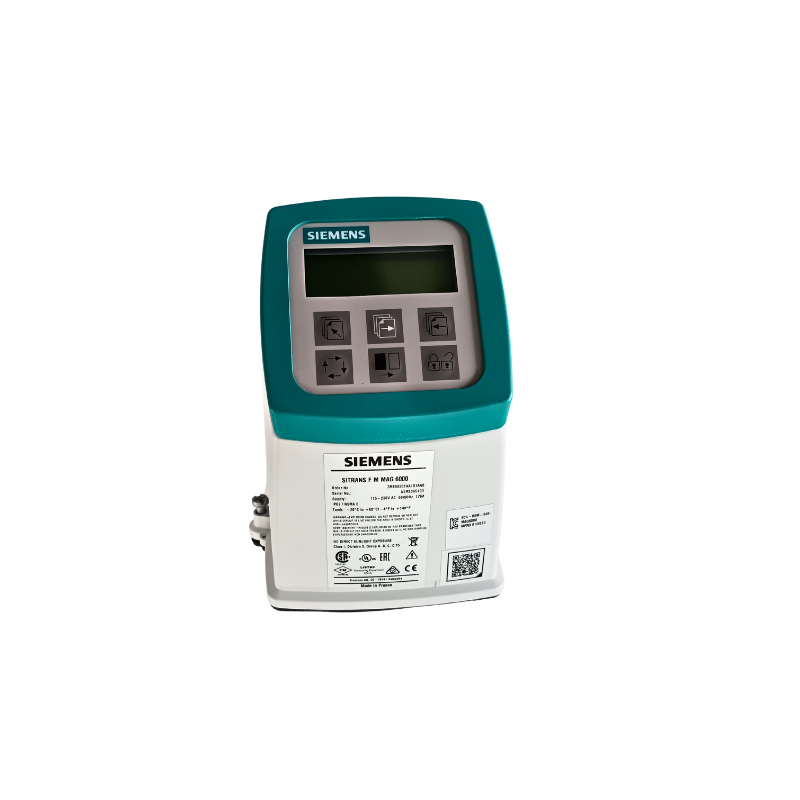

The Siemens SITRANS FM MAG 6000 I (7ME693) is an advanced electromagnetic flow transmitter designed for continuous measurement of conductive liquids.
Based on Faraday’s law of electromagnetic induction, the transmitter converts fluid velocity into an electrical signal proportional to flow rate, providing accurate and stable measurement without pressure loss or moving parts inside the pipe.
The system is widely used in:
Water and wastewater treatment
Chemical processing
Food and beverage production
Pharmaceutical industries
Mining and mineral processing
Pulp and paper
Power generation and cooling water systems
Compatible with Multiple SITRANS FM Sensors
The SITRANS FM MAG 6000 I transmitter is designed as part of Siemens’ modular electromagnetic flow measurement platform.
It can be combined with different sensor types, including:
SITRANS MAG 1100 – High-performance sensor for industrial applications
SITRANS MAG 3100 – General-purpose electromagnetic flow sensor
SITRANS MAG 5100 W – Optimized for water and wastewater applications
This flexible sensor selection allows engineers to configure the right measurement solution according to pipe size, process conditions, and application requirements.
High Accuracy and Stable Measurement Performance
The MAG 6000 I transmitter provides reliable flow measurement for demanding industrial processes.
Key advantages include:
High measurement accuracy
Excellent repeatability
Stable zero-point performance
No moving mechanical parts
Low maintenance requirements
Because electromagnetic flowmeters have no internal obstructions, they are especially suitable for fluids containing suspended solids or particles.
Designed for Conductive Liquids
The SITRANS FM MAG 6000 I is suitable for liquids with sufficient electrical conductivity.
Typical measured media include:
Water
Wastewater
Slurries
Chemical solutions
Process liquids
Cooling water
It is commonly selected when reliable flow measurement is required without affecting the pressure conditions of the pipeline.
Flexible Installation Options
The 7ME693 series supports both remote transmitter configurations and integration with compatible SITRANS FM sensors.
Installation benefits include:
Flexible transmitter mounting
Suitable for difficult installation environments
Easy maintenance access
Adaptable system configuration
Remote installation is especially useful when the sensor is installed in locations with high temperature, vibration, or limited accessibility.
Communication and Integration Options
The SITRANS FM MAG 6000 I supports various communication options to integrate with industrial control systems.
Available communication interfaces may include:
HART
PROFIBUS PA/DP
MODBUS RTU
FOUNDATION Fieldbus
DeviceNet
These options allow easy connection with modern automation systems and process control platforms.
Hazardous Area Versions Available
For applications in potentially explosive environments, Siemens offers versions designed for hazardous area requirements.
The MAG 6000 I Ex variant supports certified applications in hazardous areas, making it suitable for industries such as:
Oil & gas
Chemical plants
Petrochemical facilities
Other classified industrial environments
Low Maintenance Electromagnetic Technology
Compared with mechanical flow measurement technologies, electromagnetic flowmeters offer long-term reliability because they contain no moving parts.
Benefits include:
Reduced wear and maintenance
No pressure drop
Suitable for dirty or particle-containing fluids
Long operational lifetime
This makes the MAG 6000 I a practical choice for continuous industrial flow monitoring.
Typical Applications
Water & Wastewater Treatment
Suitable for:
Raw water measurement
Drinking water distribution
Wastewater discharge monitoring
Sludge flow measurement
Chemical Industry
Used for:
Chemical dosing systems
Process liquid measurement
Corrosive liquid monitoring
Food & Beverage Industry
Applied in:
Ingredient flow measurement
Cleaning process monitoring
Production line control
Power Industry
Suitable for:
Cooling water monitoring
Utility water measurement
Process water management
FAQ
What is Siemens 7ME693 used for?
Siemens 7ME693 is the model series for the SITRANS FM MAG 6000 I electromagnetic flow transmitter, used for accurate volume flow measurement of conductive liquids in industrial applications.
What sensors can be connected to SITRANS FM MAG 6000 I?
The transmitter is compatible with:
MAG 1100
MAG 3100
MAG 5100 W
This allows users to select different sensors according to application requirements.
What type of fluids can SITRANS FM MAG 6000 I measure?
It measures electrically conductive liquids, including water, wastewater, chemicals, slurries, and other industrial process fluids.
Does the MAG 6000 I have moving parts?
No. Electromagnetic flow measurement uses magnetic fields and electrodes rather than mechanical components, resulting in low maintenance and long service life.
What is the difference between SITRANS MAG 6000 and MAG 6000 I?
The main difference is the installation environment and performance level:
MAG 6000: General electromagnetic flow transmitter.
MAG 6000 I: Industrial version designed for more demanding applications, including remote installation and hazardous area variants.
Is Siemens 7ME693 suitable for wastewater applications?
Yes. Combined with suitable SITRANS FM sensors, the MAG 6000 I is widely used in wastewater treatment, sludge measurement, and other water management applications.
