Compact Level Detection for Water-Based Liquids

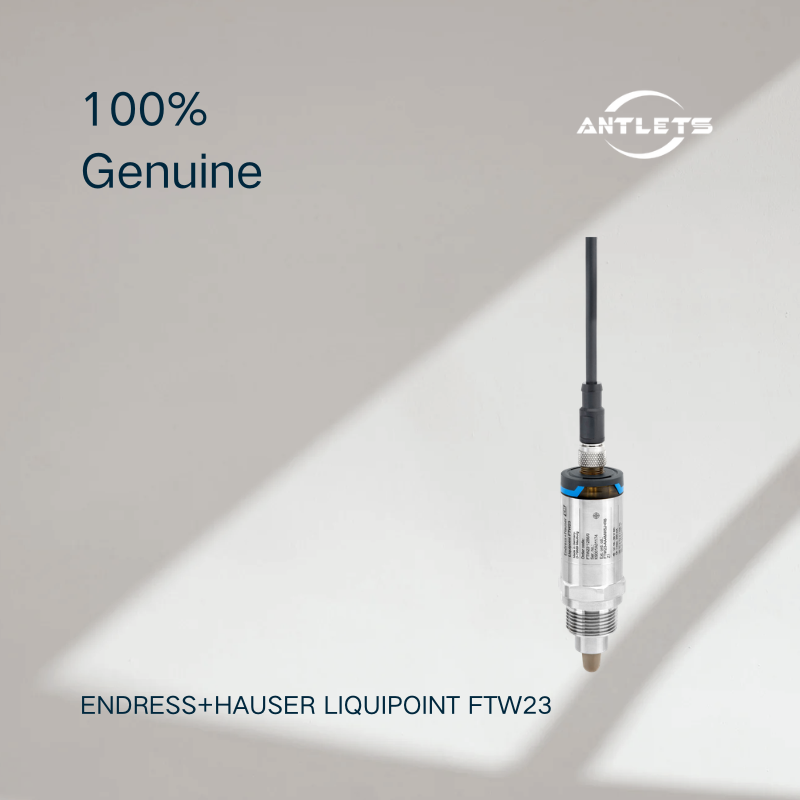

The Liquipoint FTW23 is a capacitive point level switch designed for detecting the presence or absence of water-based liquids.
Its compact design makes it practical for storage tanks, mixing vessels and pipes, especially where installation space is limited or access around the process connection is restricted.
Rather than requiring a large measuring system, the FTW23 provides a straightforward solution for applications that only need reliable point level detection.
A Simple Solution That Does Not Require Individual Medium Adjustment
One of the practical advantages of the FTW23 is that individual adjustment to each medium is not necessary for its intended applications.
For factory settings, the device is designed for media with a dielectric constant above 20. With IO-Link adjustment, media with a dielectric constant above 1.5 can be detected, according to the selected application and configuration.
This makes commissioning simpler when different water-based liquids are handled within the applicable range.
IO-Link Makes Configuration Easier
The FTW23 supports IO-Link, allowing device parameters to be configured through engineering tools.
For plants using IO-Link infrastructure, this can reduce the complexity of device setup and make parameter management more convenient compared with purely manual configuration.
The device also provides an LED display for an immediate on-site function check.
Built for Hygienic Processes
The FTW23 was developed for the food industry and meets international hygiene requirements. It is available with 3-A and EHEDG hygienic approvals, making it suitable for hygienic process installations where cleanability and material compatibility are important.
The sensor is made from 316L, with PEEK used as the sensor insulation.
Ready for CIP and SIP Cleaning
For hygienic production environments, cleaning conditions are often just as important as normal process operation.
The FTW23 is designed for CIP and SIP cleaning and provides protection up to IP69. Its standard process temperature range is -20 to +100°C, while cleaning temperatures can reach 135°C for up to one hour.
This gives the device the flexibility required for regular cleaning cycles in suitable food and beverage installations.
Designed for Tight Installation Spaces
The compact construction is one of the reasons the FTW23 fits well into smaller process systems.
It can be installed where access is restricted, while process connections are available with G1, G1/2, G3/4 and M24 threads, depending on the selected configuration.
Reliable Point Level Detection Without Overcomplicating the System
The FTW23 is not intended to replace a continuous level transmitter when a complete level profile is required. Its strength is simpler: detecting a defined liquid level reliably and economically.
For water-based liquids in tanks, pipes and mixing vessels, this compact approach can provide exactly the level information the control system needs without adding unnecessary complexity.
Key Features
- Capacitive point level switch for liquids
- Designed primarily for water-based liquids
- Compact design for restricted installation spaces
- IO-Link communication
- DC PNP output
- Supply voltage: 10–30 V DC
- No individual medium adjustment required for applicable standard media
- Process temperature: -20 to +100°C
- CIP/SIP cleaning: up to 135°C for 1 hour
- Process pressure: vacuum to 16 bar
- Sensor material: 316L
- Sensor insulation: PEEK
- Protection up to IP69
- 3-A and EHEDG hygienic approvals
- LED indication for on-site function check
- Threaded process connections: G1, G1/2, G3/4 and M24
- CSA C/US approval available
- EN 10204-3.1 design approval available
Typical Applications
Food & Beverage Processing
The FTW23 is designed with hygienic applications in mind and can be used for point level detection in food and beverage process equipment.
Water-Based Liquids
Suitable for point level detection of applicable water-based liquids in tanks, vessels and pipes.
Storage Tanks
Used for detecting defined liquid levels in storage tanks where continuous level measurement is not required.
Mixing Vessels
The compact design makes the FTW23 suitable for point level detection in mixing and process vessels.
Hygienic Process Lines
CIP/SIP capability, IP69 protection and hygienic approvals make it suitable for appropriate hygienic process installations.
Compact Process Equipment
A practical choice where the installation area is small or access around the process connection is limited.
FAQ
What is the Liquipoint FTW23 used for?
The FTW23 is a capacitive point level switch for liquids, primarily intended for water-based liquids. Typical installations include storage tanks, mixing vessels and pipes.
Is the FTW23 a continuous level transmitter?
No. It is a point level switch. It detects a defined liquid level rather than continuously measuring the entire level range.
What type of liquids can the FTW23 detect?
The product is primarily designed for water-based liquids. Endress+Hauser specifies factory suitability for media with a dielectric constant above 20, while IO-Link adjustment allows detection of applicable media with a dielectric constant above 1.5.
Does the FTW23 need to be adjusted for every liquid?
For its intended standard applications, individual adjustment to each medium is not necessary. IO-Link also provides adjustment capability for applicable media with lower dielectric constants.
Does the FTW23 support IO-Link?
Yes. IO-Link is available for device configuration and communication.
What is the operating temperature?
The standard process temperature range is -20 to +100°C. During cleaning, the device can withstand 135°C for up to one hour.
What is the maximum process pressure?
The specified process pressure range is from vacuum to 16 bar.
Is the FTW23 suitable for CIP and SIP?
Yes. The FTW23 is designed for CIP and SIP cleaning and provides protection up to IP69. The specified cleaning temperature is up to 135°C for one hour.
Is the FTW23 suitable for food and beverage applications?
Yes. Endress+Hauser developed the FTW23 for the food industry, and the product is available with 3-A and EHEDG hygienic approvals.
What material is the sensor made from?
The main sensor material is 316L, with PEEK used for sensor insulation.
What output does the FTW23 use?
The FTW23 provides a DC PNP output and supports IO-Link communication.
What process connections are available?
Threaded connections include G1, G1/2, G3/4 and M24, depending on the selected configuration.
