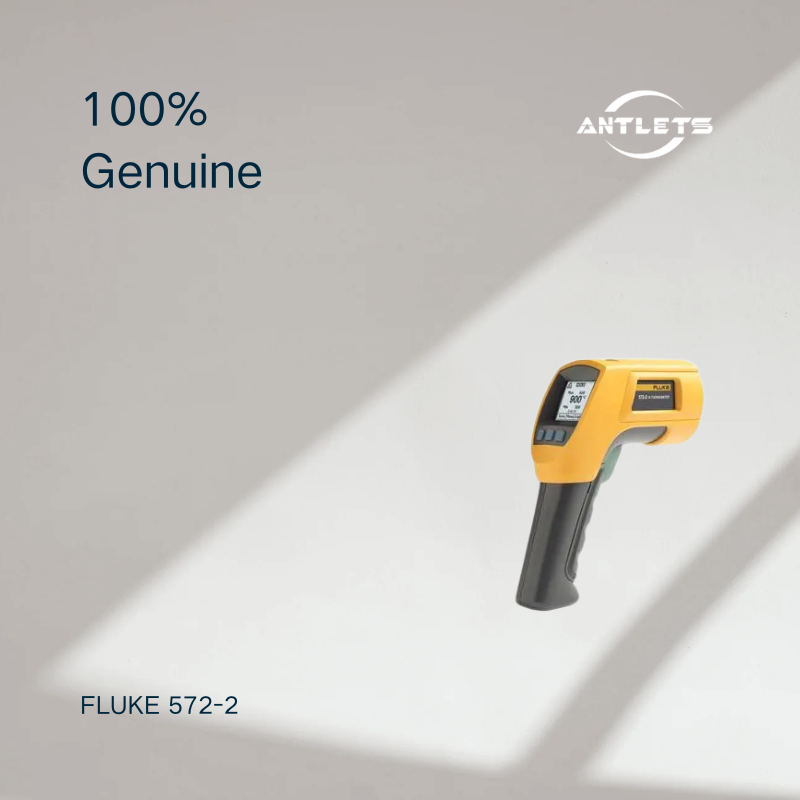

Fluke 572-2 High Temperature Infrared Thermometer

The Fluke 572-2 High Temperature Infrared Thermometer is a professional handheld temperature measurement instrument designed for high-temperature industrial environments. It provides non-contact infrared measurement up to 900 °C, allowing technicians to inspect hot surfaces without direct contact.

Its combination of long-distance targeting, adjustable emissivity, data storage and K-type thermocouple capability makes it suitable for routine inspection as well as troubleshooting in demanding industrial applications.

High-Temperature Non-Contact Measurement

The Fluke 572-2 measures infrared temperatures from -30 °C to 900 °C (-22 °F to 1652 °F). At temperatures of 0 °C and above, infrared accuracy is specified as ±1 °C or ±1% of the reading, whichever is greater, under the specified calibration conditions.

The 60:1 distance-to-spot ratio allows users to measure smaller targets from greater distances, which is particularly useful when equipment is hot, moving or difficult to access.

Dual Laser Targeting for Accurate Measurement

The 572-2 uses an offset dual laser sighting system to help identify the measurement area. The minimum spot size is 19 mm, while the 8 μm to 14 μm spectral response supports infrared temperature measurement across its specified range.

This makes the instrument suitable for inspecting individual components, pipes, process equipment, electrical connections and other localized heat sources.

Infrared and K-Type Thermocouple Measurement

In addition to infrared measurement, the Fluke 572-2 accepts K-type thermocouple input, allowing users to compare contact and non-contact temperature measurements.

The K-type thermocouple input supports a measurement range of -270 °C to 1372 °C, while the included bead probe is specified for -40 °C to 260 °C.

Key Specifications

•
  Infrared temperature range: -30 °C to 900 °C

•
  IR accuracy: ±1 °C or ±1% of reading, whichever is greater, above 0 °C

•
  Distance-to-spot ratio: 60:1

•
  Minimum spot size: 19 mm

•
  Laser sighting: Offset dual laser

•
  Emissivity: Adjustable from 0.10 to 1.00

•
  Spectral response: 8 μm to 14 μm

•
  Response time: Less than 500 ms

•
  Display resolution: 0.1 °C / 0.1 °F

•
  K-type input range: -270 °C to 1372 °C

•
  Data storage: Up to 99 measurement points

•
  Communication: USB 2.0

•
  Power: 2 AA batteries

•
  Weight: Approximately 0.322 kg


Adjustable Emissivity and Temperature Analysis

The Fluke 572-2 provides digitally adjustable emissivity from 0.10 to 1.00 in 0.01 increments, as well as a built-in emissivity table for common materials. This helps users compensate for differences in surface emissivity when measuring different materials.

The display can show:

•
  Current temperature

•
  Maximum temperature

•
  Minimum temperature

•
  Average temperature

•
  Differential temperature


Users can also set high and low temperature alarms for faster identification of abnormal conditions.

Data Storage and Field Documentation

The Fluke 572-2 can store up to 99 measurement data sets for later review and analysis. It also includes a USB 2.0 computer interface and supports connection with Fluke documentation software.

A backlit display with two brightness levels helps maintain visibility in different working environments, while the last-reading Hold function retains the previous measurement for approximately 20 seconds.

Industrial Applications

The Fluke 572-2 is suitable for high-temperature inspection and maintenance applications including:

•
  Power generation and utility equipment

•
  Metal refining and smelting

•
  Glass manufacturing

•
  Cement production

•
  Petrochemical facilities

•
  Industrial process equipment

•
  High-temperature machinery

•
  Pipes and process lines

•
  Electrical and mechanical inspection

•
  Preventive maintenance

•
  Troubleshooting and condition monitoring


Fluke specifically identifies power utility, metal refining and smelting, glass, cement and petrochemical environments as suitable applications for the 572-2.

Included Accessories

The standard Fluke 572-2 package includes:

•
  K-type thermocouple bead probe

•
  USB 2.0 computer interface cable

•
  Durable hard carrying case

•
  FlukeView® Forms Documenting Software

•
  Getting started guide

•
  User's manual


FAQ

What is the maximum temperature the Fluke 572-2 can measure?

The Fluke 572-2 can measure infrared temperatures up to 900 °C (1652 °F).

What is the distance-to-spot ratio of the Fluke 572-2?

The Fluke 572-2 has a 60:1 distance-to-spot ratio, allowing accurate measurement of smaller targets from relatively long distances.

Does the Fluke 572-2 support thermocouple measurement?

Yes. It accepts K-type thermocouple input and can display infrared and thermocouple temperatures. The K-type input range is -270 °C to 1372 °C.

Can the emissivity be adjusted?

Yes. Emissivity can be digitally adjusted from 0.10 to 1.00 in 0.01 increments, or selected using the built-in emissivity table.

How many measurements can the Fluke 572-2 store?

The instrument can store up to 99 measurement data sets for review and analysis.

Does the Fluke 572-2 include a calibration certificate?

The standard product does not include a current calibration certificate. Fluke states that a calibration certificate can be ordered separately when required.
