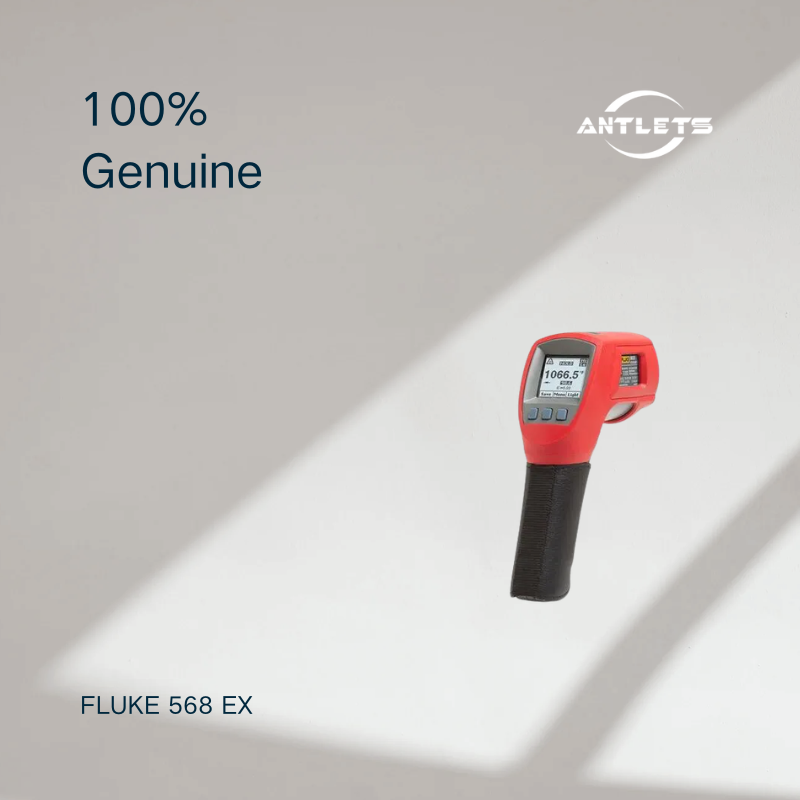

Fluke 568 Ex Intrinsically Safe Infrared Thermometer

$434.00

The Fluke 568 Ex provides reliable infrared and contact temperature measurement for hazardous-area maintenance and inspection. Its 50:1 distance-to-spot ratio allows smaller targets to be measured from a greater distance.

With K-type thermocouple compatibility, adjustable emissivity, data storage, alarms, and a rugged design, it is suitable for demanding industrial temperature measurement applications.

🕑 Lead time: In stock
Quantity:
Delivery & return Ask a Question
Visa PayPal Mastercard American Express

Product Overview

The Fluke 568 Ex Intrinsically Safe Infrared Thermometer is a rugged temperature measurement solution designed for use in hazardous industrial environments where intrinsically safe equipment is required. Certified for Class I Division 1 and 2 and Zone 1 and 2 hazardous areas, it enables technicians to perform temperature inspections in petroleum, oil and gas, chemical, pharmaceutical, and other Ex-rated applications.

The Fluke 568 Ex combines non-contact infrared measurement with K-type thermocouple contact measurement, allowing technicians to select the appropriate method for different inspection conditions. Its infrared measurement range covers -40°C to 800°C, while the K-type input supports contact temperature measurements from -270°C to 1372°C. The 50:1 distance-to-spot ratio and 19 mm minimum spot size allow smaller targets to be measured from a greater distance.

Designed for practical field use, the Fluke 568 Ex features a simple three-button interface, adjustable emissivity from 0.10 to 1.00, a built-in materials emissivity table, single-point laser sighting, and a two-level backlight. Users can set high and low temperature alarms, view Min/Max/Avg/Dif values, and store up to 99 measurement points for later review.

Key Features

  • Intrinsically safe infrared and contact thermometer
  • Suitable for Class I Div. 1 & 2 and Zone 1 & 2 hazardous environments
  • -40°C to 800°C infrared temperature range
  • -270°C to 1372°C K-type thermocouple input range
  • 50:1 distance-to-spot ratio
  • 19 mm minimum measurement spot
  • Single-point laser sighting
  • Adjustable emissivity from 0.10 to 1.00
  • Built-in emissivity table for common materials
  • K-type thermocouple compatibility
  • Audible and visual high/low temperature alarms
  • Min/Max/Avg/Dif measurement functions
  • Storage for up to 99 temperature readings
  • Two-level display backlight
  • Trigger lock for continuous measurements
  • Rugged ergonomic design for industrial field use
  • Conductive carrying case for transportation in hazardous areas

Typical Applications

  • Oil and gas facility inspection
  • Petroleum and refining equipment
  • Chemical processing plants
  • Pharmaceutical manufacturing
  • Hazardous-area electrical inspection
  • Motors, pumps, valves and rotating equipment
  • Process equipment temperature monitoring
  • Industrial maintenance and troubleshooting
  • Ex-rated plant maintenance and commissioning

Specifications

Infrared temperature range-40°C to 800°C (-40°F to 1472°F)
Infrared accuracy< 0°C (32°F): ±(1.0°C (±2.0°F) + 0.1°/1°C or°F)
> 0°C (32°F): ±1% or ±1.0°C (±2.0°F), whichever is greater
Display resolution0.1°C / 0.1°F
Infrared spectral response8 µm to 14 µm
Infrared response time< 500 ms
Thermocouple type-k input temperature range-270°C to 1372°C (-454°F to 2501°F)
Thermocouple type-k input accuracy< -40°C: ±(1°C + 0.2°/1°C)
≥ -40°C: ±1% or 1°C, whichever is greater
< -40°F: ±(2°F + 0.2°/1°F)
≥ -40°F: ±1% or 2°F, whichever is greater
D:S (distance to measurement spot size)50:1
Laser sightingSingle-point laser
Minimum spot size19 mm (0.75 in)
Emissivity adjustmentBy built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01
Data storage99 points
Hi/Low alarmsAudible and two-color visual
Min/Max/Avg/DifYes
DisplayDot matrix with function menus
BacklightTwo levels, normal and extra bright for darker environments
Trigger lockYes
Switchable celsius and fahrenheitYes
Power2 AAA/LR03 type-approved batteries (For a list of type-approved batteries, refer to Product Safety Instructions.)
Battery life4 hours with laser and backlight on; 100 hours with laser and backlight off, at 100% duty cycle
Operating temperature0°C to 50°C (32°F to 122°F)
Storage temperature-20°C to 60°C (-40°F to 140°F)
Bead thermocouple type-k range-40°C to 260°C (-40°F to 500°F)
Bead thermocouple type-k accuracy±1.1°C (2.0°F) from 0°C to 260°C (32 °F to 500°F), typically within 1.1°C (2.0°F) from -40°C to 0°C (-40°F to 32°F)
