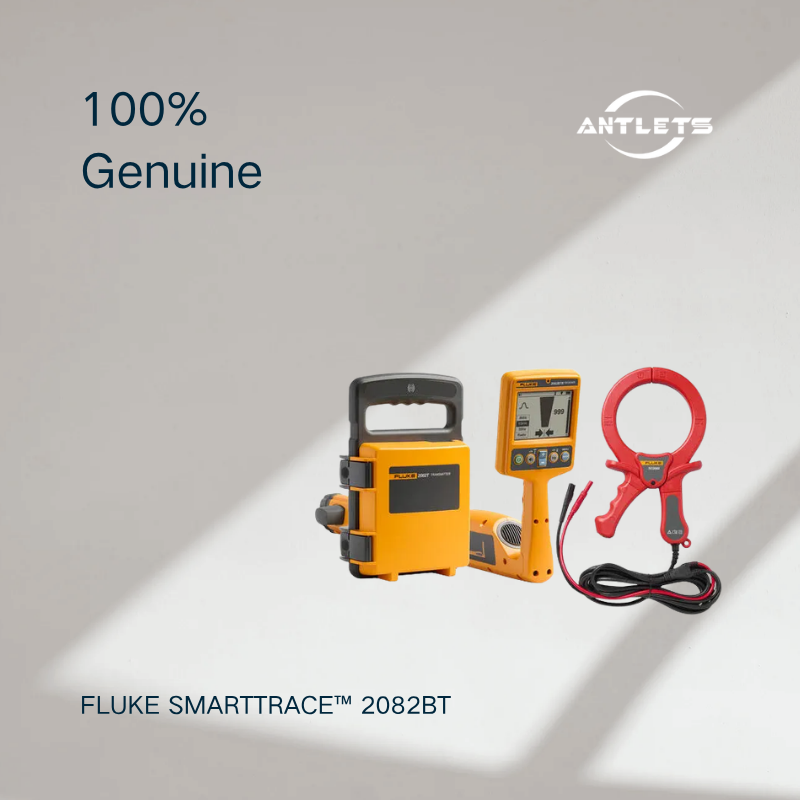

The Fluke SmartTrace 2082BT Premium Underground Utility Locator Kit is designed for professionals who need to locate, trace, document, and troubleshoot buried utilities in demanding field environments. It combines an underground utility receiver and transmitter with Bluetooth mapping, signal induction, and fault-location capabilities, providing a more complete workflow than a basic cable locator.
The system supports tracing of both energized and de-energized lines across power, telecommunications, and infrastructure applications. The transmitter is rated CAT IV 600 V, providing a high level of electrical safety when working around energized circuits. The locator provides depth measurements up to 20 ft (6 m) and detection distances up to 100 ft (30 m) under specified conditions.

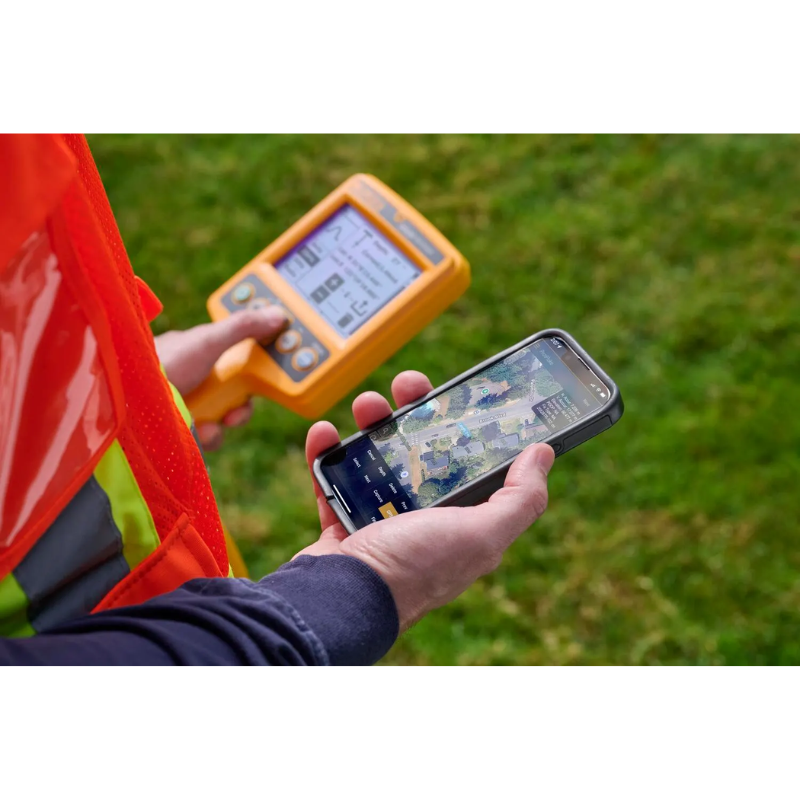

A key advantage of the Premium model is its integrated Bluetooth® connectivity. The Bluetooth-enabled receiver can connect with PointMan® for real-time GPS mapping and digital documentation, allowing field teams to record underground utility locations and create digital records directly from a mobile device. This helps reduce manual transcription and makes utility information easier to document and share.
The Premium Kit also includes two important accessories that extend its locating capabilities. The SC2082 Signal Clamp provides non-contact signal induction when a direct electrical connection is not practical, while the AF2082 A-Frame is designed for pinpointing cable faults and ground faults. Together, these functions allow technicians to move from basic utility tracing to more advanced fault investigation.
For outdoor field work, the SmartTrace 2082BT Premium features an IP54-rated housing and a high-visibility grayscale display designed to remain readable in bright sunlight and heavy rain. The complete kit includes the receiver, transmitter, carrying case, test leads, mapping flags, Signal Clamp, A-Frame, marker holder, and required batteries, providing a ready-to-deploy solution for underground utility locating.
Key Features
- Professional underground utility locator kit
- Traces energized and de-energized lines
- CAT IV 600 V safety for energized circuit work
- Built-in Bluetooth® connectivity
- PointMan® GPS mapping and digital documentation
- Detection range up to 100 ft (30 m)
- Depth measurement up to 20 ft (6 m)
- Multiple tracing modes for different field conditions
- SC2082 Signal Clamp included for non-contact signal induction
- AF2082 A-Frame included for cable and ground fault locating
- High-visibility grayscale display
- IP54 field enclosure
- Operating temperature: -20°C to 50°C
- Complete carrying case and field accessory set
- Suitable for power, telecom, utility, and infrastructure applications
Typical Applications
- Underground electrical cable locating
- Buried communication cable tracing
- Utility infrastructure mapping
- Energized and de-energized circuit tracing
- Cable fault locating
- Ground fault investigation
- Power distribution maintenance
- Telecommunications infrastructure work
- Construction and excavation planning
- Utility inspection and documentation
- Field service and maintenance
- Underground asset mapping

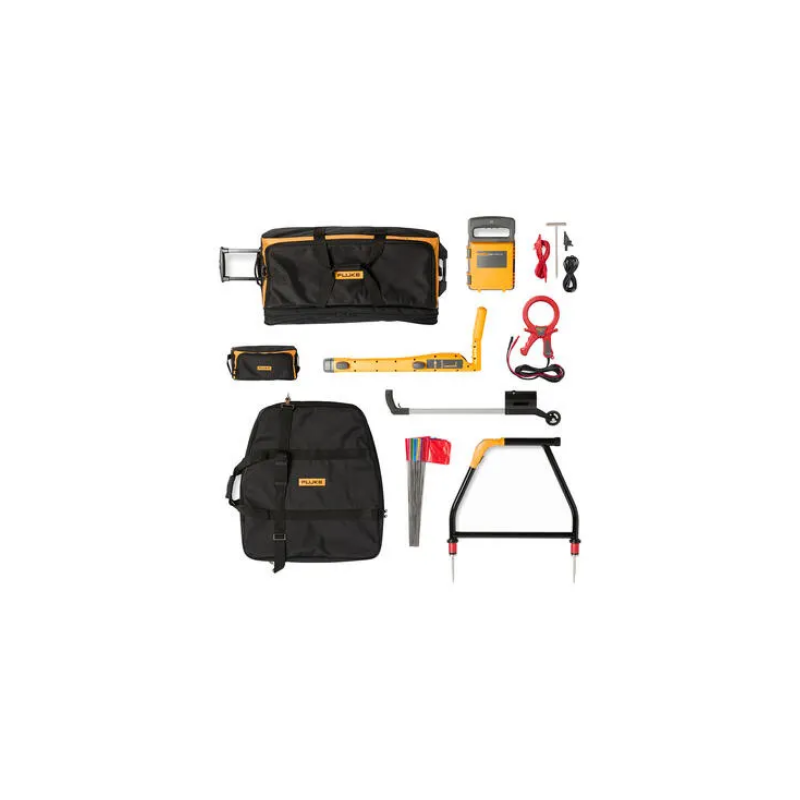

Kit Includes
- 2082BTR Bluetooth Receiver
- 2028T Transmitter
- SC2082 Signal Clamp
- AF2082 A-Frame
- C2082 Carrying Case
- TL2082 Test Lead Kit
- FLG2082 8-Color Mapping Flags, 100-pack
- MH2082 Marker Holder
- FP-UAT-600 Fuse, 2-pack
- 6 AA batteries
- 8 D-cell batteries
