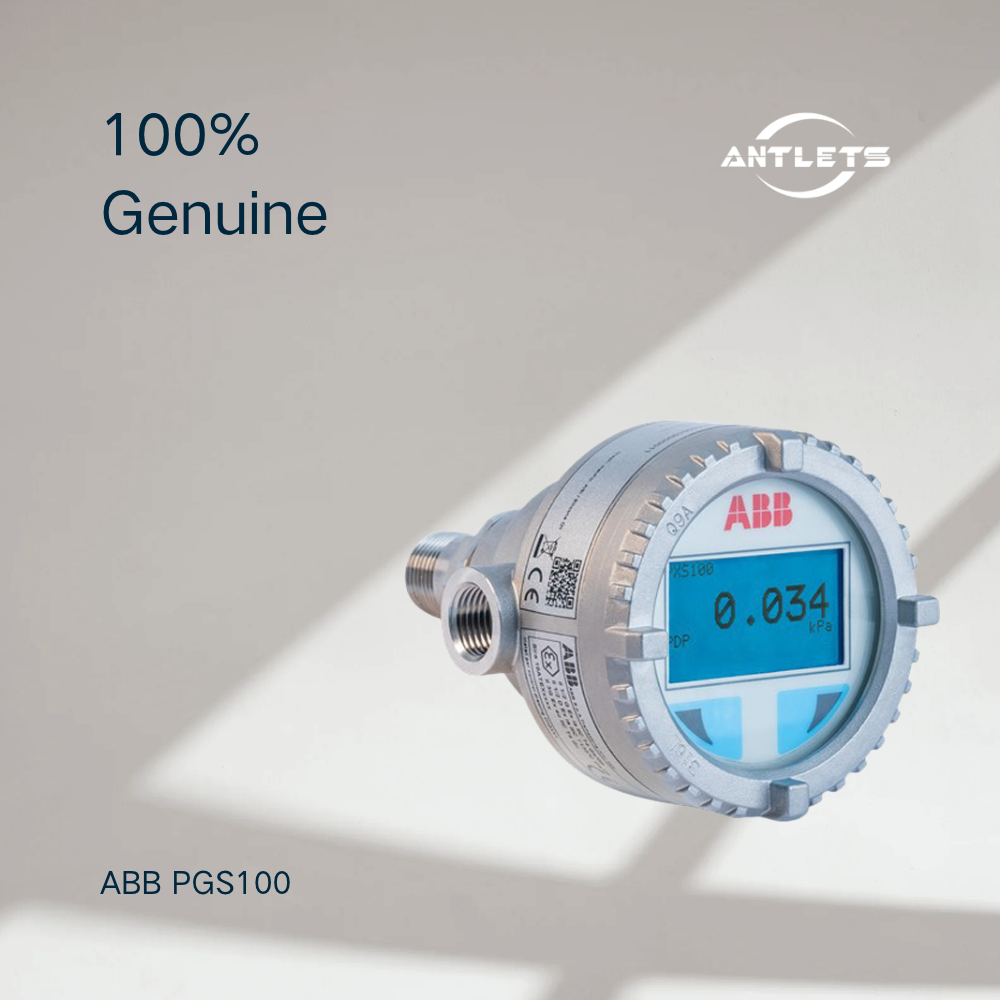

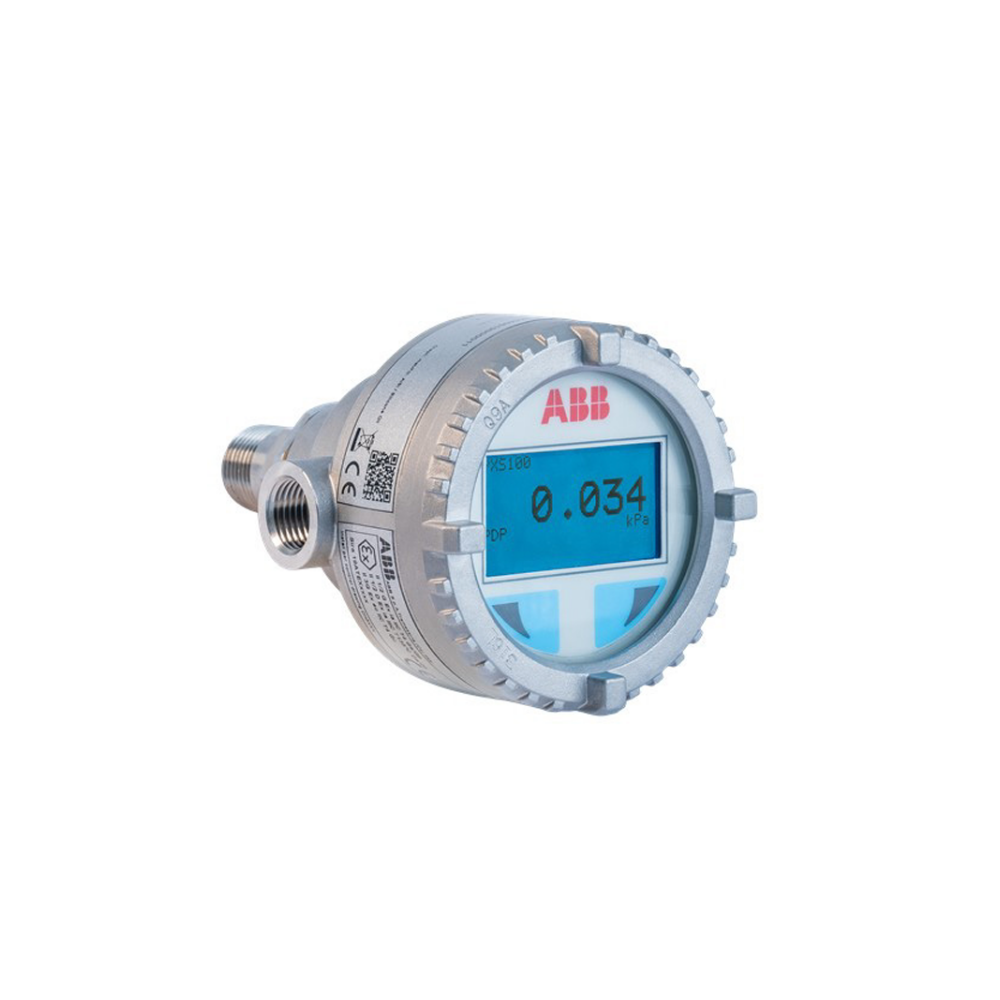

The ABB PGS100 is designed for industrial users who need dependable gauge pressure measurement with simple installation and operation. Its integral process connections can be combined with adapters and flanges to suit different installation requirements, including ABB M26 manifold systems.
Key Features
- Base accuracy: ±0.25%; optional ±0.1% and ±0.075%
- Measurement span limits: From 3 mbar to 100 bar, depending on sensor configuration
- Process media: Liquids, gases, and steam
- Output: 4–20 mA, with optional HART digital communication
- Housing: Compact stainless steel construction
- Local operation: Optional backlit display and touch-based HMI
- Setup: Easy Set up feature for local parameter configuration
- Optional technologies: Diaflex anti-abrasion protection and H-Shield hydrogen permeation protection
- Diagnostics: Optional QR-code-based Digital Access Diagnostic support
Applications
Suitable for general pressure monitoring in water treatment, chemical processing, energy, manufacturing, and other industrial process systems involving liquids, gases, or steam.
Why Choose ABB PGS100?
The PGS100 combines compact construction, flexible installation options, and accessible local operation in a cost-effective pressure measurement solution for standard industrial applications.
1. What is the ABB PGS100 used for?
The PGS100 measures gauge pressure in industrial processes involving liquids, gases, and steam.
2. What is the accuracy of the ABB PGS100?
Its base accuracy is ±0.25%, with optional accuracy grades of ±0.1% and ±0.075%.
3. What is the maximum measurement span of the PGS100?
The maximum span limit is up to 100 bar (1450 psi), depending on the selected sensor range.
4. Does the ABB PGS100 support HART communication?
Yes. A 4–20 mA output with HART digital communication is available, alongside the analog output option.
5. Does the PGS100 have a local display?
A backlit display is available as an option for local readings and configuration.
6. Can the PGS100 measure steam pressure?
Yes. It is designed for liquid, gas, and steam applications, provided the selected configuration meets the process temperature and pressure requirements.
7. What is ABB Diaflex technology?
Diaflex is an optional anti-abrasion technology intended for applications where abrasion resistance is important.
8. What is ABB H-Shield technology?
H-Shield is an optional technology designed to help reduce hydrogen permeation in suitable applications.
9. Can the PGS100 be installed with a manifold?
Yes. Its integral process connections can be combined with suitable adapters and flanges, including compatible ABB M26 manifold arrangements.
10. What information is needed to order the correct PGS100?
Provide the required pressure range, process medium, operating conditions, process connection, output signal, accuracy requirement, display preference, and any special material or protection requirements.
