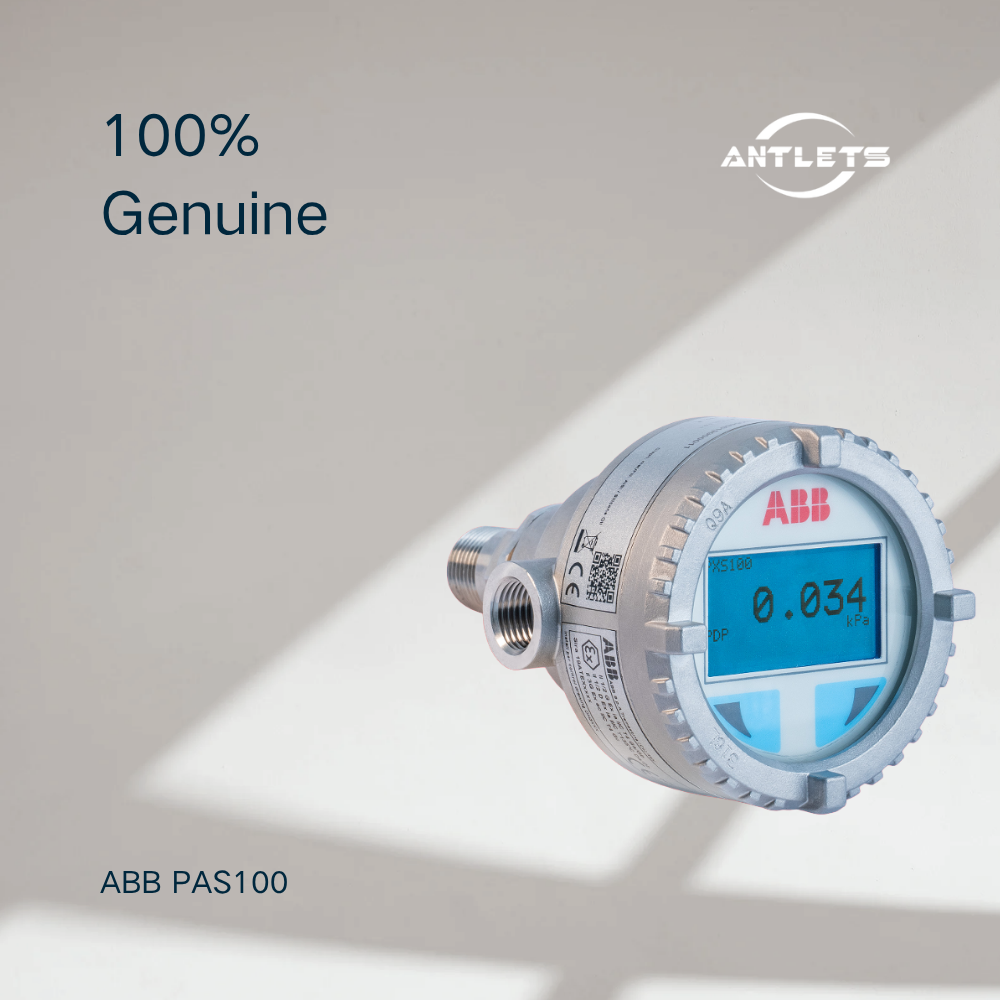

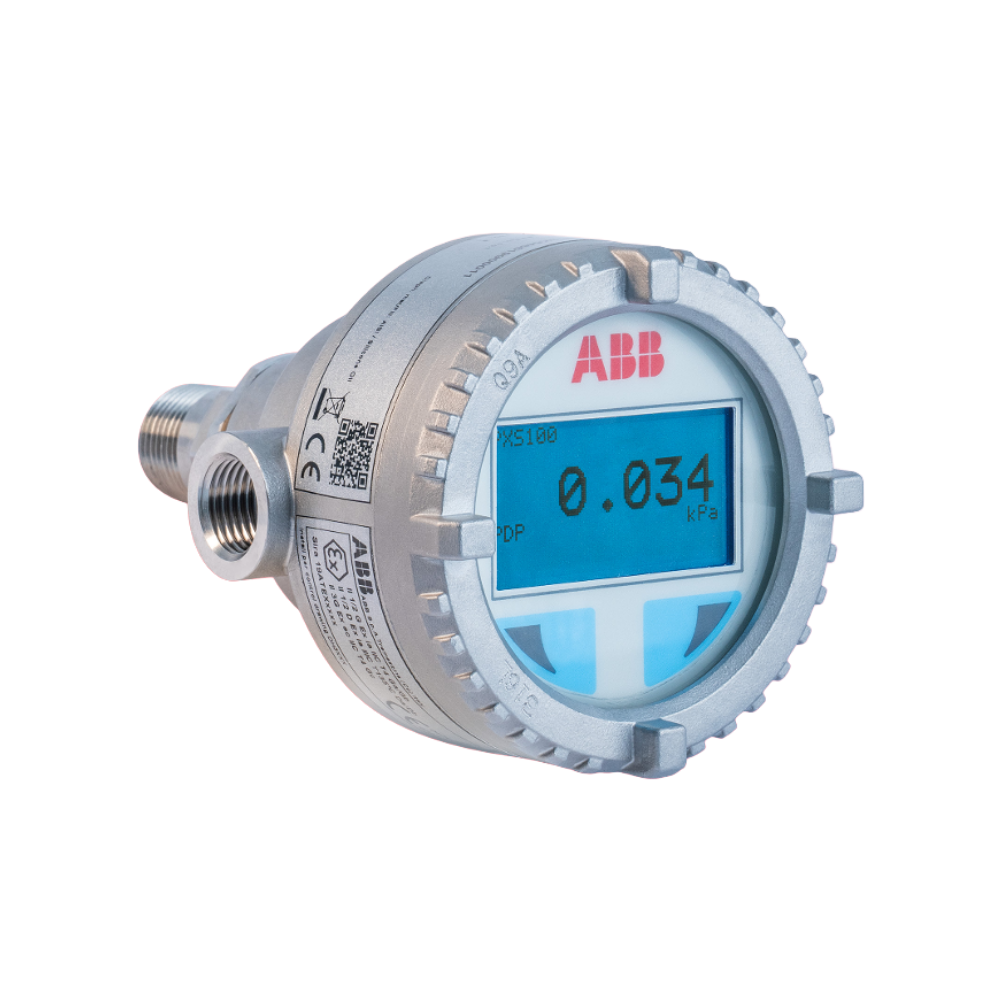

The ABB PAS100 is a compact absolute pressure transmitter designed for standard industrial measurement requirements. It measures absolute pressure in liquid, gas, and steam processes, combining a robust stainless steel housing with straightforward installation and local configuration.
Key Features
- Absolute pressure measurement for liquid, gas, and steam
- Base accuracy of ±0.25%; optional ±0.1% and ±0.075%
- Measurement spans from 3 mbar up to 100 bar, depending on sensor configuration
- 4–20 mA output with optional HART digital communication
- Optional backlit display with two-button touch operation
- Easy Set Up for local parameter configuration
- Stainless steel housing resistant to humidity and vibration
- Integral process connections with compatible adapters and flanges
- Optional Diaflex anti-abrasion and H-Shield anti-hydrogen-permeation technologies
- Optional Digital Access Diagnostics via QR code
Applications
Suitable for pressure monitoring in industrial liquid, gas, and steam systems, including process equipment, utility systems, and general manufacturing applications. Select the appropriate sensor range, wetted materials, process connection, and approvals according to the medium and operating conditions.
Why Choose the ABB PAS100?
The PAS100 combines a compact design, flexible installation options, and convenient local configuration for straightforward integration into industrial pressure measurement systems.
Q1: What is the ABB PAS100 Absolute Pressure Transmitter used for?
It measures absolute pressure in liquid, gas, and steam applications for industrial monitoring and process control.
Q2: What is the measuring range of the PAS100?
The published span limits extend from 3 mbar to 100 bar, depending on the selected sensor and configuration.
Q3: What is the accuracy of the ABB PAS100?
The base accuracy is ±0.25%, with optional accuracy levels of ±0.1% and ±0.075%.
Q4: Does the PAS100 support HART communication?
Yes. A 4–20 mA output with HART digital communication is available. Confirm the required output when ordering.
Q5: Does the PAS100 have a local display?
An optional backlit display with two-button touch operation is available for local configuration and viewing.
Q6: What process media can the PAS100 measure?
It is designed for absolute pressure measurement in liquids, gases, and steam. Check material compatibility for the specific process medium.
Q7: Can the PAS100 be installed in demanding industrial environments?
Its stainless steel housing is designed to resist humidity and vibration. Suitability depends on the actual environmental and process conditions.
Q8: Are different process connections available?
Yes. Integral process connections can be combined with compatible adapters and flanges to suit different installation requirements.
Q9: What is the purpose of the PAS100's Digital Access Diagnostics feature?
The optional QR code feature provides access to device status information, diagnostic messages, possible causes, and troubleshooting guidance.
Q10: How can I request a quotation for the ABB PAS100?
Provide the required pressure range, process medium, accuracy, output protocol, process connection, and any hazardous-area or other approval requirements to help identify the appropriate configuration.
