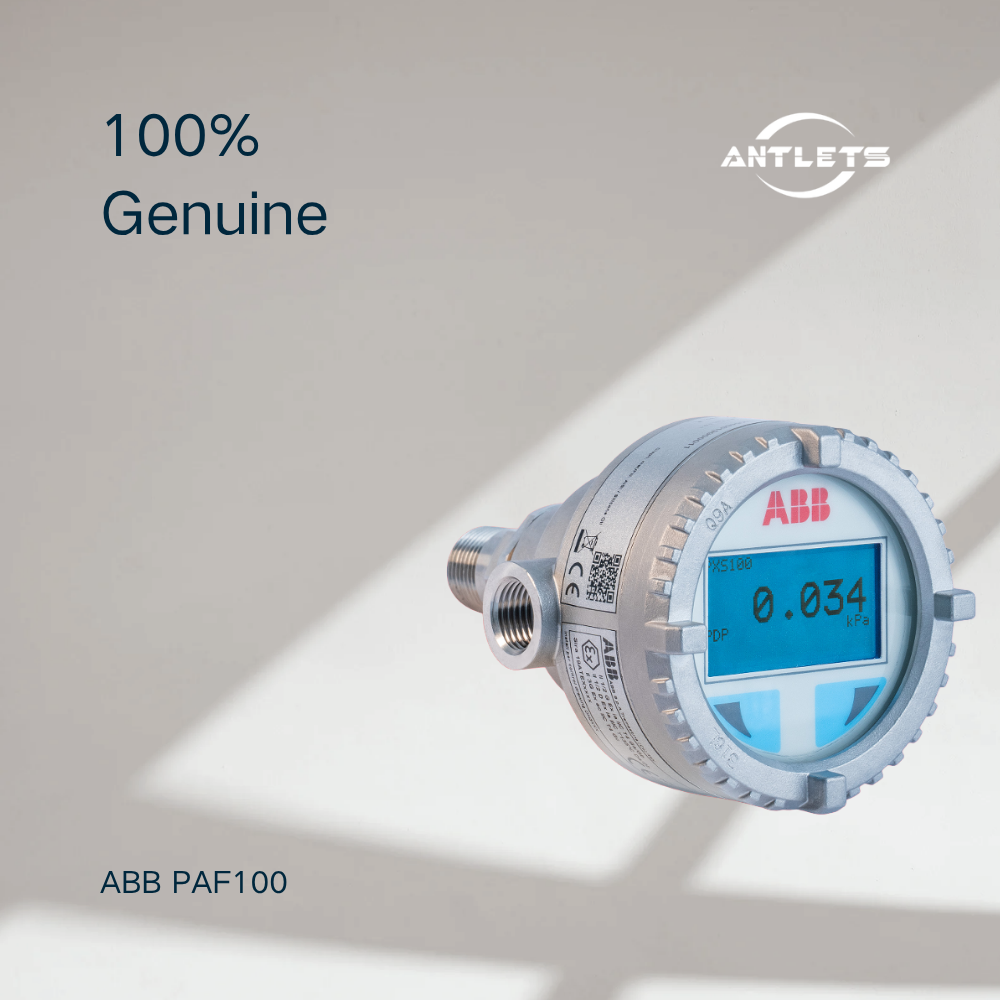

The ABB PAF100 is a hygienic absolute pressure transmitter developed for sanitary process applications, particularly in the food and beverage industries. Its compact stainless steel construction, hygienic connection options, and local configuration interface support reliable pressure monitoring while helping maintain process hygiene.
Key Features
- Hygienic absolute pressure measurement
- Base accuracy of ±0.1%; optional ±0.075%
- Measurement spans from 3 mbar to 100 bar, depending on configuration
- 4–20 mA analog output with optional HART communication

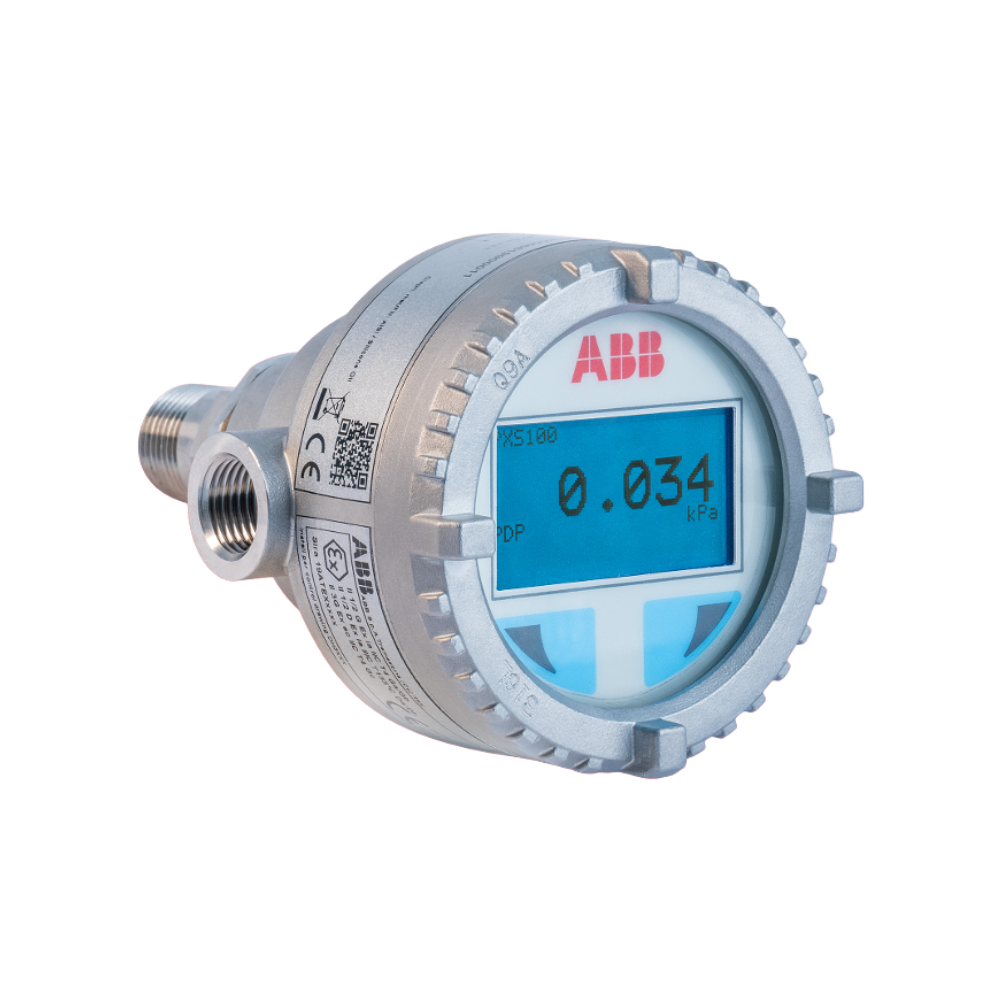

- Optional high-visibility backlit display and two-button touch interface
- Easy Set Up for local parameter configuration
- 3-A, FDA, and EHEDG certifications available
- Wetted materials aligned with EC Regulation 1935/2004 requirements
- Hygienic adapters for flexible installation
- Optional Diaflex anti-abrasion technology and treatment for demanding vacuum applications

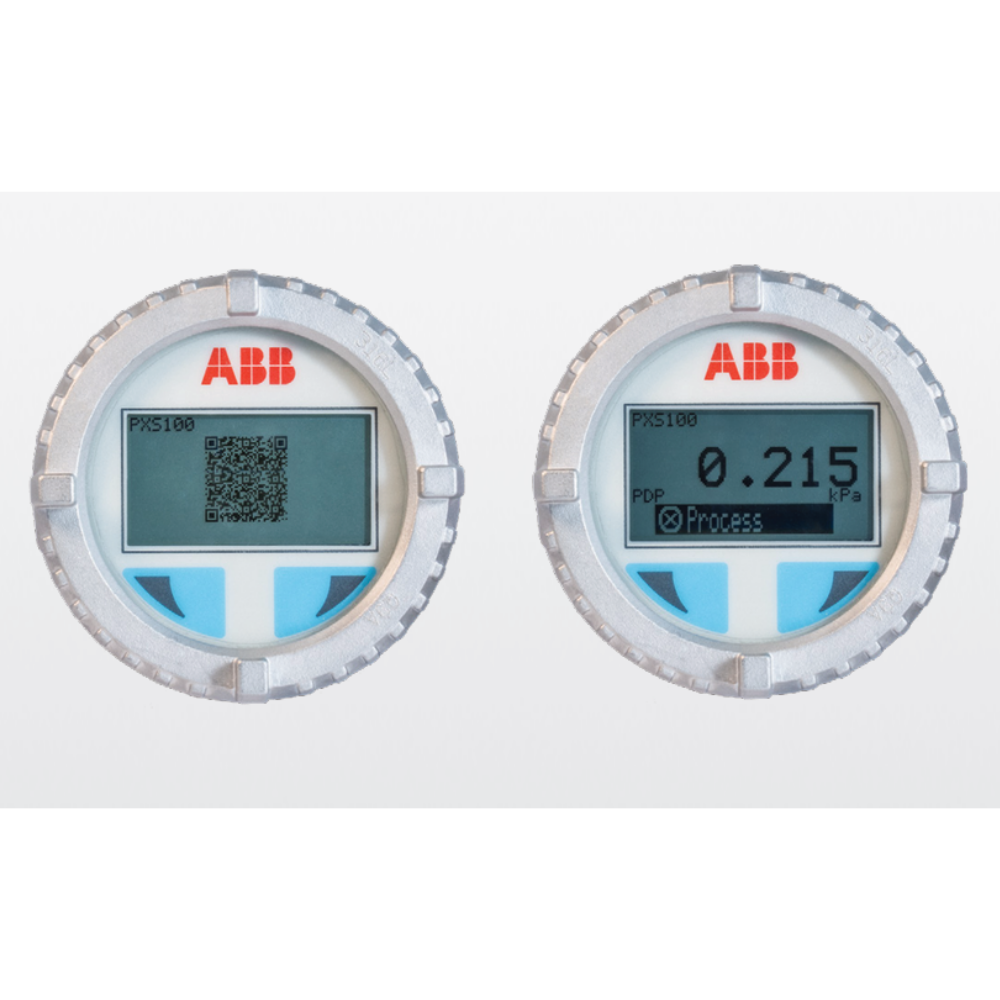

- Optional Digital Access Diagnostics using a QR code
Applications
Suitable for sanitary pressure monitoring in food and beverage production, dairy processing, liquid ingredient handling, hygienic tanks, and other process systems requiring hygienic design. Confirm process media compatibility, connection requirements, and applicable certifications for the selected configuration.
Why Choose the ABB PAF100?
The PAF100 combines hygienic design, high measurement accuracy, and flexible process connections to support reliable pressure monitoring in applications where cleanliness and material compatibility are essential.
Q1: What is the ABB PAF100 used for?
It measures absolute pressure in sanitary process applications, particularly in the food and beverage industries.
Q2: What is the accuracy of the PAF100?
The base accuracy is ±0.1%, with an optional accuracy of ±0.075%.
Q3: What is the measuring range of the PAF100?
The published span limits range from 3 mbar to 100 bar, depending on the selected sensor configuration.
Q4: Is the PAF100 suitable for food and beverage applications?
Yes. ABB offers 3-A, FDA, and EHEDG certifications for applicable configurations, with wetted materials aligned with EC Regulation 1935/2004 requirements.
Q5: Does the PAF100 support HART communication?
Yes. A 4–20 mA output with HART digital communication is available.
Q6: Does the PAF100 have a local display?
An optional backlit display with a two-button touch interface is available for local operation and configuration.
Q7: What is Diaflex technology?
Diaflex is ABB's anti-abrasion technology, available as an option for applications requiring additional protection against abrasion.
Q8: Can the PAF100 be used in vacuum applications?
ABB offers a specific treatment option designed to improve performance in demanding vacuum applications. Confirm suitability for the intended operating conditions.
Q9: Are hygienic process connections available?
Yes. Hygienic adapters support flexible installation while maintaining the required materials and certifications, subject to configuration.
Q10: How can I request a quotation for the ABB PAF100?
Provide the required pressure range, process medium, accuracy, hygienic connection type, output protocol, and certification requirements to help identify the appropriate model configuration.
