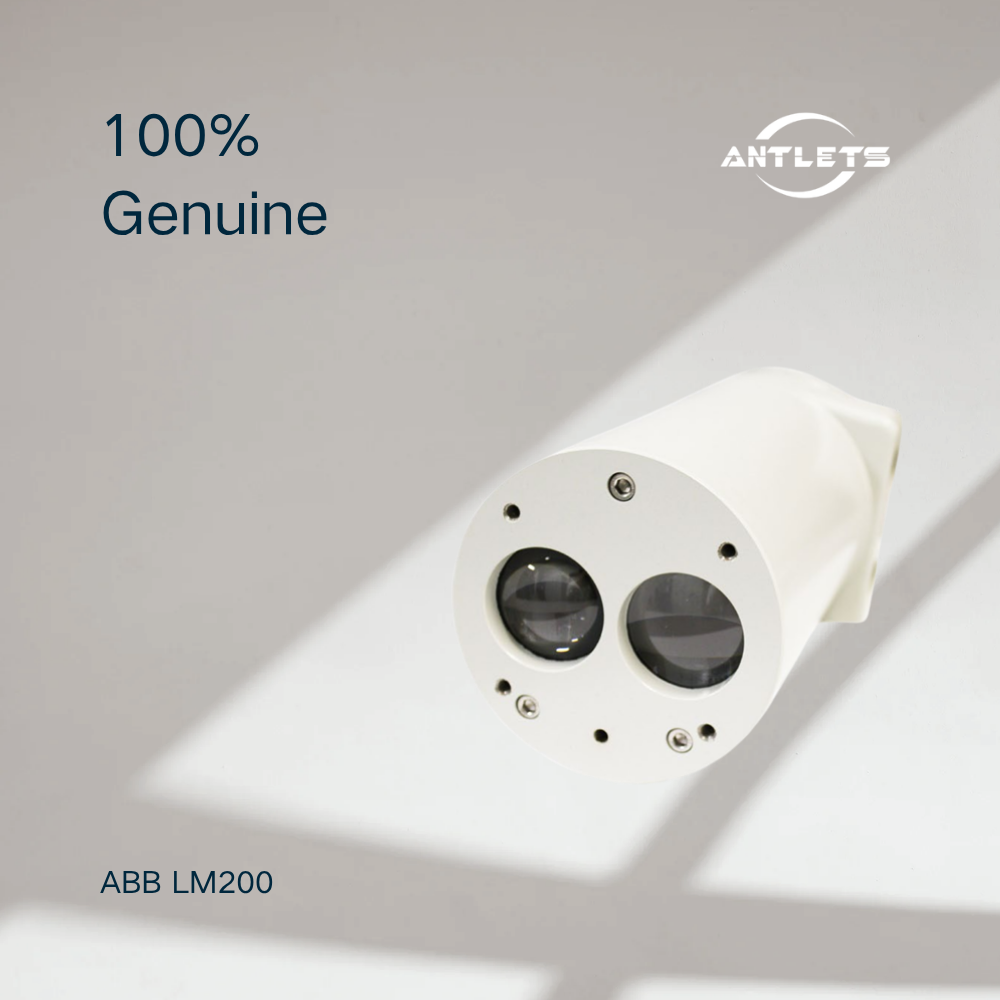

ABB LM200 Laser Level Transmitter

$1,500.00

The ABB LM200 provides non-contact level measurement up to 190 m and positioning measurement up to 400 m. Its pulsed laser technology enables accurate targeting of visible surfaces, including granular solids and opaque liquids, without direct contact with the material.

Designed for demanding industrial environments, the LM200 features a narrow laser beam, built-in aiming laser, automatic ranging, and no routine calibration requirement. Its 4–20 mA output and relay output options support continuous process monitoring and high- or low-level alarms.

🕑 Lead time: 8-10 weeks
Quantity:
Delivery & return Ask a Question
Visa PayPal Mastercard American Express

The ABB LM200 is a long-range laser level transmitter that calculates distance using laser pulse time-of-flight technology. It is suitable for continuous measurement of bulk solids and opaque liquids, as well as distance and position monitoring of moving equipment. Its narrow beam helps target surfaces in tall vessels and areas with internal structures.

Key Features

  • Non-contact, continuous level measurement
  • Measuring range up to 190 m for level applications and 400 m for positioning
  • Narrow laser beam with a visible aiming laser for alignment
  • Automatic ranging and no routine calibration requirement
  • Last Pulse Detection for light to moderate dust conditions
  • Optional heated optics to help prevent condensation
  • 4–20 mA analog output and relay output
  • Rugged aluminum enclosure; CSA, ATEX and IECEx ratings available depending on configuration

Applications

Suitable for silos, storage tanks, hoppers, bunkers, feed chutes, and crushers handling grain, coffee, coal, plastic pellets, mineral ores, powders, and other bulk solids. It can also measure opaque liquids and monitor the position of tripper cars, stackers, reclaimers, and cranes.

Why Choose the ABB LM200?

The LM200 combines long-range measurement, non-contact operation, and precise laser targeting to help reduce routine maintenance and simplify level monitoring in challenging industrial installations.

Q1: What is the ABB LM200 Laser Level Transmitter used for?

It is used for non-contact continuous level measurement of bulk solids and opaque liquids, as well as long-range distance and positioning applications.

Q2: What is the maximum measuring range of the LM200?

The range is up to 190 m (623 ft) for level applications and up to 400 m (1,312 ft) for positioning applications.

Q3: Can the LM200 measure powders and granular materials?

Yes. It can measure visible surfaces of materials such as grain, coal, coffee, plastic pellets, mineral ores, and powders.

Q4: Does the LM200 require routine calibration?

ABB lists the LM200 as requiring no routine calibration.

Q5: What output signals does the LM200 provide?

It provides a continuous 4–20 mA output and relay output for process control and level alarms. Confirm the specific output configuration when ordering.

Q6: Can the LM200 operate in dusty environments?

Its Last Pulse Detection feature supports measurement in light to moderate dust. Actual performance depends on dust conditions and target visibility.

Q7: Is the LM200 suitable for outdoor or condensation-prone installations?

The instrument has a rugged aluminum enclosure. Optional heated optics are available to help prevent condensation; suitability depends on the environmental conditions and selected configuration.

Q8: Is the LM200 available for hazardous areas?

CSA, ATEX, and IECEx ratings are available. Confirm the required certification and applicable installation conditions for your order.

Q9: How can I request a quotation for the ABB LM200?

Contact ProInstru with the required measuring range, material, vessel dimensions, output requirements, installation conditions, and hazardous-area requirements to help identify a suitable configuration.

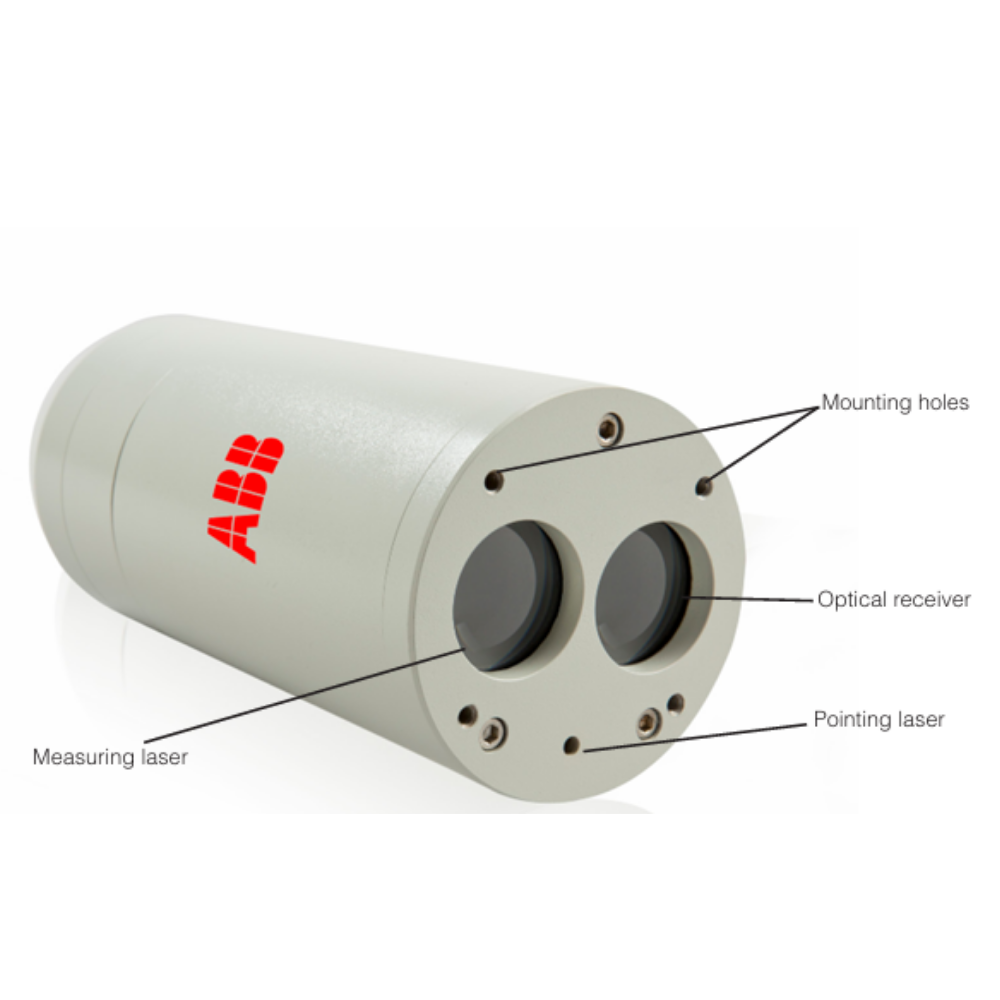

Laser Specifications & Safety Classification

Measuring Laser 905 nm near-infrared pulsed semiconductor laser;
Average power output: 12 mW, peak power output: 20 W;
Life expectancy: 25 years typical MTBF
Measuring Laser Safety Always on IEC 60825-1 Class 1M laser;
Safe for all conditions of use except when viewed through magnifying optics
Pointing Laser (Aiming) 635 nm red semiconductor laser;
3 mW continuous output
Pointing Laser Safety & Operation Intermittent IEC 60825-1 Class 3R laser;
Turns on at power-up for 2 minutes (reactivatable for commissioning via LCD2 communication device);
Safe when handled carefully with restricted direct beam viewing

Purge Air & Environmental Conditions

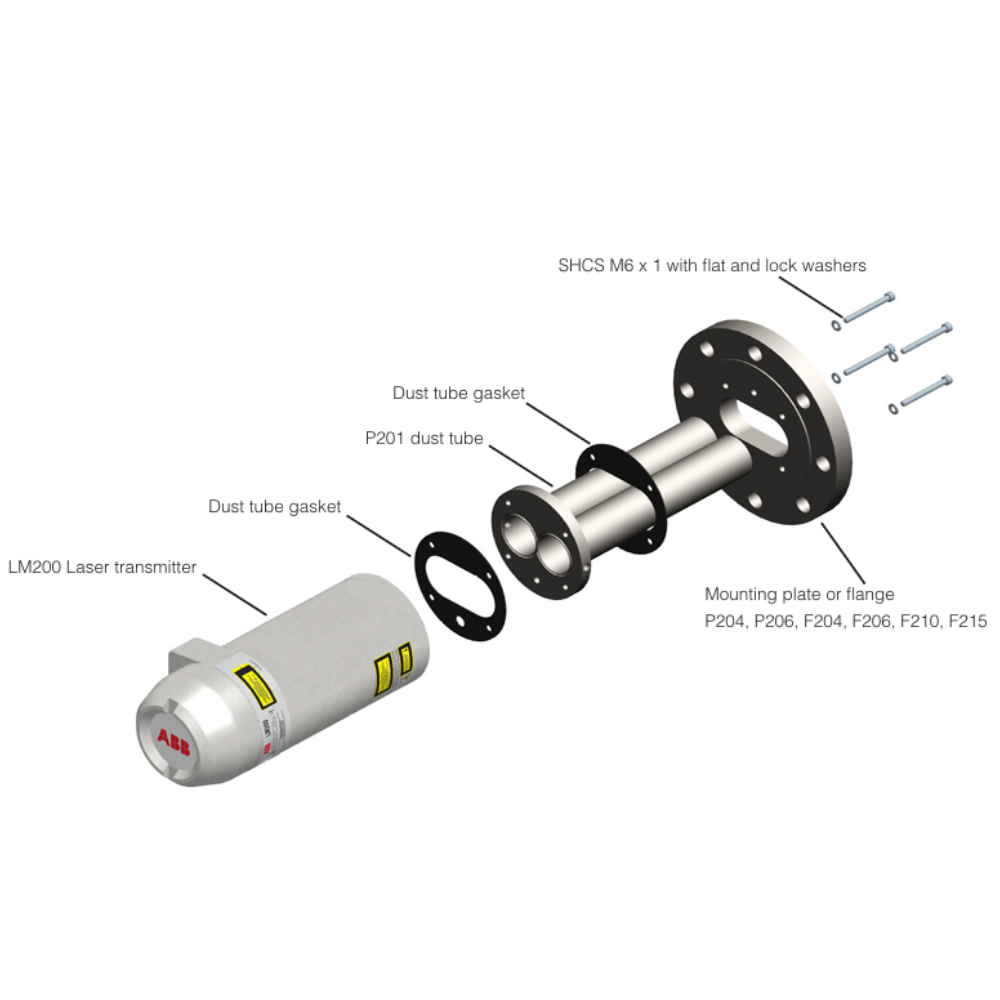

Purge Air (Dust Tubes) Must be oil-free dry air;
Recommended flow: 0.5 to 4 L/min;
Maximum pressure: 5.5 bar (80 psi)
Purge Fitting 1/8 in. NPT (connected to dust tubes)
Enclosure Rating IP66 / NEMA 4X (dust-proof, washable with high-pressure hose)
Hazardous Area Gas Rating Suitable for use in flammable gases or vapor hazardous locations
