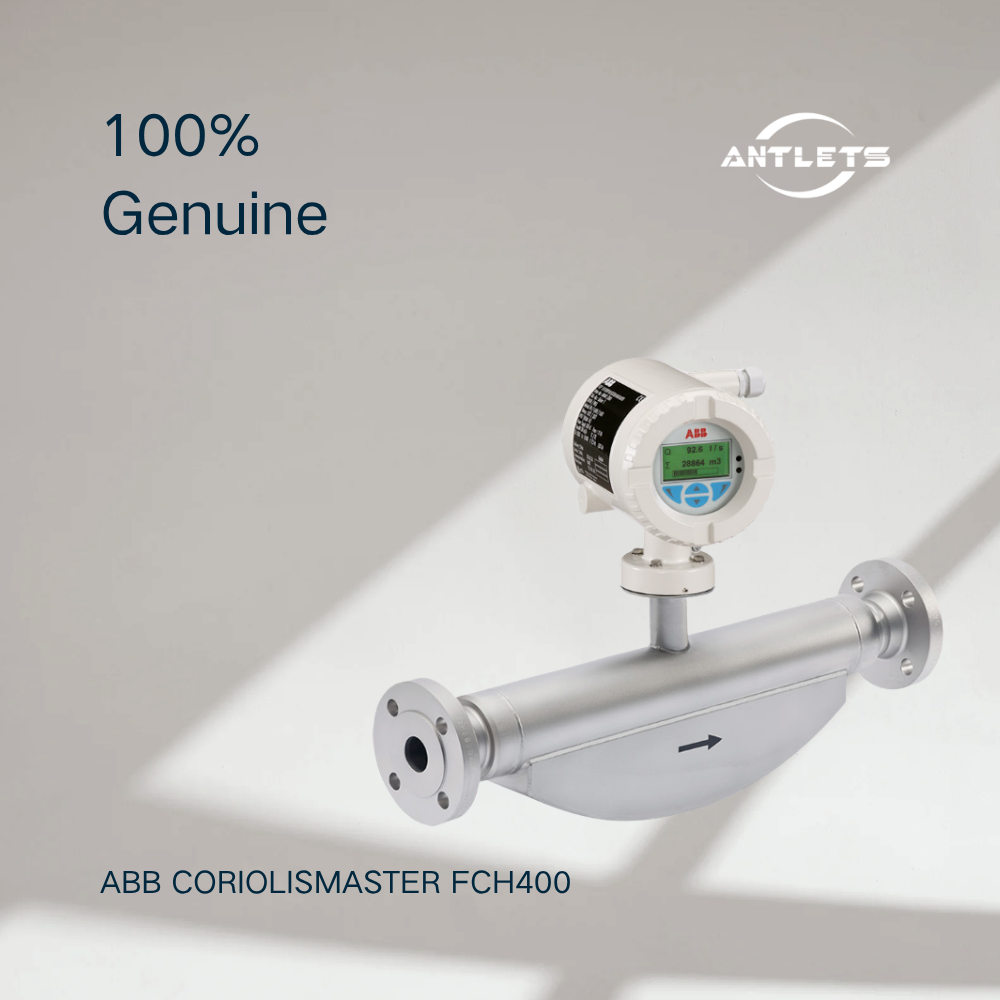

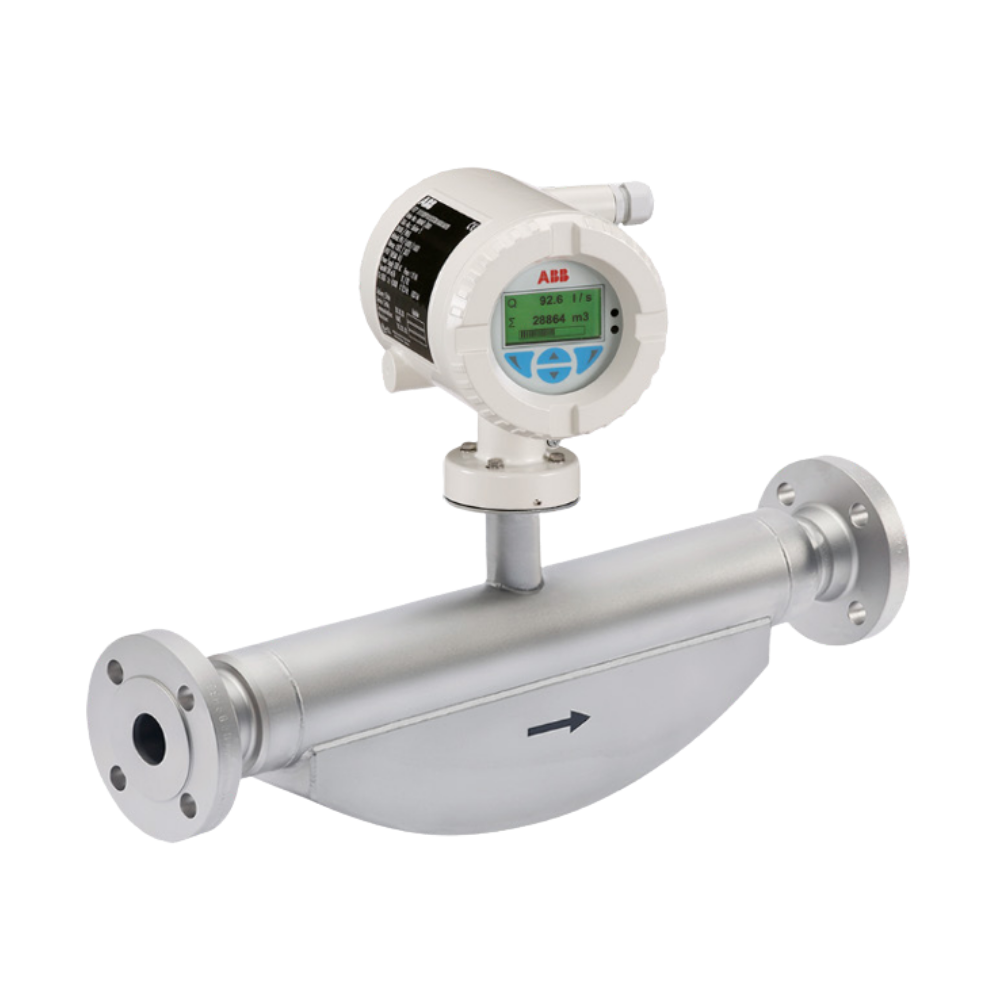

ABB CoriolisMaster FCH400 Coriolis Mass Flowmeter

$1,500.00

The ABB CoriolisMaster FCH400 Coriolis mass flowmeter provides multivariable measurement of mass flow, volume flow, density, and temperature for hygienic processes. Its compact design, low pressure drop, polished wetted surfaces, and EHEDG-certified hygienic design support reliable measurement and effective cleaning in sanitary applications.

The series includes FCH430 and FCH450 models with different accuracy and temperature capabilities. With modular I/O and communication options such as HART, PROFIBUS, Modbus, and Ethernet, the FCH400 can be integrated into a wide range of process automation systems, depending on configuration.

🕑 Lead time: 8-10 weeks
Quantity:
Delivery & return Ask a Question
Visa PayPal Mastercard American Express

ABB CoriolisMaster FCH400 Coriolis Mass Flowmeter Overview

The ABB CoriolisMaster FCH400 is a compact Coriolis mass flowmeter designed for hygienic applications. It combines multivariable measurement with polished wetted surfaces and hygienic design to support reliable operation in sanitary process environments.

Key Features

  • Measures mass flow, volume flow, density, and temperature
  • EHEDG-certified hygienic design
  • Polished 316L stainless steel wetted surfaces
  • Compact installation with low pressure drop
  • Up to five modular inputs and outputs
  • Built-in diagnostics and VeriMass verification
  • Multiple communication options for process integration

Applications

The FCH400 is suitable for food and beverage production, dairy processing, pharmaceutical manufacturing, biotechnology, and other hygienic processes requiring accurate flow and density measurement. Its hygienic design and cleanability features make it suitable for applications where product quality and sanitary operation are important.

Why Choose ABB CoriolisMaster FCH400?

The FCH400 combines multiple measurement functions with hygienic construction in one compact instrument. Its flexible communication options, built-in diagnostics, and cleanable wetted surfaces help support process control, product consistency, and maintenance efficiency.

Frequently Asked Questions

1. What is the ABB CoriolisMaster FCH400 used for?

The FCH400 is a hygienic Coriolis mass flowmeter used to measure mass flow, volume flow, density, and temperature in sanitary process applications.

2. Is the FCH400 suitable for food and beverage applications?

Yes. Its hygienic design, polished wetted surfaces, and EHEDG certification make it suitable for applicable food, beverage, and other sanitary processes.

3. What is the difference between the FCH430 and FCH450?

The FCH450 offers higher measurement accuracy and a wider medium-temperature range than the FCH430. The correct model depends on the required measurement performance and process conditions.

4. What materials are used for the wetted parts?

The FCH400 uses 316L stainless steel wetted materials. Confirm the exact material specification for the selected model and process connection.

5. Does the FCH400 require straight pipe runs?

No specific upstream or downstream straight-pipe lengths are required by the Coriolis measurement principle, helping simplify installation in compact systems.

6. What communication protocols are available?

Depending on configuration, options include HART, PROFIBUS DP/PA, Modbus RTU, PROFINET, Modbus TCP, EtherNet/IP, and Ethernet-APL-based communication.

7. What information is needed to select the right FCH400 model?

Provide the medium, flow range, operating temperature and pressure, required accuracy, process connection, hygienic requirements, and communication protocol.

8. How can I request a quotation for the ABB FCH400?

Contact our sales team with the required model, quantity, process conditions, and delivery destination to confirm the appropriate configuration and request a quotation.

Measurement Accuracy & Process Sizes

Nominal Sizes / Measuring Ranges DN 25 (1 in.) / 0 to 35,000 kg/h (77,162 lb/h);
DN 50 (2 in.) / 0 to 90,000 kg/h (198,416 lb/h);
DN 80 (3 in.) / 0 to 250,000 kg/h (551,156 lb/h)
Accuracy for Liquids FCH430:
Mass and volume: 0.4% o. r. / 0.25% o. r. / 0.2% o. r.
Density: 10 g/l

FCH450:
Mass: 0.15% o. r. / 0.1% o. r., volume: 0.15% o. r.
Density: 2 g/l or 1 g/l
Measuring Medium Temperature FCH430: -50 to 160 °C (-58 to 320 °F)
FCH450: -50 to 205 °C (-58 to 400 °F)
Wetted Materials 1.4404 / 1.4435 (316L)

Communications, Power Supply & Approvals

Communication HART;
PROFIBUS DP, PROFIBUS PA;
Modbus RTU;
Standard Ethernet: PROFINET, Modbus TCP, EtherNet/IP, Webserver;
Ethernet-APL: PROFINET, Modbus TCP, Webserver
Power Supply 11 to 30 V DC, 110/230 V AC;
Power over Ethernet (PoE)
Hygienic Approvals EHEDG and FDA material compliant
Ex Approvals & Certifications ATEX Zone 0/1/2, cFMus Div 1/2 and Zone 0/1/2;
NEPSI Zone 0/1/2;
Various other approvals
