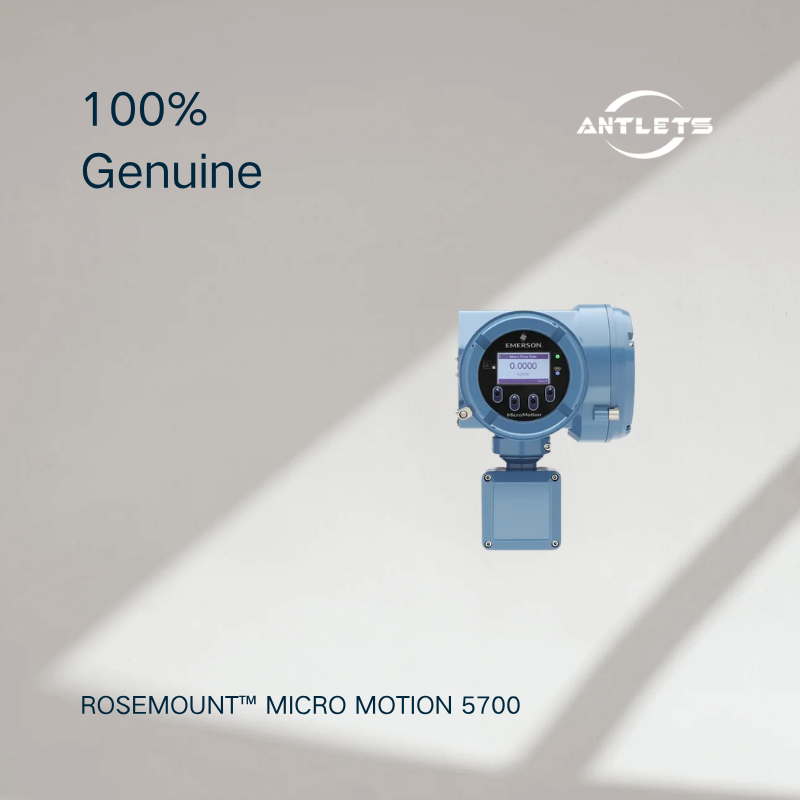

Rosemount™ Micro Motion 5700 Field-Mount Coriolis Transmitter

$5,000.00

The Micro Motion™ 5700 Field-Mount Coriolis Transmitter delivers advanced flow measurement processing and diagnostic capabilities when paired with a compatible Micro Motion Coriolis sensor. Designed for demanding industrial applications, it supports mass flow, volume flow, density, and temperature measurement, with flexible I/O configurations and communication options to support process monitoring and control.

With Smart Meter Verification™, an integrated data historian, and advanced process diagnostics, the 5700 helps improve measurement confidence, simplify troubleshooting, and capture valuable process information. Depending on the selected configuration, it supports up to five configurable I/O channels, Ethernet connectivity, and safety-related applications, making it suitable for custody transfer, meter proving, batching, and industrial process control.

🕑 Lead time: 4-6 weeks
Quantity:
Delivery & return Ask a Question
Visa PayPal Mastercard American Express

Product Introduction

The Micro Motion 5700 Field-Mount Coriolis Transmitter is an advanced transmitter designed to process measurement signals from compatible Micro Motion Coriolis meters. It combines flexible signal integration with advanced diagnostics and historical data recording to help operators monitor process performance and identify measurement issues.

Available configurations offer different I/O, communication, and certification options. Its field-mount housing supports installation in industrial environments, while Smart Meter Verification and zero verification functions help users assess meter condition and measurement integrity.

Key Features

  • Advanced Coriolis signal processing for reliable flow and density measurement
  • Multivariable measurement support for mass flow, volume flow, density, and temperature, depending on the connected sensor
  • Up to five configurable I/O channels on supported configurations
  • Integrated data historian for recording process events and measurement information
  • Smart Meter Verification™ for in-process meter integrity assessment
  • Zero verification to help confirm meter zero performance
  • Advanced process diagnostics for identifying flow disturbances and measurement conditions
  • Ethernet connectivity options, including EtherNet/IP, Modbus TCP, and PROFINET on supported Ethernet models
  • Local graphical display option for convenient field configuration and monitoring
  • SIL 2/SIL 3 capability on specified certified configurations

Suitable Applications

  • Oil and gas processing
  • Chemical and petrochemical production
  • Custody transfer measurement
  • Meter proving and calibration workflows
  • Filling, dosing, and batching
  • Liquid and gas flow monitoring
  • Density and concentration monitoring
  • Food and beverage processing
  • Process control and optimization
  • Safety-related measurement systems

Technical Highlights & Selection Considerations

  • Sensor compatibility: Confirm that the transmitter version is compatible with the selected Micro Motion Coriolis sensor and its wiring arrangement.
  • Mounting: Field-mount configurations are available in different housing materials. Integral mounting compatibility depends on the sensor and transmitter version.
  • I/O configuration: The number and type of inputs and outputs depend on the selected model and licensed options.
  • Communication interfaces: EtherNet/IP, Modbus TCP, and PROFINET are available on supported Ethernet versions. Verify the required protocol before ordering.
  • Process variables: Available measurements and calculated variables depend on the connected sensor, application software, and configuration.
  • Diagnostics: Smart Meter Verification and other diagnostic functions require compatible equipment and configuration.
  • Safety certification: SIL 2/SIL 3 suitability applies to specified versions. Confirm the exact certification and follow the applicable safety manual.
  • Custody transfer: Verify the approvals, measurement standards, and configuration required by the applicable regulatory authority.
  • Power supply: Confirm the voltage and power requirements for the selected transmitter version before installation.

Frequently Asked Questions

Q1: What is the Micro Motion 5700 transmitter used for?

It processes signals from compatible Coriolis meters to support flow measurement, process monitoring, diagnostics, and control in industrial applications.

Q2: Which process variables does it support?

Depending on the connected sensor and configuration, it can support mass flow, volume flow, density, temperature, and additional application-specific calculated variables.

Q3: What is Smart Meter Verification™?

Smart Meter Verification is a diagnostic function that evaluates the condition and integrity of compatible meter components without requiring the meter to be removed from the process.

Q4: Does the Micro Motion 5700 support Ethernet communication?

Yes. Ethernet versions support protocols including EtherNet/IP, Modbus TCP, and PROFINET. Availability depends on the selected transmitter version.

Q5: Can the Micro Motion 5700 be used for custody transfer?

It is designed to support demanding applications such as custody transfer and meter proving. Confirm that the complete meter system and selected configuration meet the relevant approval and regulatory requirements.

Q6: Is the Micro Motion 5700 suitable for safety instrumented systems?

Specified configurations support SIL 2 and SIL 3 applications. Verify the certification of the exact model and assess the complete safety instrumented function before use.

Architecture, Ethernet & Advanced Communications

Ethernet Architecture Dual native Ethernet ports supporting EtherNet/IP, Modbus TCP, and PROFINET in one device; optional pre-installed M12 industrial connectors
Configurable I/O Version Up to 5 licensable channels: 1 to 3 x 4-20 mA outputs, 1 to 3 x pulse/frequency outputs, 1 to 3 x discrete outputs, 1 to 2 x discrete inputs, 1 x mA input, and RS-485 Modbus RTU
Intrinsically Safe (IS) Version Up to 4 licensable IS channels (mA/HART, mA, frequency/pulse); hardware SIL readback loop to independently verify the milliamp output
Fieldbus & Wireless Options FOUNDATION™ Fieldbus, PROFIBUS™ PA, WirelessHART® (via 775 THUM adapter), and point-to-point Wi-Fi display option for zero-wire configuration
Local Display & Controls High-resolution graphical backlit display, 4-button optical switches (through-glass operation), diagnostic status LED, and multi-language support (Chinese, English, German, French, etc.)
Universal Service Port External standard USB service port for diagnostic downloads and configuration via ProLink III

Power, Mounting, Safety & Advanced Software

Power Supply Self-switching universal AC/DC: 85 to 250 VAC (50/60 Hz, 6 W typical, 11 W max) or 18 to 100 VDC (6 W typical, 11 W max)
Housing & Mounting Polyurethane-painted aluminum or 316L stainless steel enclosure;
Integrally mounted to Micro Motion ELITE (CMFS), F-Series, H-Series, R-Series, or T-Series;
Remotely mounted to any 4-wire or 9-wire Coriolis sensor
Advanced Applications Smart Meter Verification (SMV) Professional, Discrete batch control, API petroleum measurement with temperature volume correction, Concentration measurement, Advanced Phase Measurement (two-phase flow), and Piecewise Linearization for gas applications
Safety Compliance SIL 2 certified single use and SIL 3 capable multiple use safety applications per IEC 61508
Hazardous Location Approvals Class I, Division 1 & Division 2; ATEX / IECEx Zone 1 and Zone 2 certifications
