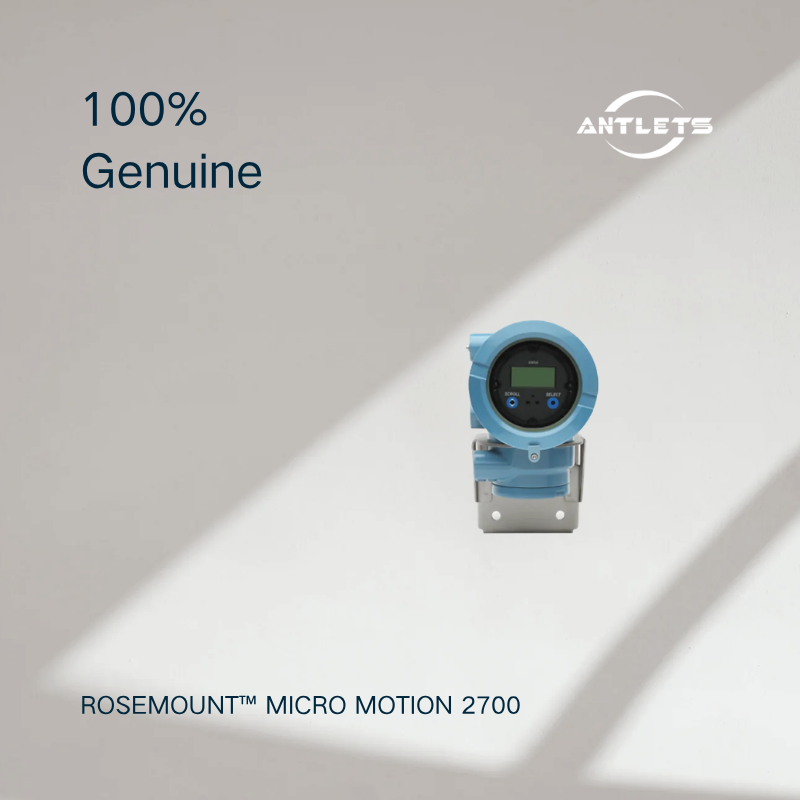

The Micro Motion 2700 is a multivariable transmitter designed for compatible Micro Motion Coriolis flow and density meters. Its MVD digital signal processing technology enables measurement of multiple process variables, including mass flow, volume flow, density, and temperature, with additional calculated variables available for supported applications.
Designed for demanding industrial environments, the transmitter provides diagnostic functions for challenging flow conditions and supports both integral and remote mounting arrangements. Optional WirelessHART connectivity provides access to additional process and diagnostic information, while Smart Meter Verification helps assess meter integrity without removing the meter from service.
Key Features
- Multivariable measurement: Mass flow, volume flow, density, and temperature with compatible sensors
- MVD digital processing for reliable measurement and responsive process monitoring
- Flexible mounting: Integral or remote installation, depending on configuration
- Smart Meter Verification™ for in-process meter integrity assessment
- Entrained gas diagnostics to help evaluate measurement performance under challenging flow conditions
- Batching diagnostics for applications involving empty-to-full flow transitions
- Concentration and net flow measurement for supported applications
- Optional WirelessHART™ connectivity for additional process and diagnostic data
- Optional Local Operator Interface (LOI) for convenient field access
- SIL 2/SIL 3 capability for specified safety-related configurations
Suitable Applications
- Oil and gas production
- Chemical and petrochemical processing
- Liquid batching and loading
- Custody transfer measurement
- Density and concentration monitoring
- Net oil measurement
- Marine fuel consumption monitoring
- Industrial flow and process control
- Applications involving entrained gas
- Safety-related flow measurement
Technical Highlights & Selection Considerations
- Sensor compatibility: Confirm compatibility with the exact Micro Motion Coriolis sensor model and required wiring arrangement.
- Measured variables: Available process variables depend on the connected sensor and selected software or configuration.
- Mounting arrangement: Integral and remote mounting options are available, but compatibility depends on the sensor and installation requirements.
- Output configuration: Analog, frequency, and discrete outputs vary by model and I/O option. Confirm the required interfaces before ordering.
- Communication: WirelessHART™ requires compatible equipment and configuration; it should not be assumed to be included as standard.
- Local interface: The Local Operator Interface is optional on supported configurations.
- Safety certification: SIL 2/SIL 3 capability applies to specified configurations. Verify the relevant certification and suitability for the complete safety instrumented function.
- Custody transfer: Confirm that the complete meter system has the required metrology approvals for the intended application.
- Fuel consumption applications: Adaptive Consumption Measurement software is available for supported differential fuel consumption applications.
Frequently Asked Questions
Q1: What is the Micro Motion 2700 used for?
It processes signals from compatible Coriolis meters to provide multivariable flow and density measurements for industrial monitoring and control.
Q2: Which variables can it measure?
Depending on the connected sensor and configuration, it supports mass flow, volume flow, density, temperature, concentration, and net flow-related calculations.
Q3: What is Smart Meter Verification™?
It is a diagnostic function that evaluates the integrity and performance of a compatible Coriolis meter while it remains installed in the process.
Q4: Can the Micro Motion 2700 handle entrained gas applications?
Yes. Its MVD digital processing includes diagnostics intended to help assess performance in entrained-gas applications. Actual suitability depends on the fluid conditions and connected sensor.
Q5: Does the Micro Motion 2700 support WirelessHART™?
Yes. WirelessHART connectivity is available with compatible equipment and configuration, allowing additional process and diagnostic information to be accessed without additional signal wiring.
Q6: Is the Micro Motion 2700 suitable for safety instrumented systems?
Specified configurations support SIL 2/SIL 3 applications. Confirm the certification for the exact model and validate the complete safety function against applicable requirements.
